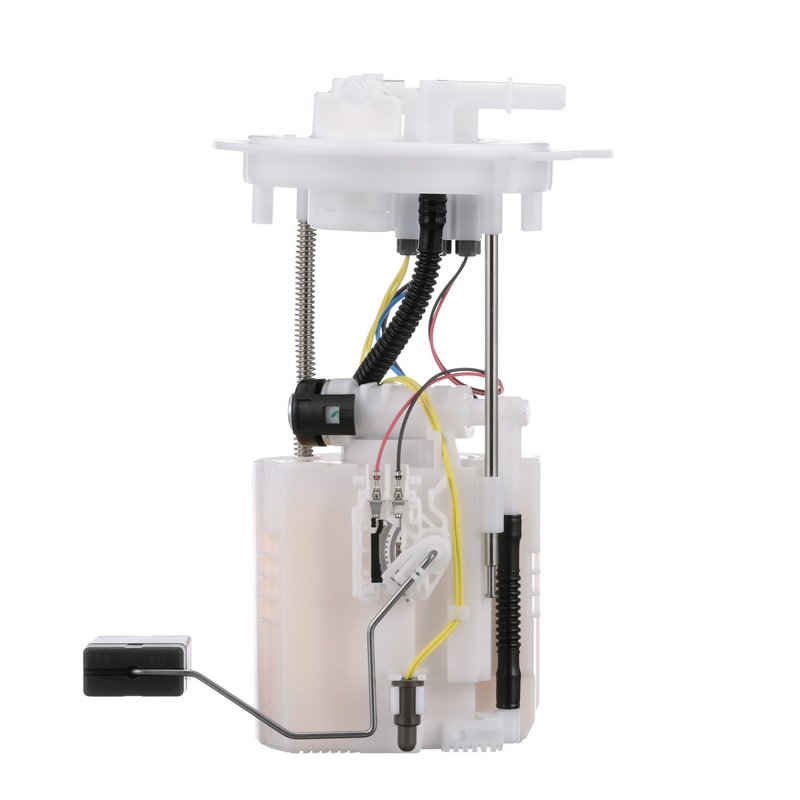

Carter P77017M Fuel Pump Module Assembly

Overview of Carter Fuel Pump Module Assembly P77017M

The Carter Fuel Pump Module Assembly P77017M is designed specifically for Nissan Altima models, providing reliable fuel delivery with integrated components for efficient operation. This electric fuel pump module includes a fuel sending unit and is engineered to meet the exact specifications required for optimal performance.

• Fuel sending unit included for accurate fuel level readings
• Electric pump type with a minimum flow rating of 27
• Housing made from durable acetal material with a width of 114 mm and height of 105 mm
• Top mount diameter of 138.2 mm for precise fitment
• Quick connect outlet with 9.7 mm outside diameter
• Includes strainer and gasket/seal for secure installation
• Wiring harness length of 300 mm with 6 wires, 18 gauge, and white rectangular male connector
• Blade and spade terminal types with 6 male terminals
• Specific fitment for Nissan Altima models

Detailed Product Description

The Carter P77017M fuel pump module assembly is a vehicle-specific component designed to replace the original fuel pump module in Nissan Altima vehicles. Constructed with an acetal housing, it ensures durability and resistance to fuel and environmental factors. The module features a built-in fuel sending unit, allowing the vehicle’s fuel gauge to provide accurate readings. The electric pump delivers a consistent minimum flow rating of 27, supporting efficient fuel delivery to the engine.

This assembly includes a quick connect outlet port with a 9.7 mm outside diameter, facilitating straightforward fuel line connections. The wiring harness is 300 mm long, equipped with six 18-gauge wires terminating in a white rectangular male connector with blade and spade terminals, ensuring compatibility with the vehicle’s electrical system. A strainer is included to prevent debris from entering the fuel system, and a gasket or seal is provided to maintain a secure, leak-free installation.

Compatible Vehicles and Applications

This fuel pump module assembly is specifically compatible with Nissan Altima models, designed to meet the exact OEM specifications for fit and function. It is intended for use in fuel delivery systems requiring an electric pump module with integrated fuel level sensing.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Corrects inaccurate fuel gauge readings due to faulty sending units
• Replaces worn or damaged fuel pump modules to restore proper fuel pressure
• Prevents fuel contamination with included strainer
• Eliminates fuel leaks with included gasket or seal

Installation Notes and Tips

Installation of the Carter P77017M fuel pump module assembly requires removal of the fuel tank and careful handling of fuel lines and electrical connectors. Ensure the wiring harness length and connector type match the vehicle’s specifications. The included gasket or seal should be properly seated to prevent leaks. Mounting hardware is not included, so retain original fasteners or source compatible replacements. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet industry standards for durability and performance. This assembly is constructed with high-quality materials such as acetal housing and includes essential components like the fuel sending unit and strainer. While specific warranty details are not provided here, Carter products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
