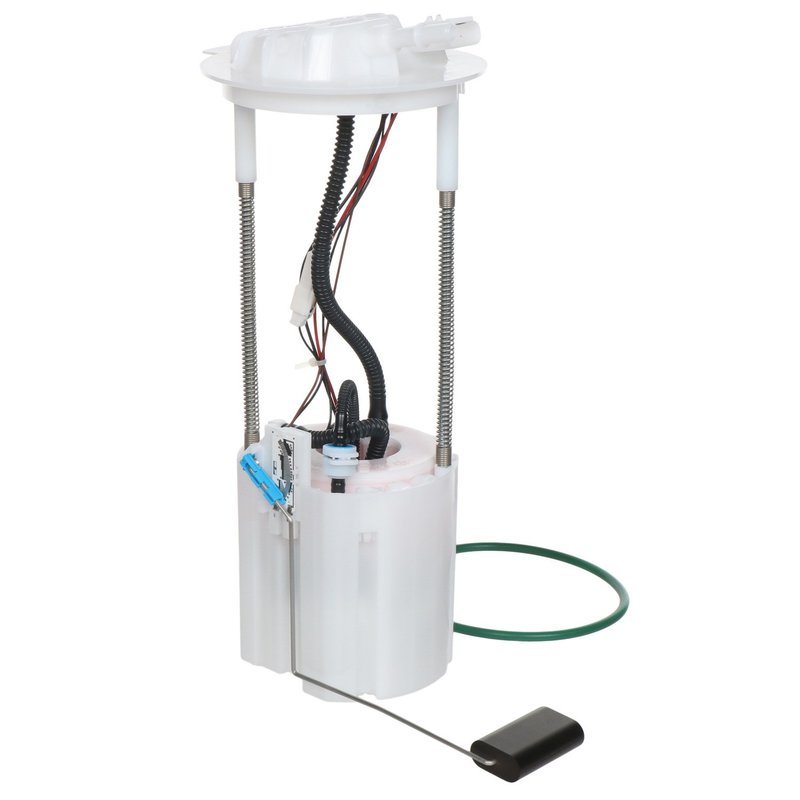

Carter P77018M Fuel Pump Module Assembly
| Brand | Carter P77018M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Outlet Outside Diameter | 9.5 |
| Housing Width | 129 |
| Wiring Harness Length | 300.0 |
| Wire Gauge Measurement | 18 |
| Connector Color | White |
| Terminal Type | Blade |
| Terminal Type | Spade |
| Mounting Hardware Included | No |
| Height | 125 |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 5 |
| Grade Type | Regular |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Top Mount Diameter | 152.0 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Wire Harness Included | No |
| Minimum Flow Rating | 39 |
| Pump Type | Electric |
| Minimum Pressure | 58.0 |
| Fits | Ram · 5 vehicles |
OE fit, form, and function. Built for a specific fit with premium replacement performance.
Fuel sending unit included. Adds integrated fuel level sensing in one assembly.
Plastic housing. Lightweight construction with a sealed design for dependable service.
Cross-references Airtex Fuel Pumps E7270M, Delphi FG1354 and Spectra Premium SP7118M for the same application. See all 11.
Carter P77018M Fuel Pump Module Assembly
The Carter P77018M fuel pump module assembly is a specific-fit replacement for select Ram 1500 applications. It combines the electric pump, fuel sending unit, and strainer in one assembly to restore fuel delivery and tank-level reporting in a single service part.
Key Features
- Specific-fit fuel pump module assembly for 2011-2012 and 2014 Ram 1500
- Electric 12V pump with a minimum pressure rating of 58.0
- Minimum flow rating of 39 for consistent fuel delivery
- Fuel sending unit included for accurate fuel level feedback
- Strainer and gasket/seal included
- Quick-connect outlet with one outlet and port inlet
- White female connector with 5 wires, 4 terminals, and blade/spade terminal types
- Plastic housing with 129 mm housing width and 125 mm height
Detailed Description
Built for OE-style fit, form, and function, the Carter P77018M is engineered for direct replacement service on Ram 1500 fuel system repairs. This module assembly is designed to support proper fuel pressure, fuel transfer, and sender operation, making it a practical choice when replacing a worn or failing in-tank unit. The P77018M also cross-references Airtex E7270M and Delphi FG1354 for the same application.
Compatible With 2011-2012 Ram 1500 and 2014 Ram 1500, this Carter fuel pump module assembly is a focused solution for vehicles showing fuel delivery or fuel level issues. The included strainer and seal help complete the repair, while the quick-connect outlet and specific-fit design simplify matching the original system layout. The Carter P77018M is also referenced by part number P77018M for catalog and search accuracy.
Common Repair Applications
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Inaccurate fuel gauge readings from a failing sending unit
- Fuel starvation under load or at higher demand
- Noise or wear associated with an aging in-tank pump module
Installation Notes and Tips
Verify tank access, connector style, outlet type, and module dimensions before installation. This assembly does not include mounting hardware, lock ring, fuel filter, or wire harness. Confirm the vehicle application against the listed Ram 1500 fitment and inspect the tank opening, seal surface, and electrical connector condition during service.
Quality Assurance
Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system designs. The P77018M reflects that approach with a complete module layout intended for direct replacement service on the specified Ram 1500 applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Ram | 1500 | 5.7L | V8 | N/A | — |
| 2012 | Ram | 1500 | 3.7L | V6 | N/A | — |
| 2012 | Ram | 1500 | 5.7L | V8 | N/A | — |
| 2011 | Ram | 1500 | 3.7L | V6 | N/A | — |
| 2011 | Ram | 1500 | 5.7L | V8 | N/A | — |
