Carter P77036M Fuel Pump Module Assembly

Brand Carter 6206
Bearing Inside Diameter 1.181
Bearing Inside Diameter 29.997
Bearing Outside Diameter 2.441
Bearing Outside Diameter 62.001
Length 0.63
Length 16.002
Fits —44 vehicles

OE fit, form, and function. Specific-fit fuel pump module assembly for straightforward replacement.

Complete module design. Includes the fuel sending unit, gasket, and strainer for a more complete repair.

Electric pump. 12V operation with 60.0 minimum pressure and 40 minimum flow rating.

Cross-references Airtex Fuel Pumps E4005M, Bosch 66121 and Delphi FG1057 for the same application. See all 14.

$301.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $301.36
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

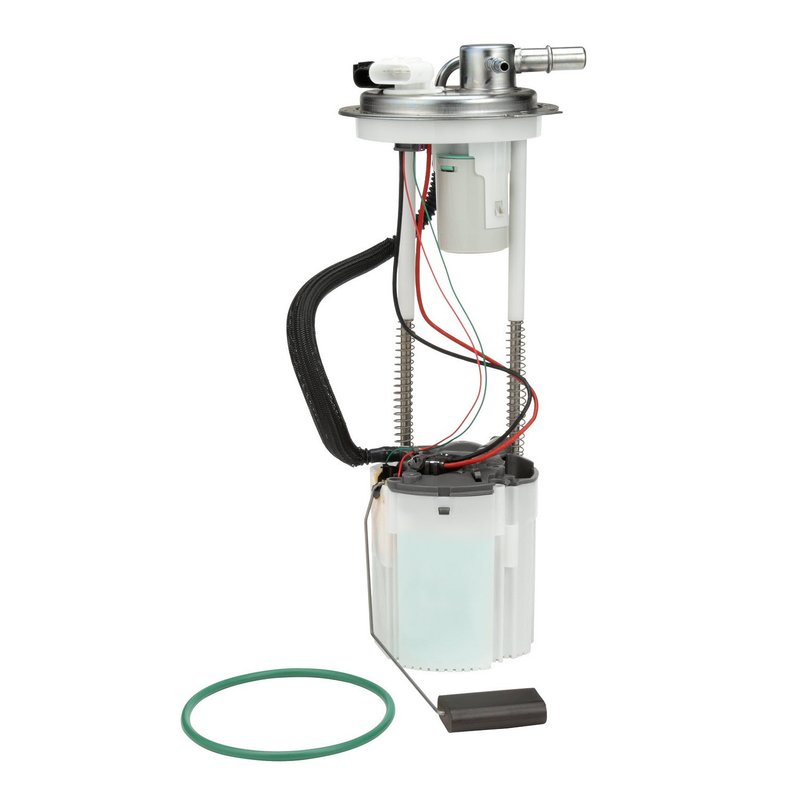

Carter P77036M Fuel Pump Module Assembly

The Carter P77036M fuel pump module assembly is a specific-fit replacement built for OE fit, form, and function. It includes the fuel sending unit, strainer, and gasket/seal, making it a focused solution for fuel delivery service on select Chevrolet Silverado 1500 and GMC Sierra 1500 applications.

Key Features

  • Electric fuel pump module assembly with 12V operation
  • Specific fit for direct application matching
  • Fuel sending unit included for fuel level signal restoration
  • Strainer and gasket/seal included
  • Quick connect outlet with 3/8 in. outlet fitting thread size
  • White female connector with oval shape and blade terminals
  • Acetal housing construction
  • Minimum flow rating of 40 and minimum pressure of 60.0

Detailed Description

Carter P77036M is a fuel pump module assembly engineered for select 2010-2013 Chevrolet Silverado 1500 and 2010-2013 GMC Sierra 1500 trucks. It is built as a specific-fit replacement with the fuel sending unit included, helping restore fuel delivery and fuel level reporting in one service part. The module uses a quick connect outlet, 4-wire configuration, and a 12V electric pump design for direct replacement service. This part number, P77036M, is also referenced in cross-application listings such as Bosch 66121 for the same vehicle coverage.

Compatible With 2010-2013 Chevrolet Silverado 1500 and 2010-2013 GMC Sierra 1500. Check prior to installation, as some vehicles may require wiring harness 888-601.

What This Part Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine stalling from inconsistent pump output
  • Incorrect fuel gauge readings from a worn sending unit
  • Fuel pressure loss that affects drivability
  • Fuel system service needs on Silverado 1500 and Sierra 1500 trucks

Installation Notes and Tips

Verify connector style, outlet type, and tank module dimensions before installation. This assembly uses a white female connector, blade terminals, and a quick connect outlet; confirm the vehicle wiring and fuel line connections match the original setup. For 2010-2013 Chevrolet Silverado 1500 and GMC Sierra 1500 applications, review the note about possible wiring harness 888-601 requirement before beginning the repair.

Quality Assurance

Carter positions this fuel systems program around OE fit, form, and function with broad vehicle coverage and problem-solving features. The P77036M follows that approach with application-specific construction and included service components for a direct replacement fuel pump module assembly.

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
