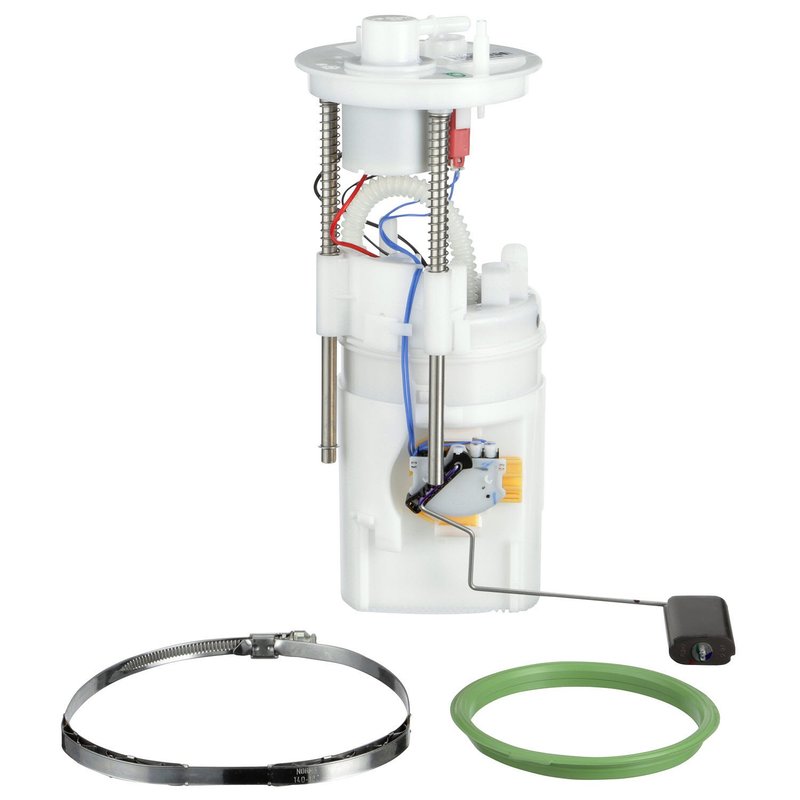

Carter P77063M Fuel Pump Module Assembly - Right

Brand Carter P77063M
Position Right
Outlet Outside Diameter 9.85
Wiring Harness Length 140.0
Wire Gauge Measurement 18
Connector Color White
Terminal Type Pin
Mounting Hardware Included No
Height 164
Universal Or Specific Fit Specific
Wire Quantity 4
Grade Type Regular
Connector Shape Oval
Gasket Or Seal Included Yes
Housing Material Acetal
Terminal Quantity 4
Top Mount Diameter 122.4
Lock Ring Included No
Connector Gender Female
Terminal Gender Male
Inlet Type Port
Outlet Type Quick connect
Outlet Quantity 1
Fuel Filter Included No
Wire Harness Included No
Minimum Flow Rating 30
Pump Type Electric
Minimum Pressure 87.0
Fits BMW · 12 vehicles

OE fit, form, function. Specific-fit fuel pump module assembly with premium replacement engineering.

Acetal housing. Built with a durable housing material for dependable fuel system service.

Quick-connect outlet. Simplifies fuel line connection for cleaner, faster installation.

Cross-references Delphi FG1599, 16 11 7 207 599 and 2920934 for the same application. See all 9.

$344.17Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $344.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P77063M Fuel Pump Module Assembly

The Carter P77063M fuel pump module assembly is a specific-fit electric fuel delivery component for BMW X5 and BMW X6 applications. Built for OE fit, form, and function, it supports consistent fuel supply with the correct connector, outlet, and sealing features for the listed vehicles.

Key Features

  • Specific-fit fuel pump module assembly for select BMW applications
  • Electric pump type with a minimum pressure rating of 87.0
  • Minimum flow rating of 30 for fuel delivery support
  • Acetal housing material for durable in-tank construction
  • Female oval connector with 4 terminals and 4-wire configuration
  • Gasket or seal included for service-ready installation
  • Quick-connect outlet type with one outlet and port inlet type
  • Wiring harness length: 140.0; wire gauge: 18

Detailed Description

Carter P77063M is engineered as a direct replacement fuel pump module assembly for BMW X5 and BMW X6 models listed below. It features a specific fit, a white female connector, male pin terminals, and an oval connector shape to match the original fuel system layout. The module uses an acetal housing and includes a gasket or seal, helping support proper tank sealing and dependable fuel transfer. This part cross-references Delphi FG1599 for the same application. The Carter P77063M is a practical choice when servicing BMW X5 fuel delivery or replacing a BMW X6 fuel pump module assembly with OE-style fitment.

Vehicle Fitment

  • Fits 2015 BMW X5, Right, To 08/01/2014
  • Fits 2012-2014 BMW X5, Right
  • Fits 2011 BMW X5, Right, From 09/01/2010
  • Fits 2008-2014 BMW X6, N/A

Common Issues This Part May Address

  • Hard starting caused by weak fuel delivery
  • Engine hesitation from inconsistent fuel pressure
  • No-start conditions related to a failing in-tank pump module
  • Fuel starvation under load from reduced flow
  • Fuel system faults tied to worn electrical connections or pump wear

Installation Notes and Tips

Verify the vehicle’s build date and position before ordering, especially for BMW X5 right-side applications with date-specific coverage. Confirm connector style, outlet type, and seal condition during replacement. Clean the tank opening and inspect the fuel lines and electrical terminals before installing the new module. Follow factory service procedures for fuel system depressurization and post-installation leak checks.

Quality Assurance

Carter markets this fuel systems program around OE fit, form, and function, with vehicle-specific coverage and problem-solving design features. The P77063M is built to align with the original application requirements for BMW X5 and BMW X6 fuel delivery service.

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2015BMWX5—3.0LL6RightTo 08/01/2014
2014BMWX5—3.0LL6Right—
2014BMWX6—3.0LL6N/A—
2013BMWX5—3.0LL6Right—
2013BMWX6xDrive35i3.0LL6N/A—
2012BMWX5—3.0LL6Right—
2012BMWX6xDrive35i3.0LL6N/A—
2011BMWX5—3.0LL6RightFrom 09/01/2010
2011BMWX6xDrive35i3.0LL6N/A—
2010BMWX6xDrive35i3.0LL6N/A—
2009BMWX6—3.0LL6N/A—
2008BMWX6—3.0LL6N/A—
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Delphi — FG159916 11 7 207 5992920934A30510C0725MD18113558TGE8960MM2521024SP8960M
