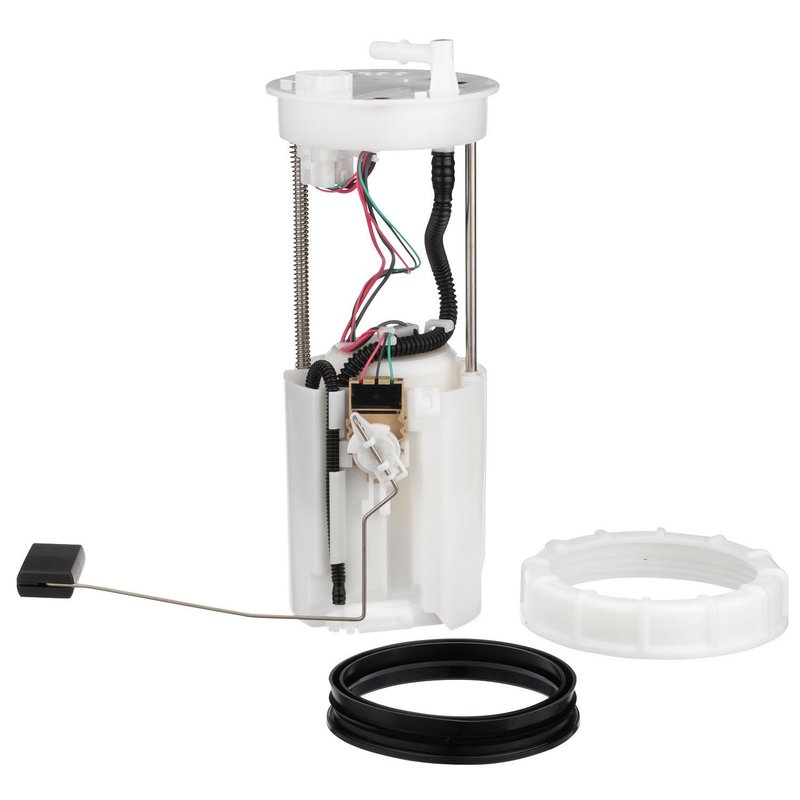

Carter P77084M Fuel Pump Module Assembly

Brand Carter P77084M
Fuel Sending Unit Included Yes
Outlet Outside Diameter 9.5
Housing Width 109.5
Wiring Harness Length 180.0
Wire Gauge Measurement 18
Connector Color White
Terminal Type Spade
Mounting Hardware Included No
Height 134
Universal Or Specific Fit Specific
Wire Quantity 5
Grade Type Regular
Connector Shape Trapezoid
Gasket Or Seal Included Yes
Housing Material Acetal
Terminal Quantity 5
Top Mount Diameter 121.8
Lock Ring Included Yes
Connector Gender Male
Terminal Gender Male
Strainer Included Yes
Inlet Type Port
Outlet Type Quick connect
Outlet Quantity 1
Fuel Filter Included No
Wire Harness Included No
Minimum Flow Rating 25
Pump Type Electric
Minimum Pressure 64.0
Voltage 12v
Fits Honda · 2 vehicles

OE fit, form, and function. Built for a specific fit with problem-solving features.

Electric fuel pump module. Combines the pump, sending unit, strainer, and seal in one assembly.

Acetal housing. Durable construction with a quick-connect outlet and included lock ring.

Cross-references Delphi FG1553, 17045-SZA-A31 and 2920998 for the same application. See all 10.

$536.97Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $536.97
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P77084M Fuel Pump Module Assembly

The Carter P77084M fuel pump module assembly is a specific-fit replacement for select Honda Pilot applications. Built for OE fit, form, and function, it combines the fuel pump, sending unit, strainer, gasket/seal, and lock ring details needed for a direct-service fuel system repair.

  • Specific-fit fuel pump module assembly for 2012-2013 Honda Pilot with 5 pin connector
  • Electric 12V pump with a minimum pressure rating of 64.0 and minimum flow rating of 25
  • Fuel sending unit included for accurate fuel level signal restoration
  • Strainer, gasket or seal, and lock ring included
  • Quick connect outlet with one outlet port and port-style inlet
  • 5-wire harness layout with white trapezoid connector, male terminals, and spade terminal type
  • Acetal housing construction with 109.5 housing width and 134 height

Designed for direct replacement service, the Carter P77084M supports fuel delivery and fuel level reporting in the tank module assembly. It is a practical choice for a 2012-2013 Honda Pilot fuel pump module replacement when the original unit shows signs of wear, inconsistent pressure, or inaccurate sender operation. This part cross-references Delphi FG1553 for the same application.

Common Repair Applications

  • Hard starting caused by weak fuel pressure
  • Engine hesitation or stalling from inconsistent fuel delivery
  • Fuel gauge readings that do not match tank level
  • Noise or wear associated with an aging in-tank pump module
  • Service replacement for a Honda Pilot fuel pump module assembly

Installation Notes and Tips

Verify connector style, 5-pin configuration, and outlet connection before installation. Confirm the tank opening, top mount diameter, and seal surfaces are clean before seating the module. Replace any damaged fuel lines or electrical terminals during service, and follow factory procedures for depressurizing the fuel system before removal. Fits 2012-2013 Honda Pilot, N/A.

Quality Assurance

Carter Fuel Systems focuses on OE-style fit, form, and function with vehicle-specific coverage and problem-solving design features. The P77084M is built as a direct replacement fuel pump module assembly for confirmed Honda Pilot applications.

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2013HondaPilot3.5LV6with 5 Pin Connector
2012HondaPilot3.5LV6with 5 Pin Connector
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Delphi — FG155317045-SZA-A312920998A30522B16112421TGC0753ME9108MM3528639P77053MSP8967M
