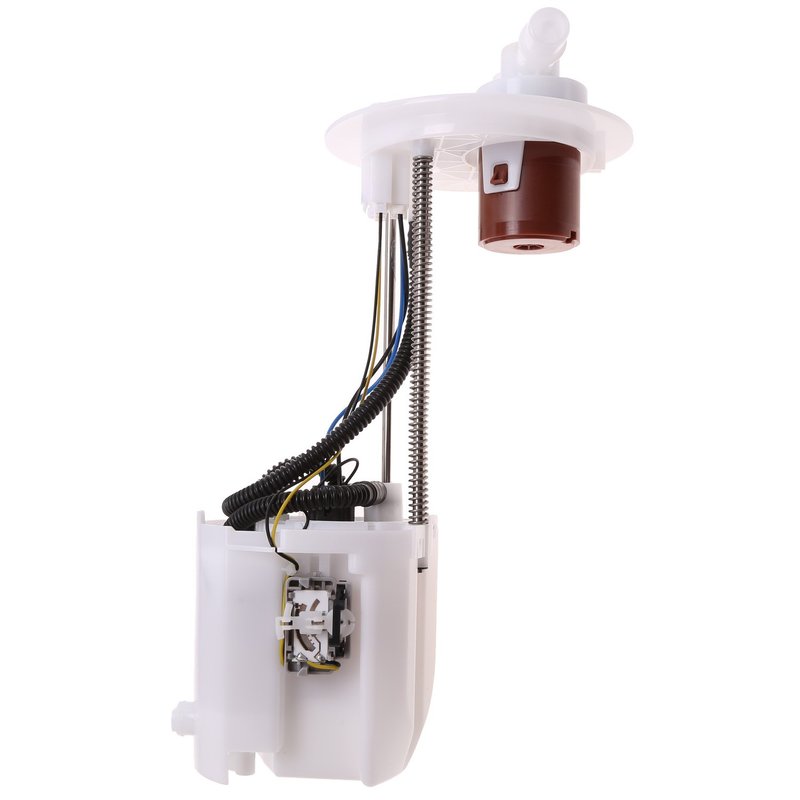

Carter P77246M Fuel Pump Module Assembly

Carter Fuel Pump Module Assembly for Toyota Yaris and Scion xD

The Carter P77246M fuel pump module assembly is a specific-fit replacement for select Toyota and Scion applications. Built as an electric fuel pump module with a gasket or seal included, it is made for direct replacement service on 2006-2018 Toyota Yaris and 2008-2014 Scion xD models.

Key Features

• Specific-fit fuel pump module assembly for direct application matching
• Electric pump type for in-tank fuel delivery service
• Gasket or seal included for installation support
• Regular grade replacement part for everyday repair use
• OE-style fit, form, and function focus from Carter Fuel Systems
• Cross-references Spectra Premium SP9031M for the same application

Product Details

Carter P77246M is a fuel pump module assembly engineered for select Toyota Yaris and Scion xD vehicles. It is built as a specific-fit electric module to replace the original fuel delivery unit with the correct fitment profile for the listed applications. Carter positions this fuel systems program around OE fit, form, and function, along with broad vehicle coverage and problem-solving design features. This part cross-references Spectra Premium SP9031M for the same application.

Compatible With 2006-2018 Toyota Yaris and 2008-2014 Scion xD, this module supports fuel delivery service where the original pump assembly has failed or is no longer maintaining proper operation. The Carter P77246M is also identified by interchange part numbers including 23220-21210 and A46635.

Common Replacement Uses

• Restoring fuel delivery after a worn or failed in-tank pump
• Addressing hard-start or no-start conditions tied to fuel pressure loss
• Correcting intermittent fuel supply issues during acceleration or load changes
• Replacing a noisy or inconsistent electric fuel pump module
• Servicing a leaking module seal where the original gasket has deteriorated

Installation Notes and Tips

Verify the vehicle year, make, and model before ordering. This part is listed for specific-fit applications only, and the included gasket or seal should be inspected during installation to confirm proper seating. Follow factory service procedures for fuel system depressurization, electrical connector handling, and tank access. Confirm the original part number and connector style against the vehicle before installation.

Quality Assurance

Carter’s fuel systems program is built around OE-style fit, form, and function for the listed applications. The P77246M is a direct replacement fuel pump module assembly for select Toyota Yaris and Scion xD models, with application coverage supported by interchange references and vehicle-specific fitment data.
