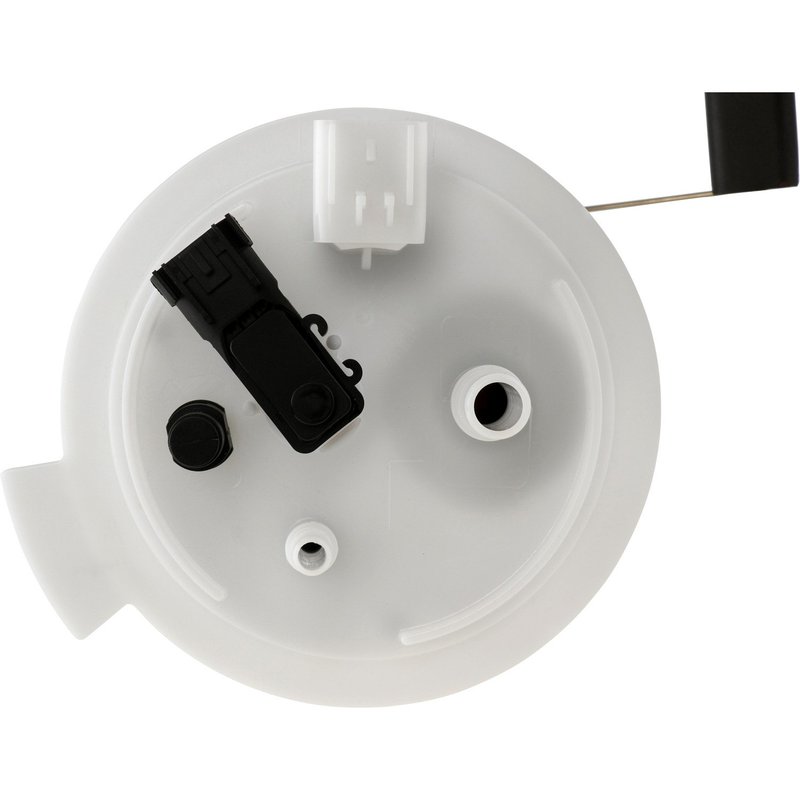

Carter P77320M Fuel Pump Module Assembly - Front
| Brand | Carter P77320M |
|---|---|
| Position | Front |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Gasket Or Seal Included | Yes |
| Maximum Flow Rating | 100 |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Fuel Filter Included | No |
| Minimum Flow Rating | 90 |
| Pump Type | Electric |
| Maximum Pressure | 60 |
| Minimum Pressure | 50 |
| Fits | Ford · 47 vehicles |
OE-style replacement. Built for specific-fit service with premium fit, form, and function.
Electric pump design. Delivers steady fuel flow with a 50-60 psi operating range.
Service-ready connections. Includes a quick-connect outlet and strainer inlet for replacement work.
Cross-references Delphi FG1479, Spectra Premium SP2471M and A47023 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly Overview
The Carter P77320M fuel pump module assembly is a specific-fit replacement built for vehicles that need OE-style fit, form, and function. It uses an electric pump design with a quick-connect outlet and strainer inlet for a clean, direct fuel delivery setup.
Compatible with Ford E-350 Super Duty, Ford E-150, and Ford E-250 applications, this module is built around the requirements of the listed front-mounted fuel system configurations. The included gasket or seal supports a proper service replacement, and the pressure and flow range align with common OE-style fuel system demands.
Key Features
- Specific-fit fuel pump module assembly for direct application matching
- Electric pump design with 50-60 psi pressure range
- 90-100 flow rating for steady fuel delivery
- Quick-connect outlet and strainer inlet for service-friendly connections
- Gasket or seal included for replacement service
Fitment Details
- Fits 2011-2019 Ford E-350 Super Duty, front, with 3 tube ports.
- Fits 2011-2014 Ford E-150, front, with 3 tube ports.
- Fits 2011-2014 Ford E-250, front, with 3 tube ports.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from inconsistent fuel pressure
- Fuel starvation from a failing pump module
- Service issues related to worn seals or connections
Installation Notes and Tips
Confirm the vehicle’s front fuel system configuration and 3 tube port layout before installation. Verify connector style, outlet type, and pressure requirements against the original unit to ensure proper replacement. The Carter P77320M should be matched to the listed applications only.
Quality Assurance
Carter’s fuel systems program focuses on OE fit, form, and function, along with application coverage and problem-solving design features. This part cross-references Delphi (e.g., FG1479) for the same application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2019 | Ford | E-450 Super Duty | 6.8L | V10 | — | Front | with 3 Tube Ports |
| 2018 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2018 | Ford | E-450 Super Duty | 6.8L | V10 | — | Front | with 3 Tube Ports |
| 2017 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2017 | Ford | E-450 Super Duty | 6.8L | V10 | — | Front | with 3 Tube Ports |
| 2016 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2016 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2016 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2016 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2015 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2015 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2015 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2015 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2014 | Ford | E-150 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2014 | Ford | E-150 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2014 | Ford | E-250 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2014 | Ford | E-250 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2014 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2014 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2014 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2014 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2013 | Ford | E-150 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2013 | Ford | E-150 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2013 | Ford | E-250 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2013 | Ford | E-250 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2013 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2013 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2013 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2013 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2012 | Ford | E-150 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2012 | Ford | E-150 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2012 | Ford | E-250 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2012 | Ford | E-250 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2012 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2012 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2012 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2012 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2011 | Ford | E-150 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2011 | Ford | E-150 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2011 | Ford | E-250 | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2011 | Ford | E-250 | 4.6L | V8 | — | Front | with 3 Tube Ports |
| 2011 | Ford | E-350 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2011 | Ford | E-350 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports |
| 2011 | Ford | E-450 Super Duty | 6.8L | V10 | GAS | Front | with 3 Tube Ports; Auxiliary Fuel Port |
| 2011 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
| 2010 | Ford | E-450 Super Duty | 5.4L | V8 | FLEX | Front | with 3 Tube Ports |
