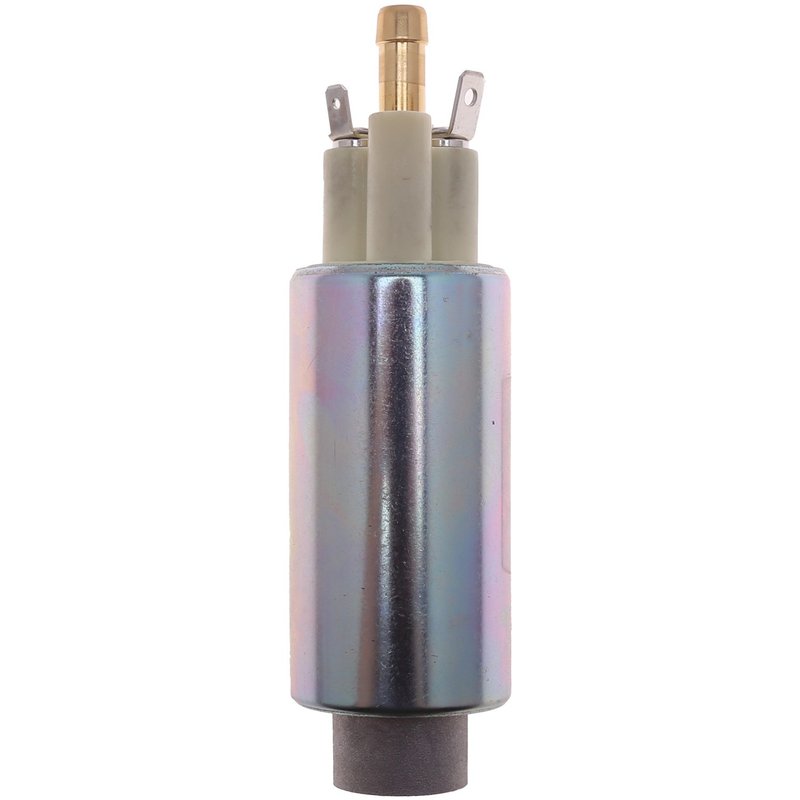

Carter P90094 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Ford and Mazda Vehicles

The Carter P90094 electric fuel pump is designed specifically for select Ford and Mazda models, including the Aerostar, B2300, B3000, B4000, Explorer, and Ranger. This in-tank fuel pump ensures consistent fuel delivery with a 12-volt electric motor and a hose barb inlet and outlet for secure fuel line connections.

• Electric fuel pump with 12V operation
• In-tank design for direct fuel delivery
• Fuel pump inlet and outlet type: hose barb
• Compatible with Ford Aerostar, Explorer, Ranger and Mazda B2300, B3000, B4000
• Terminal type: male spade connectors, 2 terminals
• Includes gasket or seal for installation
• Minimum flow rating of 18.0 GPH and minimum pressure of 51.0 PSI
• Specific fitment for reliable performance

Product Details and Specifications

The Carter P90094 is an internal electric fuel pump designed for in-tank installation. It features a hose barb inlet and outlet, allowing for secure hose connections to the fuel system. The pump operates on a 12-volt negative ground electrical system and uses male spade terminals for wiring connections. With a length of 128 mm, it fits precisely in the fuel tank assemblies of compatible Ford and Mazda models. This pump does not include a fuel sending unit, regulator, mounting hardware, or wiring harness, but it does come with a gasket or seal to ensure a proper fit and prevent leaks. The pump delivers a minimum flow of 18 gallons per hour and maintains a minimum pressure of 51 PSI, meeting the fuel delivery requirements for the specified vehicles.

Compatible Vehicles and Applications

• Ford Aerostar
• Ford Explorer
• Ford Ranger
• Mazda B2300
• Mazda B3000
• Mazda B4000

This fuel pump is designed to replace the original equipment pump in these specific models, ensuring proper fuel flow and pressure for optimal engine performance.

Common Issues Addressed by the Carter P90094

• Intermittent or no fuel delivery causing engine stalling
• Low fuel pressure affecting engine performance
• Fuel pump noise or failure due to wear
• Fuel leaks from worn seals or fittings
• Electrical connection problems with damaged terminals

Installation Notes and Tips

Installation requires removal of the fuel tank to access the in-tank pump assembly. Ensure the gasket or seal included with the pump is properly seated to prevent leaks. Use appropriate tools to connect the male spade terminals securely, and verify the negative ground wiring configuration matches the vehicle’s electrical system. Since mounting hardware and wiring harness are not included, reuse existing components or source compatible parts as needed. Always follow vehicle-specific service manuals for safe and correct installation procedures.

Quality Assurance and Warranty

Carter fuel pumps are manufactured to meet OEM specifications for fit, form, and function. The P90094 model undergoes rigorous testing to ensure consistent fuel flow and pressure. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer’s website for exact warranty terms.
