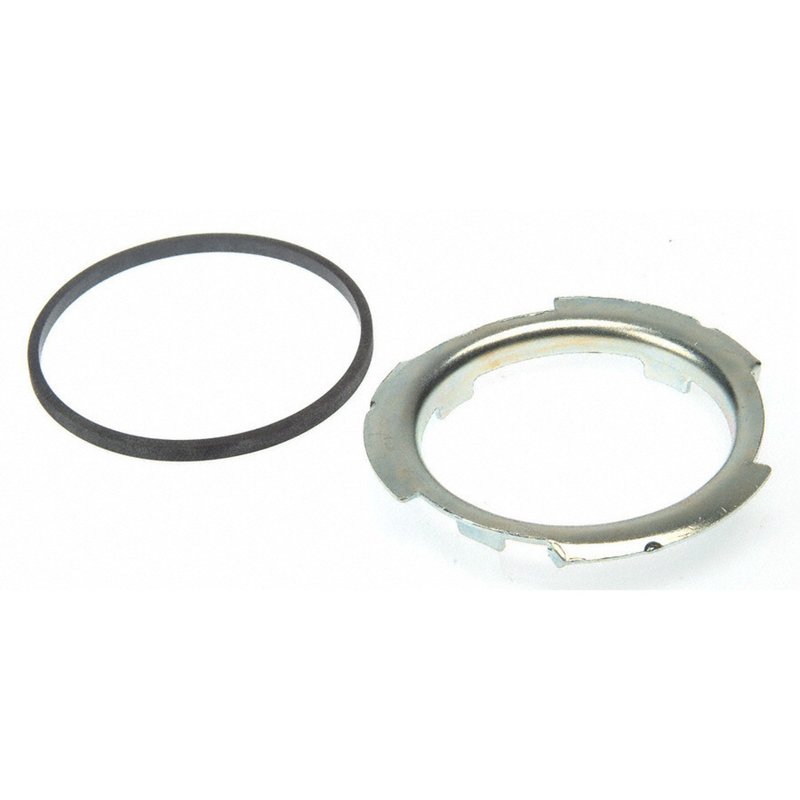

Carter TLR3 Fuel Tank Lock Ring

Carter TLR3 Fuel Tank Lock Ring

The Carter TLR3 fuel tank lock ring is a steel replacement part built for secure fuel tank module retention and a precise OE-style fit. It includes a gasket or seal and is finished in silver for a clean, corrosion-resistant appearance.

Key Features

• Steel construction for durable fuel system service
• Silver finish
• Inside diameter: 2.125 in.
• Outside diameter: 2.625 in.
• Gasket or seal included
• OE fit, form, and function focus from Carter Fuel Systems

Detailed Description

Built for fuel tank service applications, this Carter fuel tank lock ring helps secure the fuel pump module or sending unit at the tank opening. The TLR3 is sized with a 2.125-inch inside diameter and 2.625-inch outside diameter, and its steel construction supports dependable retention in demanding underbody environments. Carter’s OE-style engineering approach emphasizes correct fit and vehicle coverage, making this part a practical choice for Ford fuel system repairs.

Compatible With 1980-1984 Ford E-250 Econoline, 1980-1984 Ford E-350 Econoline, 1980-1984 Ford E-350 Econoline Club Wagon, 1980-1984 Ford F-250, 1980-1984 Ford F-350, 1980-1984 Ford E-250 Econoline Club Wagon, 1980 Ford E-100 Econoline, 1985-1989 Ford Bronco, and 1987-1993 Ford Mustang. This part cross-references Airtex Fuel Pumps (e.g., LR2002) and Delphi (e.g., FA10009) for the same application.

Common Repair Uses

• Replacing a worn or damaged fuel tank lock ring
• Restoring a secure seal at the fuel pump module opening
• Addressing fuel odor caused by a poor tank-top seal
• Correcting fitment issues during fuel pump or sender service
• Repairing corrosion-related damage at the tank retaining ring

Installation Notes and Tips

Verify the tank opening dimensions before installation and confirm the ring matches the application’s required outside diameter. Inspect the included gasket or seal and the tank flange for damage, rust, or debris before assembly. Proper alignment during installation helps the ring seat evenly and maintain a secure fuel system seal.

Quality Assurance

Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The TLR3 is built to meet the dimensional and material requirements expected for fuel tank lock ring replacement service.
