Centric 105.10010 Disc Brake Pad Set - Front or Rear

Overview of Centric Posi-Quiet Ceramic Disc Brake Pad Sets

The Centric Posi-Quiet Ceramic Disc Brake Pad Set (Part Number 105.10010) offers reliable braking performance for a wide range of vehicles including Acura, Ford, Honda, and Toyota models. Designed with ceramic friction material and integrated pad wear sensors, this set ensures consistent stopping power and safety.

• Ceramic friction material for quieter braking and reduced dust
• Includes 4 disc brake pads with 2 pads featuring 1 integrated wear sensor
• Pad shims included to minimize noise and vibration
• Prepared for pad wear sensor installation
• Integrally molded friction material attachment for durability

Product Line Details: Centric Posi-Quiet Ceramic Disc Brake Pad Sets

The Centric Posi-Quiet Ceramic Disc Brake Pad Sets line focuses on delivering quiet, smooth braking with ceramic friction technology. This product line is engineered to reduce brake dust and noise while maintaining effective stopping power. The inclusion of pad shims and wear sensor compatibility enhances both performance and safety, making it suitable for vehicles such as the Chevrolet Camaro, Honda Civic, and Subaru WRX STI.

Technical Specifications and Features

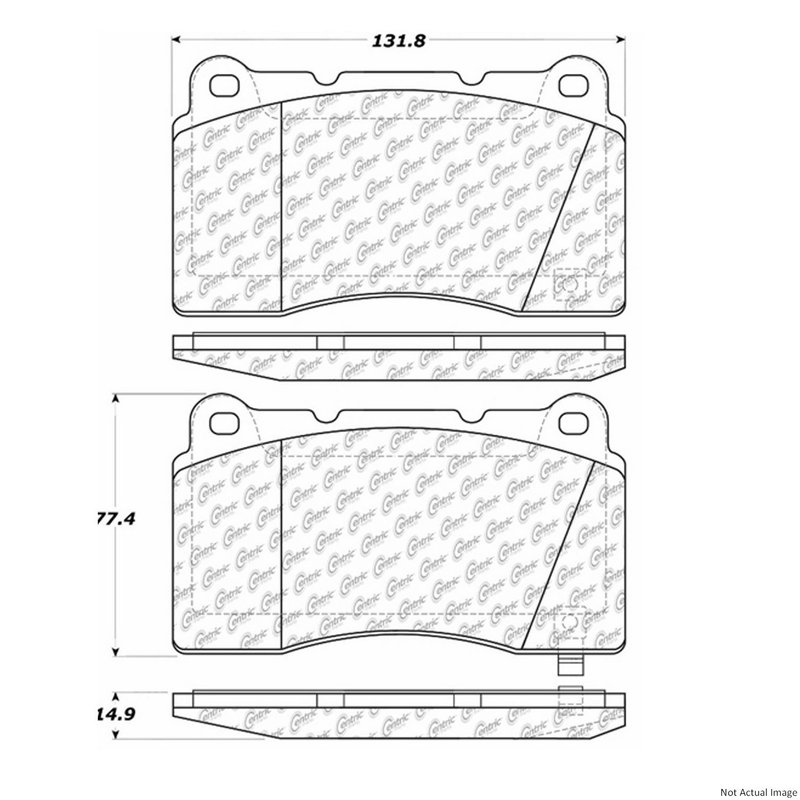

This disc brake pad set features ceramic friction material that is integrally molded to the backing plate, providing consistent friction and long-lasting performance. The pads measure approximately 3.047 inches (77.4 mm) in height, 5.189 inches (131.8 mm) in width, and 0.587 inches (14.9 mm) in overall thickness for both inner and outer pads. The set weighs about 5 lbs (2.27 kgs) and includes pad shims to reduce noise and vibration during braking. Two of the pads are equipped with one wear sensor, and the set is prepared for easy sensor installation, enhancing vehicle safety monitoring.

Compatible Vehicles and Applications

• Acura TL, TSX
• Buick Regal, Regal Sportback
• Cadillac CTS, CT6, ATS, STS, XTS
• Chevrolet Camaro, Corvette, G8
• Ford Mustang
• Honda Civic
• Hyundai Genesis Coupe
• Mitsubishi Lancer
• Pontiac G8
• Saab 9-5
• Subaru BRZ, Impreza, WRX STI
• Tesla Model S
• Toyota 86
• Volvo S60, V70, XC

Common Issues Addressed by This Brake Pad Set

• Brake noise and vibration during stopping
• Excessive brake dust buildup on wheels
• Uneven pad wear causing reduced braking efficiency
• Failure to alert driver of worn brake pads
• Inconsistent braking performance under normal driving conditions

Installation Notes and Tips

Installation of the Centric Posi-Quiet Ceramic Disc Brake Pad Set (105.10010) requires removal of the existing brake pads and inspection of the rotors for wear. Note that mounting hardware is not included and should be reused or replaced as needed. The included pad shims should be installed to reduce noise and vibration. Ensure the pad wear sensor is properly connected to the vehicle’s monitoring system. Follow manufacturer torque specifications and safety procedures during installation.

Quality Assurance and Warranty

Centric brake pads are manufactured to meet or exceed OEM standards for fit, form, and function. The ceramic friction material and integrally molded design contribute to consistent braking performance and durability. This product is backed by Centric’s quality assurance processes. For warranty details, refer to Centric’s official documentation or contact the manufacturer directly.
