Centric 106.09181 Disc Brake Pad Set - Front

Overview of Centric Posi-Quiet Extended Wear Brake Pads

The Centric Posi-Quiet Extended Wear Semi-Metallic Disc Brake Pad Sets (Part Number 106.09181) are engineered for reliable braking performance on select BMW models. Designed to provide consistent stopping power and extended durability, these semi-metallic pads are a practical choice for drivers seeking dependable brake components.

• Semi-metallic friction material for balanced performance and wear
• Includes mounting hardware and pad shims for complete installation
• Prepared for pad wear sensor but does not include sensor
• Integrally molded friction material attachment for durability
• Set includes four disc brake pads (inner and outer)
• Compatible with multiple BMW models including 335d, 335i, 335is, 335i xDrive, 335xi, 545i, 760Li, X1, and Z4

Product Line Details: Centric Posi-Quiet Extended Wear Semi-Metallic Disc Brake Pad Sets

The Centric Posi-Quiet Extended Wear Semi-Metallic Disc Brake Pad Sets are part of Centric's Posi-Quiet line, which focuses on delivering extended wear life and quiet operation. This product line utilizes semi-metallic friction material integrally molded to the backing plate, enhancing pad durability and consistent braking performance. The inclusion of mounting hardware and pad shims ensures a secure fit and helps reduce noise and vibration during braking.

Technical Specifications and Features

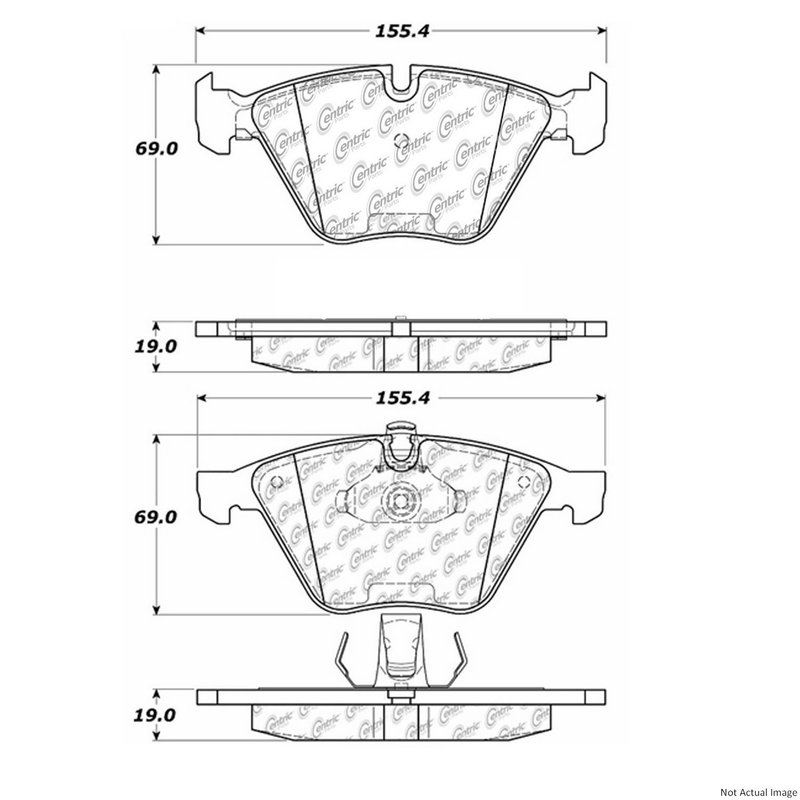

These brake pads feature an outer and inner pad height of 2.717 inches (69.000 mm), width of 6.118 inches (155.400 mm), and overall thickness of 0.748 inches (19.000 mm). The friction material is semi-metallic, providing a balance between braking efficiency and pad longevity. The pads are prepared for wear sensors, allowing compatibility with vehicles equipped with sensor systems, although the sensor itself is not included. The set weighs approximately 5.55 lbs (2.52 kgs), and the hardware kit number associated is 117.34024. Note that the outer pads do not include clips.

Compatible Vehicles and Applications

• BMW 335d, 335i, 335is, 335i xDrive, 335xi
• BMW 545i and 760Li
• BMW X1 and Z4 models

This disc brake pad set is designed to replace worn or damaged brake pads on these specific BMW models, restoring braking performance and safety.

Common Issues Addressed by This Brake Pad Set

• Reduced braking efficiency due to worn pads
• Brake noise and vibration caused by uneven pad wear
• Premature pad wear requiring frequent replacements
• Compatibility with vehicles equipped with pad wear sensors
• Need for complete hardware and shim kit for proper installation

Installation Notes and Tips

Installation of the Centric Posi-Quiet Extended Wear Semi-Metallic Disc Brake Pad Sets should be performed by a qualified technician. The set includes mounting hardware and pad shims to ensure proper fit and minimize noise. Although prepared for pad wear sensors, the sensor must be transferred or purchased separately if required. Verify pad orientation and torque specifications according to the vehicle manufacturer’s guidelines. Note that the outer pads do not have clips, so ensure proper alignment during installation.

Quality Assurance and Warranty

Centric brake pads are manufactured to meet or exceed OEM standards for fit, form, and function. The semi-metallic friction material and integrally molded design contribute to consistent braking performance and durability. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
