Centric 106.10560 Disc Brake Pad Set - Front

Centric Posi-Quiet Front Brake Pads

Centric Posi-Quiet Extended Wear Semi-Metallic Disc Brake Pad Set 106.10560 is built for front brake service on select Chrysler 300, Dodge Challenger, Dodge Charger, and Dodge Magnum applications. This semi-metallic pad set includes wear sensors, pad shims, and mounting hardware for the listed applications, with a focus on consistent pedal feel and reduced brake noise.

Key Features

• Part number 106.10560 from Centric
• Semi-metallic friction material
• 4-pad set with 2 wear sensors
• Pad shims included
• Mounting hardware included
• Integrally molded friction attachment
• Prepared for pad wear sensor use

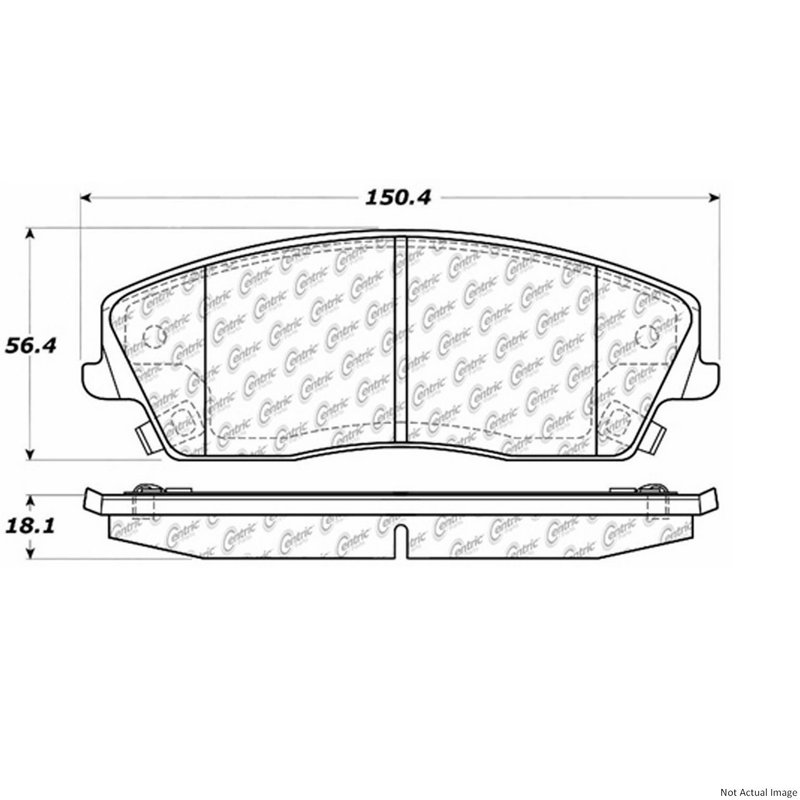

• Outer and inner pad thickness: 0.713 in. (18.100 mm)
• Pad height: 2.220 in. (56.400 mm)
• Pad width: 5.921 in. (150.400 mm)

Product Details

The Posi-Quiet Extended Wear line uses an OE-style positive molding process that compresses the friction material under high pressure for consistent density across the pad. Centric also uses precision-cut or shaved backing plates and mechanically attached shims to improve caliper fit and reduce vibration-related noise. A scorching process is applied to help remove impurities and speed up initial pad break-in. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Compatible With 2005-2016 Chrysler 300 front, 2006-2020 Dodge Charger front, 2009-2021 Dodge Challenger front, and 2005-2008 Dodge Magnum front. It also covers 2017-2021 Chrysler 300 front with a 1 piston caliper, plus 2021-2022 Dodge Charger front and 2022 Chrysler 300 front or 2022 Dodge Challenger front in optional Posi Quiet XT applications. The 106.10560 brake pad set is asbestos free and built for front disc brake service where quiet operation and even wear matter.

What It Helps Address

• Brake squeal and vibration noise
• Uneven pad wear
• Delayed pad break-in after installation
• Front brake service on Chrysler 300, Dodge Charger, Dodge Challenger, and Dodge Magnum
• Wear sensor replacement needs on supported applications

Installation Notes and Tips

Verify caliper type and model year before ordering, especially on 2017-2021 Chrysler 300 applications with a 1 piston caliper and 2022 optional XT listings. Inspect rotors, caliper slides, and hardware condition during service. Clean the caliper bracket and contact points before installation, and follow the vehicle manufacturer’s bedding procedure after installation of part number 106.10560.

Quality Assurance

Centric manufactures the Posi-Quiet line using OE-style positive molding and added surface preparation steps to promote consistent friction performance, fitment, and noise control. The pad formulation is asbestos free and supplied with the listed shims, wear sensors, and hardware for the specified applications.
