OE Quality
60-Day Returns
Centric 111.07650 Drum Brake Shoe - Rear
Centric Premium Rear Brake Shoes for Hyundai Santa Fe
Centric Premium Brake Shoes are built for drum brake service with OE-style fit and function. This Centric 111.07650 rear brake shoe set is listed for the 2001 Hyundai Santa Fe and uses bonded friction material with parking brake levers included for the rear drum brake assembly.
Centric Premium Brake Shoes are part of the Centric Premium Brake Shoes line, which focuses on OE-style replacement parts with precision-ground surfaces and application-specific friction materials. For rear parking brake service on a 2001 Hyundai Santa Fe, this part number is engineered to match the original drum brake shoe layout and lever configuration.
- Fits 2001 Hyundai Santa Fe, rear
- Part number: 111.07650
- Brake drum diameter: 10.000 in. / 254 mm
- Brake shoe width: 1.772 in. / 45 mm
- Bonded friction material
- Parking brake levers included
- Precision-ground for OE-style fit and function
- Asbestos-free friction compound
This part cross-references Wagner Brake Z765 and Raybestos Brakes 787PG for the same application.
What This Brake Shoe Set Helps Address
- Rear parking brake drag or weak holding power
- Uneven drum brake contact from worn shoe linings
- Squealing or scraping caused by worn rear shoes
- Reduced rear brake performance on a 2001 Hyundai Santa Fe
- Fitment issues from incorrect shoe width or drum diameter
Installation Notes and Tips
Verify drum diameter, shoe width, and lever orientation before installation. This application uses rear drum brake shoes with parking brake levers and roll pins; mounting hardware is not included. Inspect the brake drum, wheel cylinder, and parking brake mechanism for wear before reassembly. Proper adjustment after installation is important for consistent rear brake and parking brake operation.
Quality Assurance
Centric Parts tests its Premium Brake Shoes for fit and performance, and the friction material is dyno tested to meet or exceed OE specifications. The asbestos-free compound is formulated for dependable rear drum brake service on the 2001 Hyundai Santa Fe. Part number 111.07650 is built to OE-style dimensions for direct replacement use.
| Brand | Centric |
|---|---|
| Part Number | 111.07650 |
| Position | Centric Premium Brake Shoes, Rear |
| Brake Shoe Width | 1.772 |
| Brake Shoe Width | 45.000 |
| Friction Material Attachment | Bonded |
| Lever Qty [cntrc] | 2 |
| Mounting Hardware Included | No |

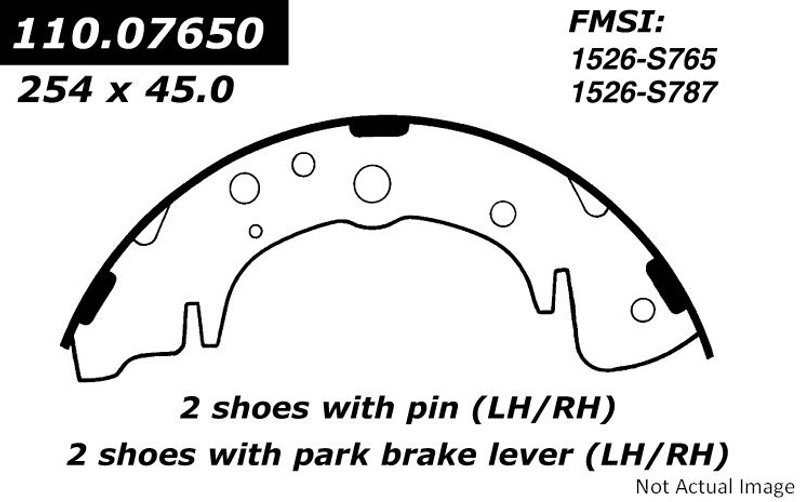

| Notes [cntrc] | 2 shoes with park brake lever (LH / RH), 2 shoes with roll pin |
| Parking Brake Levers Included | YES |
| Publication Dim | 254 x 45 |
| Rotor Outside Diameter | 10.000 |
| Rotor Outside Diameter | 254.000 |
| Shoe Qty [cntrc] | 4 |
| Weight [cntrc] kgs | 3.18 |
| Weight [cntrc] lbs | 7 |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Hyundai | Santa Fe | 2.4L | L4 | Rear | Centric Premium Brake Shoes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
