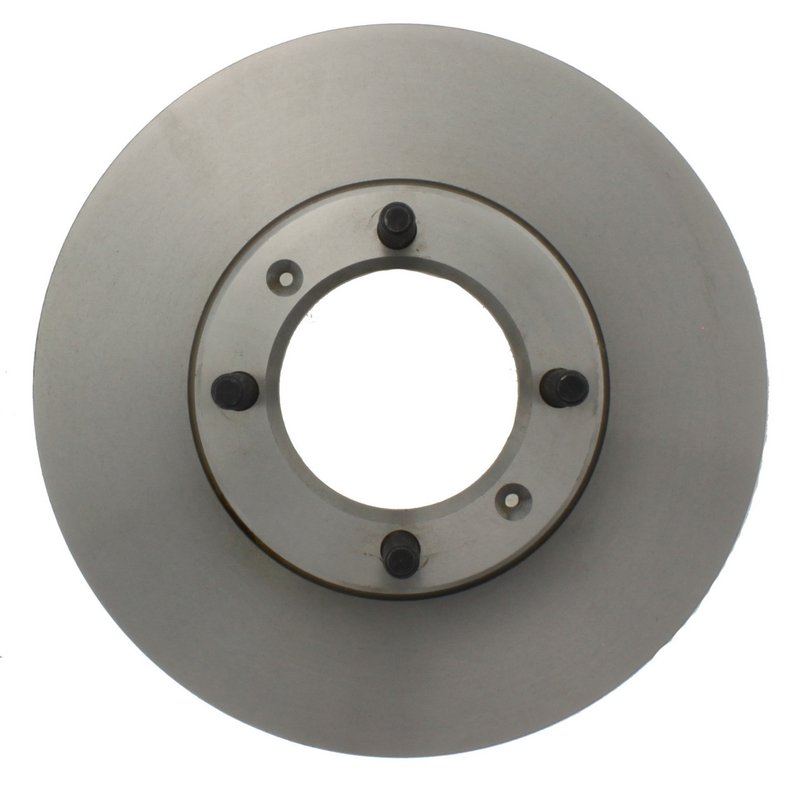

Centric 120.02004 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.02004

The Centric Premium Disc Brake Rotor 120.02004 is engineered for reliable braking performance and durability. Designed as a solid rotor with a smooth surface, it suits vehicles requiring precise stopping power and consistent wear characteristics.

• Solid disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• Overall diameter of 272 mm (10.709 inches)
• Nominal thickness of 12.6 mm (0.496 inches) with discard thickness at 10.7 mm (0.421 inches)
• Mounting bolt hole circle diameter of 108 mm with 4 bolt holes
• Stud thread diameter of 12 mm and bolt thread pitch of 1.5 mm
• Center hole diameter of 82 mm (3.228 inches)
• Designed for mounting behind the hub

Details on Centric Premium Disc Brake Rotors Line

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing processes to ensure consistent thickness and surface finish. The 120.02004 rotor benefits from this approach, featuring a coated hat finish to reduce corrosion and a solid rotor design for applications where vented rotors are not required.

Technical Specifications and Features

This disc brake rotor measures 272 mm in outside diameter and has a nominal thickness of 12.6 mm, with a discard thickness of 10.7 mm, indicating when replacement is necessary. The rotor includes four mounting bolt holes arranged on a 108 mm bolt circle diameter, compatible with vehicles that use this mounting pattern. The stud thread diameter is 12 mm with a 1.5 mm pitch, suitable for standard lug nuts. The rotor’s hat is coated to resist rust and corrosion, extending service life. It is a solid rotor type with a smooth braking surface, designed for consistent pad contact and braking performance.

Compatible Vehicle Applications

• Replacement for vehicles requiring a 272 mm solid disc brake rotor
• Suitable for models with 4 mounting bolts on a 108 mm bolt circle
• Compatible with vehicles using 12 mm stud diameter and 1.5 mm thread pitch
• Ideal for applications where a solid rotor is specified instead of vented
• Designed for mounting behind the hub assembly

Installation Notes and Tips

When installing the Centric Premium Disc Brake Rotor 120.02004, ensure the mounting surface and hub are clean and free of debris. Verify the rotor thickness before installation; replace if below the discard thickness of 10.7 mm. Use proper torque specifications for the 12 mm studs with 1.5 mm thread pitch to avoid warping. This rotor does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle’s braking system. Proper bedding-in of brake pads after installation is recommended for optimal performance.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The 120.02004 rotor features a coated hat finish to resist corrosion and maintain structural integrity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
