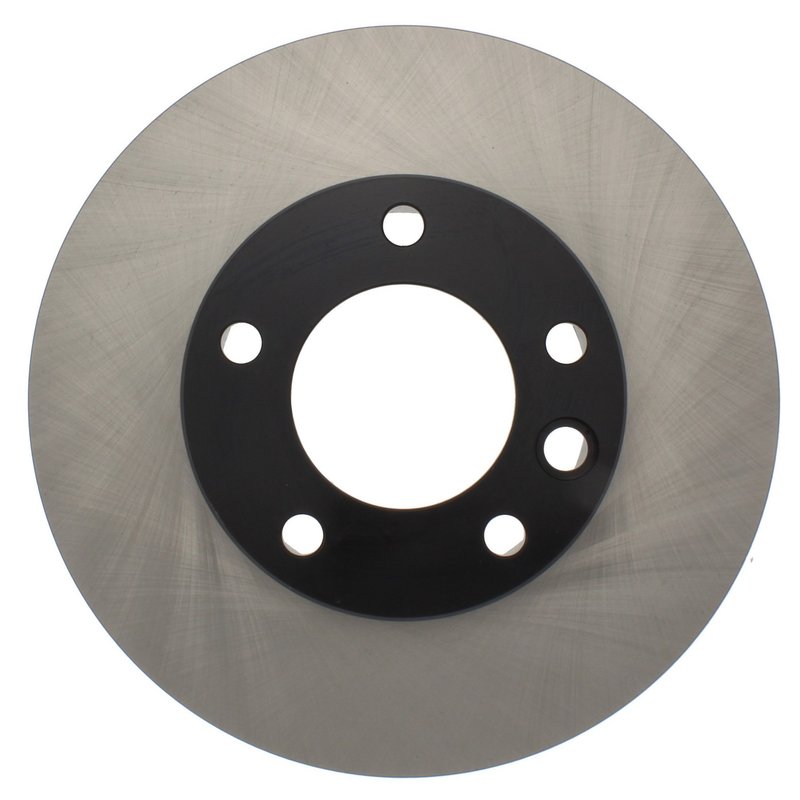

Centric 120.35111 Disc Brake Rotor - Front

Centric Premium Rotor for Mercedes-Benz Front Brakes

Centric Premium Disc Brake Rotor 120.35111 is a front vented rotor built for Mercedes-Benz applications that use a 315 mm front disc. It combines a smooth braking surface with a coated hat finish and Centric’s electrocoated corrosion protection for long-term durability in demanding driving conditions.

Key Features

• Part number 120.35111 from Centric Premium Disc Brake Rotors
• Front disc brake rotor for Mercedes-Benz G550 and G65 AMG applications
• Vented rotor design with straight vanes for heat management
• Smooth surface type for consistent pad contact
• Coated hat finish for added corrosion resistance
• Electrocoated finish helps resist rust after installation
• 5-bolt hole layout with 130 mm bolt circle and 85 mm center hole
• Outside diameter: 315.2 mm; nominal thickness: 29.8 mm; discard thickness: 27.4 mm

Product Details

The Centric Premium Disc Brake Rotors line focuses on corrosion protection and stable braking performance. This rotor uses an electrocoating finish rather than a basic phosphate coating, giving the metal surface stronger resistance to moisture and road exposure after installation. For Mercedes-Benz G550 and G65 AMG front brake service, 120.35111 provides the correct vented rotor format, 315 mm class diameter, and floating mounting type specified in the fitment data.

This part cross-references Raybestos Brakes 980653 for the same application. It is a direct-fit front rotor for 2017 Mercedes-Benz G550, 2017 Mercedes-Benz G65 AMG, 2009-2016 Mercedes-Benz G550, and 2008 Mercedes-Benz G500 front brake applications listed in the catalog.

What It Helps Address

• Brake pulsation caused by worn or below-spec front rotors
• Corrosion on exposed rotor surfaces and hat areas
• Reduced braking consistency from uneven rotor wear
• Heat buildup in front brake service on heavier Mercedes-Benz SUVs
• Fitment issues when replacing a 315 mm front disc rotor

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt pattern, and thickness before installation. This rotor is listed for front position use only and does not include ABS tone ring or bearings. Confirm the vehicle uses the 315 mm front disc specification noted in the fitment data for 2017 Mercedes-Benz G550 and 2017 Mercedes-Benz G65 AMG.

Quality Assurance

Centric Premium Disc Brake Rotors are built with an electrocoated finish intended to provide lasting corrosion protection after service. The coated surface is engineered to hold up far beyond basic shipping-only coatings, helping maintain rotor appearance and function in wet and salty environments.
