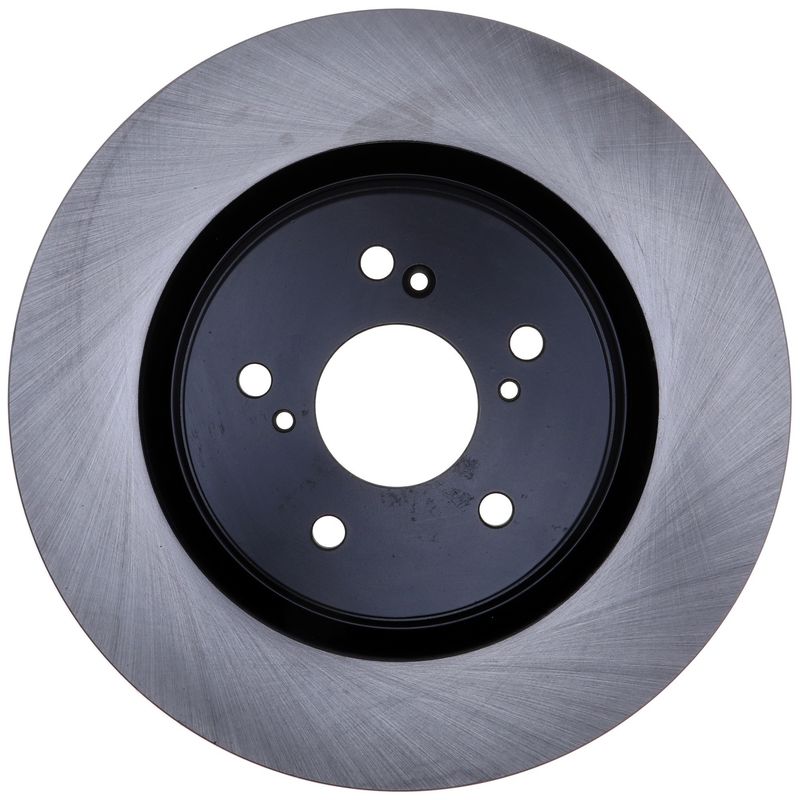

Centric 120.40114 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.40114

The Centric Premium Disc Brake Rotor 120.40114 is designed specifically for Honda CR-V models, providing reliable braking performance. This vented rotor offers precise dimensions to ensure proper fit and function for your vehicle's braking system.

• Compatible with Honda CR-V vehicles
• Vented disc brake rotor design for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm)
• Discard thickness of 1.024 inches (26.000 mm)
• Outside diameter measures 12.591 inches (319.800 mm)
• Overall height of 1.858 inches (47.200 mm)
• Center hole diameter of 2.520 inches (64.000 mm)
• Mounting bolt hole circle diameter of 4.500 inches (114.300 mm) with 3 centric holes
• ABS tone ring not included
• Bearings not included

Details on Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors manufactured to meet or exceed OEM specifications. These rotors are engineered for consistent performance and durability, making them suitable replacements for original equipment on Honda CR-V models. The vented design of the 120.40114 rotor helps reduce heat buildup during braking, which can improve rotor life and braking consistency under normal driving conditions.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 1.102 inches (28.000 mm) and a discard thickness of 1.024 inches (26.000 mm), indicating the minimum thickness before replacement is necessary. The rotor's outside diameter is 12.591 inches (319.800 mm), with an overall height of 1.858 inches (47.200 mm). The center hole diameter is 2.520 inches (64.000 mm), and it mounts using a bolt hole circle diameter of 4.500 inches (114.300 mm) with three centric holes. Note that this rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Honda CR-V vehicles
• Addresses brake pulsation or vibration issues caused by uneven rotor surfaces
• Restores proper rotor thickness to maintain safe braking performance
• Improves heat dissipation to reduce brake fade during extended use
• Suitable for routine maintenance or brake system overhauls

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets the nominal thickness specifications. Clean the rotor surface to remove any protective coatings or contaminants prior to mounting. Verify compatibility with your specific Honda CR-V model year and brake system configuration. Since bearings and ABS tone rings are not included, reuse existing components or source separately as needed. Proper torque specifications should be followed when securing the rotor to the hub.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. The 120.40114 rotor undergoes quality control processes to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
