Centric 120.42030 Disc Brake Rotor - Front

Centric Premium Rotor for Nissan Front Brakes

Centric Premium Disc Brake Rotor 120.42030 is a front vented rotor for select Nissan Pickup, D21, and 720 applications. It combines a coated hat and edge with a smooth braking surface to support consistent braking performance and corrosion resistance in everyday driving.

Key Features

• Centric Premium Disc Brake Rotors line
• Part number 120.42030
• Front position rotor for Nissan Pickup, D21, and 720
• Vented rotor design with smooth surface type
• Coated hat finish and coated edge for corrosion resistance
• Resin-modified coating formulated to withstand 120 hours in salt chamber testing
• 6-bolt mounting pattern with behind-the-hub disc mounting

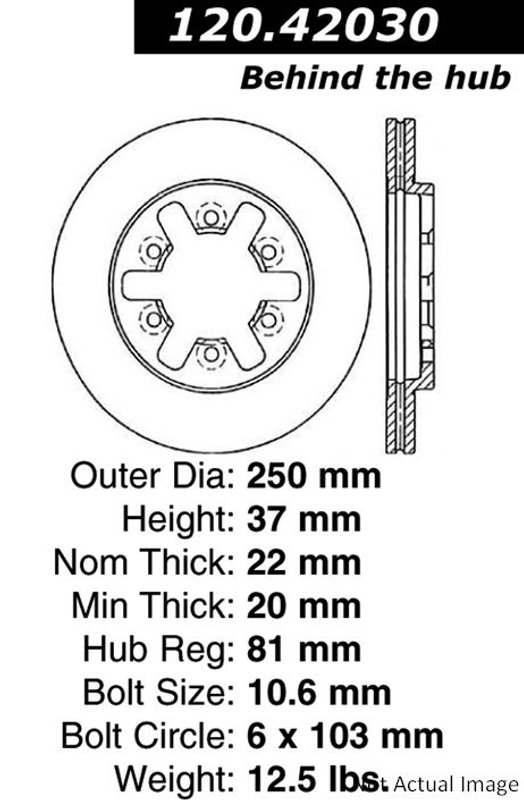

• Outside diameter: 250 mm (9.843 in)
• Nominal thickness: 22 mm (0.866 in)
• Discard thickness: 20 mm (0.787 in)

Product Details

The Centric Premium Disc Brake Rotors product line is built for drivers who want a direct-fit replacement rotor with corrosion protection in the hat and edge areas. This rotor uses a vented construction, a 103 mm bolt circle, an 81 mm center hole, and a 10.6 mm mounting bolt hole diameter to match the specified front brake setup. For Nissan Pickup and Nissan D21 front brake service, part number 120.42030 provides the dimensions and finish needed for a clean OE-style replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Fitment

• Fits 1995-1997 Nissan Pickup, front.
• Fits 1986-1994 Nissan D21, front.
• Fits 1986 Nissan 720, front.
• Fits 1985 Nissan 720, front, from 11/1985.

Common Repair Uses

• Front brake rotor replacement for Nissan Pickup braking service
• Correction of rotor wear that has reached discard thickness
• Replacement for rotors with surface scoring or uneven braking feel
• Service for corrosion on the hat or outer edge
• Restoration of smooth front brake operation on D21 and 720 models

Installation Notes and Quality

Verify rotor dimensions, bolt pattern, and front axle application before installation. Inspect pads, calipers, and hub surfaces during brake service to help ensure proper rotor seating and even contact. This rotor is a Centric Premium part designed with a coated finish for corrosion resistance and chemical durability in salt exposure testing.
