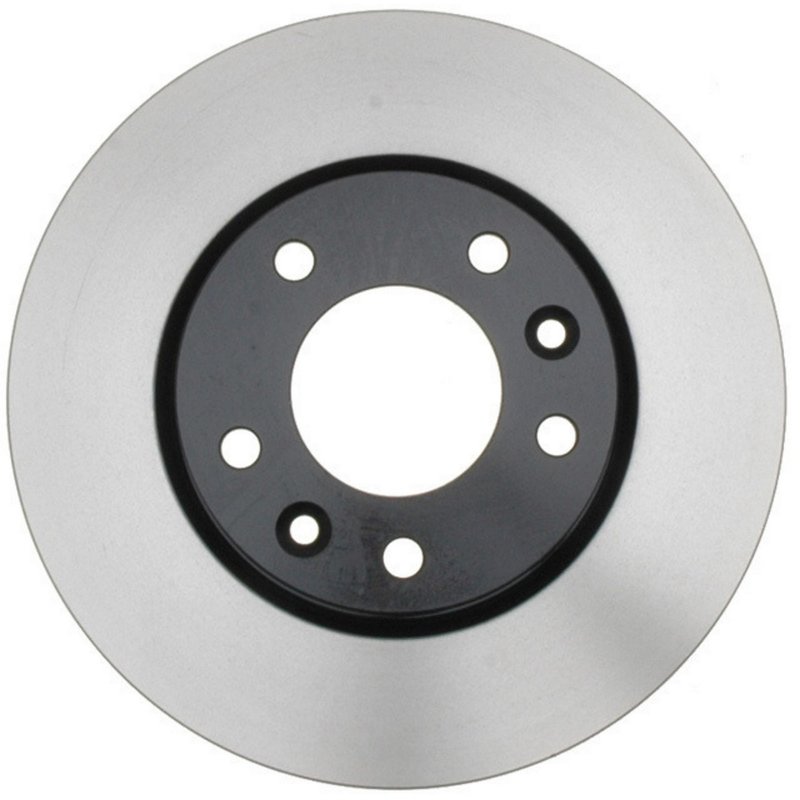

Centric 120.50006 Disc Brake Rotor - Front

Centric Premium Front Brake Rotor

Centric Premium Disc Brake Rotor 120.50006 is a front vented rotor built for 2002-2003 Kia Sedona applications. It uses an electrocoated finish for corrosion resistance and stable long-term appearance after installation.

Key Features

• Part number 120.50006 from Centric Premium Disc Brake Rotors
• Front disc brake rotor for 2002 Kia Sedona and 2003 Kia Sedona front brake service
• Vented rotor design with straight vanes for heat management
• Electrocoated finish for corrosion protection during service life
• Outside diameter: 276 mm; height: 48.5 mm
• Bolt hole quantity: 5; hub hole/whl reg: 72.1 mm
• Nominal thickness: 26.2 mm; discard thickness: 24 mm

Product Details

Centric’s Premium Disc Brake Rotors line focuses on corrosion-resistant replacement rotors with an electrostatic coating that holds up far longer than basic phosphate finishes. For Kia Sedona front brake repair, 120.50006 provides the correct vented rotor format, floating mounting type, and OE-style dimensions needed for a direct replacement on the listed vehicles. This part cross-references Raybestos Brakes 980080 for the same application.

Fits 2002 Kia Sedona, front. Fits 2003 Kia Sedona, front.

Common Repair Symptoms

• Brake pulsation from rotor thickness variation
• Visible rotor rust on the hat or friction surface
• Brake noise caused by worn or uneven rotors
• Reduced braking smoothness during stop-and-go driving
• Front brake service on a 2002-2003 Kia Sedona

Installation Notes

Verify rotor thickness, hub bore, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads and caliper components at the same time to avoid uneven wear. Confirm fitment by year and position: 2002 Kia Sedona front and 2003 Kia Sedona front.

Quality Assurance

Centric Premium Disc Brake Rotors use an electrocoating finish engineered to resist corrosion after installation, helping maintain rotor condition in wet and salted-road environments. Part number 120.50006 is built to the listed dimensions for the specified Kia Sedona front applications.
