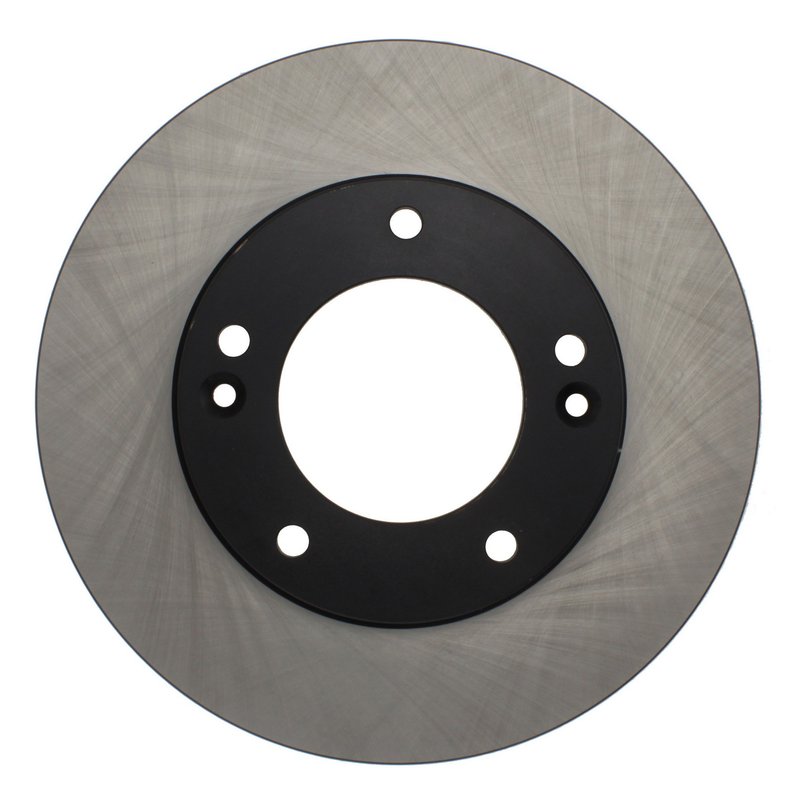

Centric 120.50008 Disc Brake Rotor - Front
| Brand | Centric 120.50008 |
|---|---|
| Position | Front |
| Discard Thickness | 1.024 |
| Discard Thickness | 26 |
| Discard Thickness | 26.000 |
| Nominal Thickness | 1.102 |
| Nominal Thickness | 28 |
| Nominal Thickness | 28.000 |
| 143 | 139.7 |
| Hat Finish | Coated |
| Bolt Hole Quantity | 5 |
| Overall Height | 2.138 |
| Overall Height | 54.300 |
| Outside Diameter | 11.811 |
| Outside Diameter | 300 |
| Outside Diameter | 300.000 |
| Height | 54.3 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.780 |
| Center Hole Diameter | 96.000 |
| Mounting Bolt Hole Circle Diameter | 139.700 |
| Mounting Bolt Hole Circle Diameter | 5.500 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.488 |
| Stud/Lug Hole Diameter | 12.400 |
| Disc Mounting [cntrc] | Floating |
| Hub Hole/Whl Reg mm | 96 |
| Misc Holes [cntrc] | 2 |
| Mounting Type | Floating |
| Product line | Centric Premium Disc Brake Rotors |
| Fits | Kia · 4 vehicles |
Electrocoated finish. Helps resist corrosion after installation and during service.
Vented rotor design. Straight vanes support airflow through the rotor for stable braking.
Coated hat finish. Adds protection to exposed areas of the rotor assembly.
Cross-references Raybestos Brakes 980325, Walker Exhaust 31386 and 1407-78534 for the same application. See all 13.
Overview
Centric Premium Disc Brake Rotor 120.50008 is a front brake rotor for select Kia Sorento applications. It combines a smooth vented design with a coated hat finish and Centric’s electrocoating corrosion protection for dependable service in demanding conditions.
Key Features
- Fits 2003-2006 Kia Sorento, front.
- Vented rotor design with a smooth surface for consistent brake contact.
- Electrocoated finish helps resist corrosion after installation.
- Coated hat finish adds protection in exposed areas.
- Five-bolt pattern with a 300 mm outside diameter and 96 mm center hole.
- Part number 120.50008 for easy identification.
Detailed Description
Centric Premium Disc Brake Rotors are built for drivers who need a direct replacement rotor with corrosion protection that goes beyond basic phosphate coating. The electrocoating finish is engineered to withstand extended salt water exposure, helping the rotor maintain its appearance and resist rust once installed. This rotor uses a vented, straight-vane construction and a smooth friction surface to support stable braking performance. For Kia Sorento brake service, part number 120.50008 provides the fitment and dimensions needed for the specified front application.
This part cross-references Raybestos Brakes 980325 for the same application.
Common Issues It Can Address
- Rust buildup on the rotor surface or hat area.
- Brake pulsation caused by worn rotor surfaces.
- Reduced braking consistency from rotor wear.
- Noise related to uneven or deteriorated rotor condition.
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help the rotor seat correctly. Inspect brake pads and related hardware during rotor replacement, and confirm the rotor is installed on the front axle application listed for the Kia Sorento.
Quality Assurance
Centric Premium Disc Brake Rotors use an electrocoated finish for long-lasting corrosion protection and are built to meet the dimensional requirements of the listed application. Part number 120.50008 is identified for the specified fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Kia | Sorento | Front | Centric Premium Disc Brake Rotors |
| 2005 | Kia | Sorento | Front | Centric Premium Disc Brake Rotors |
| 2004 | Kia | Sorento | Front | Centric Premium Disc Brake Rotors |
| 2003 | Kia | Sorento | Front | Centric Premium Disc Brake Rotors |
