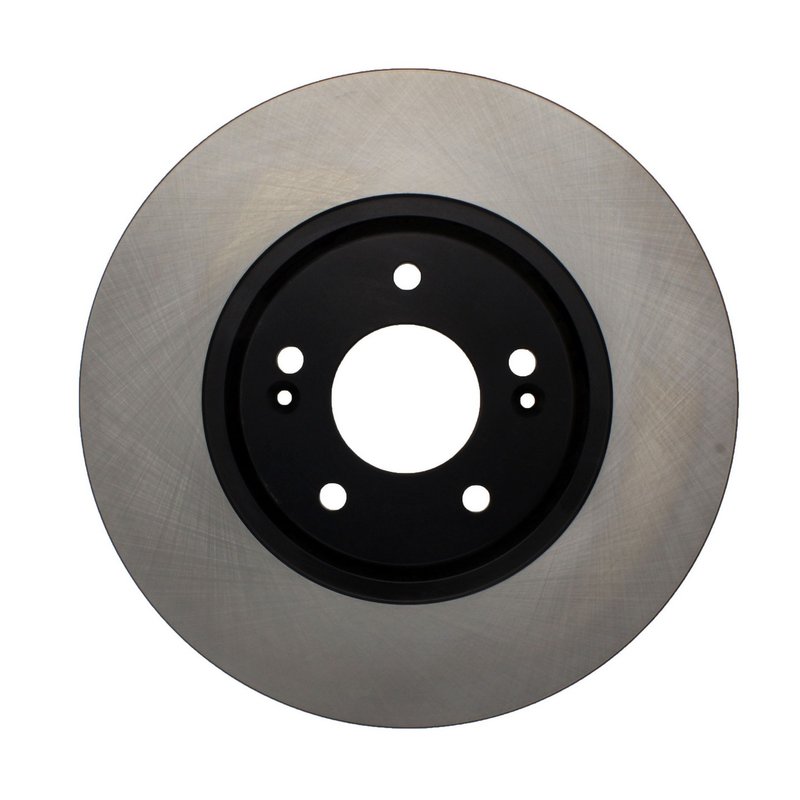

Centric 120.51026 Disc Brake Rotor - Front

Centric Premium Front Brake Rotor for Veracruz

Centric Premium Disc Brake Rotor 120.51026 is built for the front axle of 2007-2012 Hyundai Veracruz models. It combines a smooth braking surface with a coated hat and Centric’s electrocoated finish for corrosion resistance in everyday driving conditions.

For drivers searching for a front brake rotor for 2007-2012 Hyundai Veracruz, this Centric Premium Disc Brake Rotor 120.51026 is a direct-fit replacement with OE-style dimensions and vented construction.

Key Features

• Fits 2007-2012 Hyundai Veracruz, front
• Centric Premium Disc Brake Rotors product line
• Electrocoated finish for long-lasting corrosion protection
• Vented rotor design with straight vanes
• Smooth surface type for consistent pad contact
• Coated hat finish for added resistance to rust
• 5-bolt hole pattern with 114.3 mm bolt circle
• Outside diameter: 321 mm (12.638 in.)
• Nominal thickness: 28 mm; discard thickness: 26.4 mm
• Center hole diameter: 68.9 mm

Product Details

The Centric Premium Disc Brake Rotors line focuses on corrosion control and stable fitment. Part number 120.51026 uses an electrocoating finish that is engineered to resist rust far longer than basic phosphate coatings, which are typically limited to storage protection. This rotor is vented, has straight vane construction, and measures 49.3 mm in overall height with a 68.9 mm center hole diameter for the specified Hyundai Veracruz front brake application.

This part cross-references Raybestos Brakes 980635 for the same application.

Common Brake Issues This Rotor Can Address

• Front brake pulsation from worn or uneven rotor surfaces
• Rust buildup on exposed rotor areas
• Reduced braking consistency from rotor wear beyond discard thickness
• Noise caused by surface irregularity or corrosion
• Brake service needs on a 2007-2012 Hyundai Veracruz front axle

Installation Notes

Verify rotor dimensions, hub bore, bolt pattern, and front-position fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Always inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle manufacturer’s service procedure for torque and bedding.

Quality Assurance

Centric Premium Disc Brake Rotors are built with an electrocoated finish for corrosion protection and consistent appearance after installation. Part number 120.51026 is manufactured to match the listed Hyundai Veracruz front brake application and OE-style dimensional requirements.
