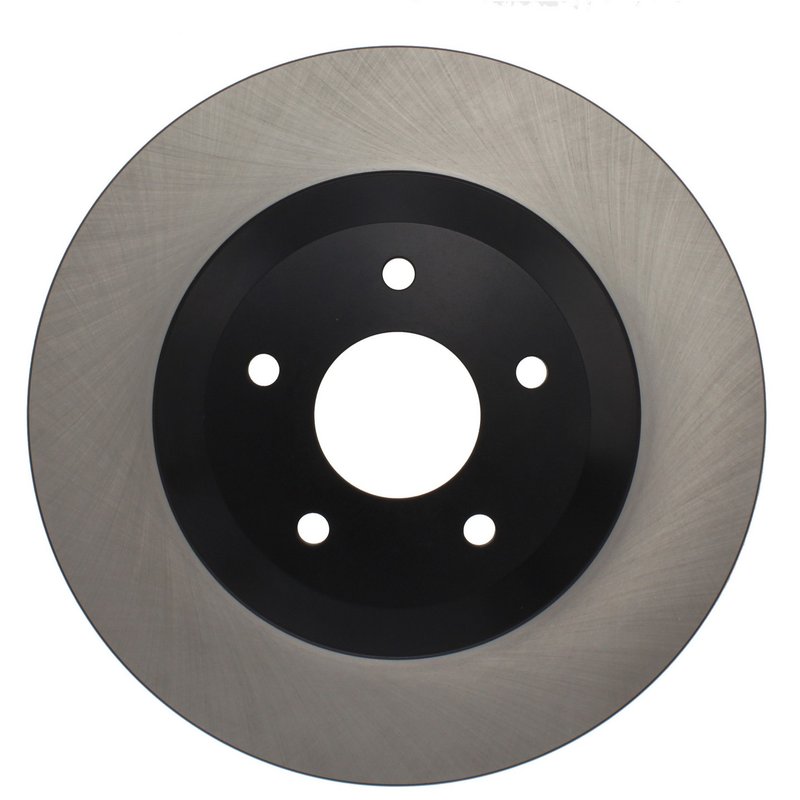

Centric 120.62060 Disc Brake Rotor - Front Right

Overview of Centric Premium Disc Brake Rotor 120.62060

The Centric Premium Disc Brake Rotor 120.62060 is engineered for reliable braking performance on Cadillac and Chevrolet vehicles, specifically the Corvette and XLR models. Designed with precision, this vented rotor ensures consistent heat dissipation and smooth braking under various driving conditions.

• Compatible with Cadillac Corvette and Chevrolet XLR
• Part number: 120.62060
• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• 5 bolt holes with a 120.6 mm bolt circle diameter
• Nominal thickness of 32.1 mm and discard thickness of 30.3 mm
• Overall diameter of 324.9 mm (12.791 inches)
• Floating mounting type for improved rotor alignment

Product Line Details: Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors with enhanced durability and consistent braking performance. This product line features rotors with vented designs to improve heat dissipation and coated hats to resist corrosion, extending rotor life. The 120.62060 rotor benefits from these design elements, making it suitable for high-performance vehicles like the Cadillac Corvette and Chevrolet XLR.

Technical Specifications and Features

This disc brake rotor features a vented design that helps maintain optimal operating temperatures by allowing air to flow between the rotor surfaces. The smooth surface type ensures even pad contact and reduces noise during braking. The rotor has a nominal thickness of 32.1 mm and a discard thickness of 30.3 mm, indicating when replacement is necessary to maintain safe braking performance. The coated hat finish protects the rotor hub from rust and corrosion, which is critical for longevity. With 5 bolt holes arranged on a 120.6 mm bolt circle diameter and a center hole diameter of 70.7 mm, this rotor is designed for precise fitment on compatible vehicles. The floating mounting type allows slight movement to reduce stress and improve rotor alignment during operation.

Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac Corvette and Chevrolet XLR
• Improves braking consistency by reducing heat-related brake fade
• Addresses rotor corrosion issues with coated hat finish
• Restores proper rotor thickness to maintain braking efficiency
• Reduces noise and vibration caused by uneven rotor surfaces

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (30.3 mm) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Use proper torque specifications for the 5 lug bolts on the 120.6 mm bolt circle
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The 120.62060 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
