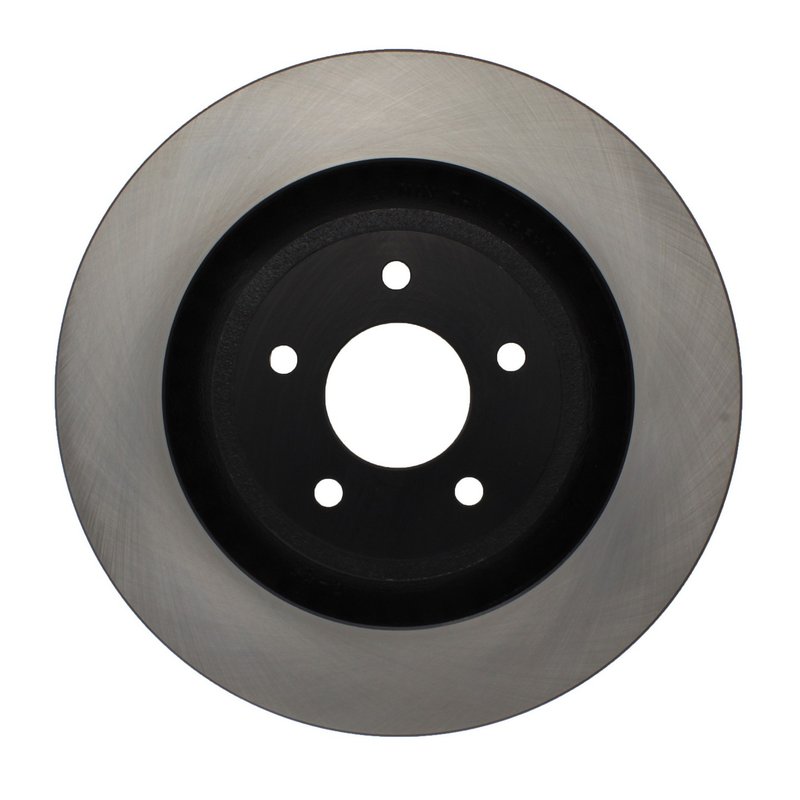

Centric 120.63072 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.63072

The Centric Premium Disc Brake Rotor 120.63072 is engineered for reliable braking performance on select Chrysler and Dodge vehicles. Designed specifically for models like the 200, Avenger, and Caliber, this rotor meets precise specifications to ensure proper fit and function.

• Compatible with Chrysler 200, Dodge Avenger, and Dodge Caliber
• Part number 120.63072 for accurate identification
• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• Floating mounting type with 5 bolt holes and 5 stud/lug holes
• Outside diameter of 340 mm (13.386 inches)
• Nominal thickness of 28 mm (1.102 inches) and discard thickness of 26.5 mm (1.043 inches)
• Overall height of 43.8 mm (1.724 inches)
• Center hole diameter of 69 mm (2.717 inches)

Details on Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line is designed to provide consistent braking performance with enhanced durability. This product line features rotors with a coated hat finish to resist rust and corrosion, extending rotor life. The vented design improves heat dissipation during braking, reducing the risk of brake fade under normal driving conditions. The smooth surface type ensures even pad contact and wear, contributing to quieter braking and longer pad life. The floating mounting type allows for slight rotor movement, which can help reduce stress on the braking system components.

Product Specifications and Features

This rotor has an outside diameter of 340 mm, making it suitable for the braking system requirements of Chrysler 200, Dodge Avenger, and Dodge Caliber models. The nominal thickness is 28 mm, with a discard thickness of 26.5 mm, indicating when the rotor should be replaced to maintain safe braking performance. The rotor includes 5 bolt holes and 5 stud/lug holes with a bolt hole circle diameter of 114.3 mm, ensuring proper fitment. The hat finish is coated to protect against corrosion, and the rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Improving heat dissipation to reduce brake fade
• Restoring smooth braking surface for consistent pad contact
• Corrosion protection to extend rotor service life

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 28 mm. Clean the rotor surface and hub mounting area to remove rust or debris for proper seating. Use the correct torque specifications for the 5 mounting bolts to avoid rotor warping. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s braking system components. Follow manufacturer guidelines for brake pad replacement when installing new rotors.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The coated hat finish provides additional corrosion resistance to enhance durability. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
