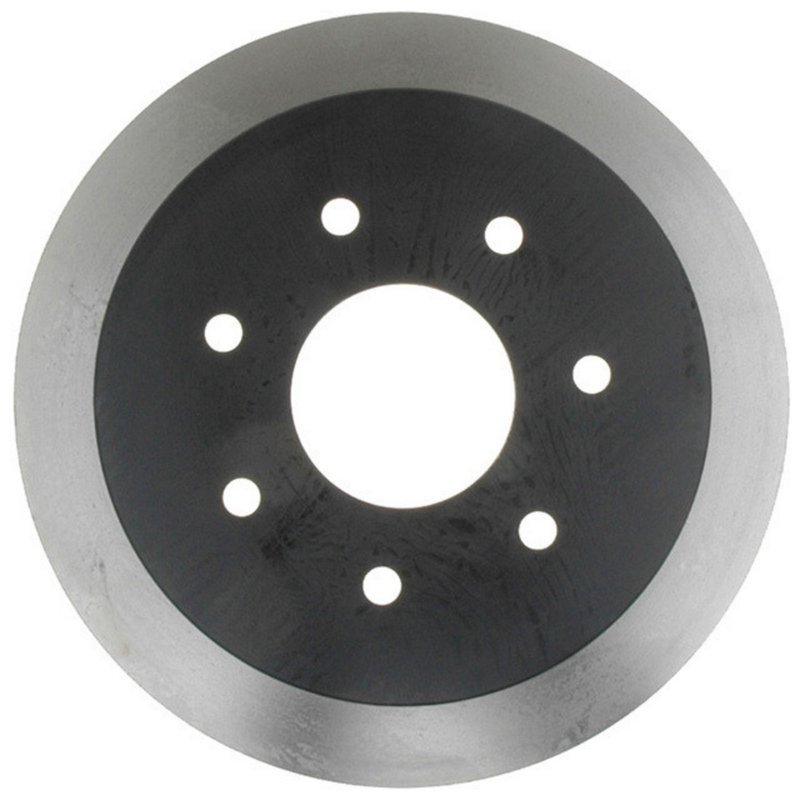

Centric 120.65061 Disc Brake Rotor - Rear

Centric Premium Disc Brake Rotor for Rear Applications

Centric Premium Disc Brake Rotor 120.65061 is a rear solid rotor built for select Ford truck applications. It combines a coated hat and edge with a smooth surface to support corrosion resistance and consistent braking performance.

Compatible With 2000-2004 Ford F-150 rear, 2004 Ford F-150 Heritage rear, 1997-1999 Ford F-250 rear, and 1997 Ford F-250 HD rear with 7 stud rotor applications. The Centric Premium Disc Brake Rotors line focuses on corrosion protection and OE-style fitment for service replacement needs.

Key Features

• Part number 120.65061
• Centric Premium Disc Brake Rotors product line
• Rear disc brake rotor
• Solid rotor design
• Smooth surface type
• Coated hat finish for corrosion resistance
• Painted edge and hat use a resin-modified coating tested for 120 hours in salt chamber conditions
• Outside diameter: 13.150 in. / 334.000 mm
• Nominal thickness: 0.551 in. / 14.000 mm
• Discard thickness: 0.472 in. / 12.000 mm
• Overall height: 3.142 in. / 79.800 mm
• Center hole diameter: 3.445 in. / 87.500 mm
• 7 lug holes with 5.906 in. / 150.000 mm bolt circle

Detailed Description

Centric 120.65061 is a premium rear brake rotor for Ford F-150, Ford F-150 Heritage, Ford F-250, and Ford F-250 HD applications listed above. Its solid construction and smooth friction surface support stable brake contact, while the coated hat and edge help resist corrosion in exposed service environments. The rotor measures 13.150 inches in outside diameter and 14.000 mm nominal thickness, with a 3.142-inch overall height and 7-lug mounting pattern.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Rotor Can Address

• Brake pulsation caused by worn or out-of-spec rear rotors
• Corrosion on the hat and outer edge of the rotor
• Reduced braking consistency from uneven rotor wear
• Noise related to rotor surface condition
• Service replacement needs on rear Ford truck brake systems

Installation Notes and Tips

Verify rear axle and rotor dimensions before installation, especially on 7-stud Ford truck applications. Inspect pads, calipers, and hub surfaces for wear or rust before mounting the new rotor. Clean the rotor friction surface before service and confirm the rotor seats fully on the hub.

Quality Assurance

Centric Premium rotors use a corrosion-resistant painted hat and edge finish with a resin-modified coating that has passed 120-hour salt chamber testing. Part number 120.65061 is built to support dependable replacement service for the listed Ford rear brake applications.
