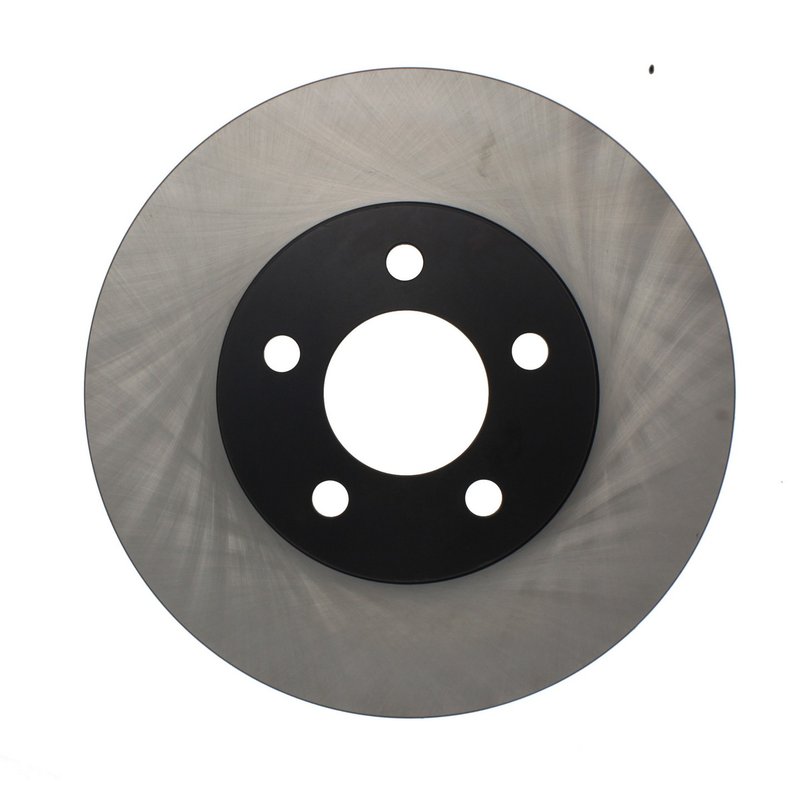

Centric 120.65082 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.65082

The Centric Premium Disc Brake Rotor 120.65082 is engineered for reliable braking performance on select Ford and Mazda trucks and SUVs. Designed to meet OEM specifications, this vented disc brake rotor ensures consistent stopping power and durability for vehicles like the Ford Ranger and Mazda B3000.

• Compatible with Ford B3000, B4000, Explorer Sport, Explorer Sport Trac, and Ranger models
• Vented rotor design for improved heat dissipation
• Coated hat finish to resist corrosion
• Floating disc mounting type for enhanced rotor alignment
• 5 bolt hole configuration with 114.3 mm bolt circle diameter
• Nominal thickness of 26.0 mm and discard thickness of 24.5 mm
• Outside diameter of 305 mm (12.008 inches)
• Smooth surface type for consistent pad contact

Details on Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors product line focuses on delivering rotors that meet or exceed OEM standards for fit, form, and function. These rotors are precision-machined and coated to provide long-lasting performance and corrosion resistance. The 120.65082 rotor features a vented design that helps dissipate heat more effectively during braking, reducing the risk of brake fade under demanding conditions. The floating mounting type allows for slight movement to maintain proper alignment and reduce uneven wear.

Technical Specifications and Features

This disc brake rotor has a nominal thickness of 26.0 mm and a discard thickness of 24.5 mm, ensuring it can be resurfaced within safe limits. The rotor's outside diameter measures 305 mm, compatible with the specified Ford and Mazda models. It includes a coated hat finish to protect against rust and corrosion, extending the rotor's service life. The rotor is vented and features a smooth surface type, which promotes even brake pad wear and consistent braking performance. The 5-bolt hole pattern with a 114.3 mm bolt circle diameter matches factory specifications for secure installation.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Ranger and Mazda B3000 vehicles
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during heavy use
• Restores proper rotor thickness for safe braking performance
• Prevents corrosion-related rotor damage with coated hat finish

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (24.5 mm) before installation
• Clean mounting surfaces to prevent rotor misalignment
• Use proper torque specifications for the 5 lug bolts on the 114.3 mm bolt circle
• Check compatibility with ABS sensors as this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 120.65082 are not provided, Centric typically offers coverage against defects in materials and workmanship. It is recommended to verify warranty terms with the supplier or manufacturer prior to installation.
