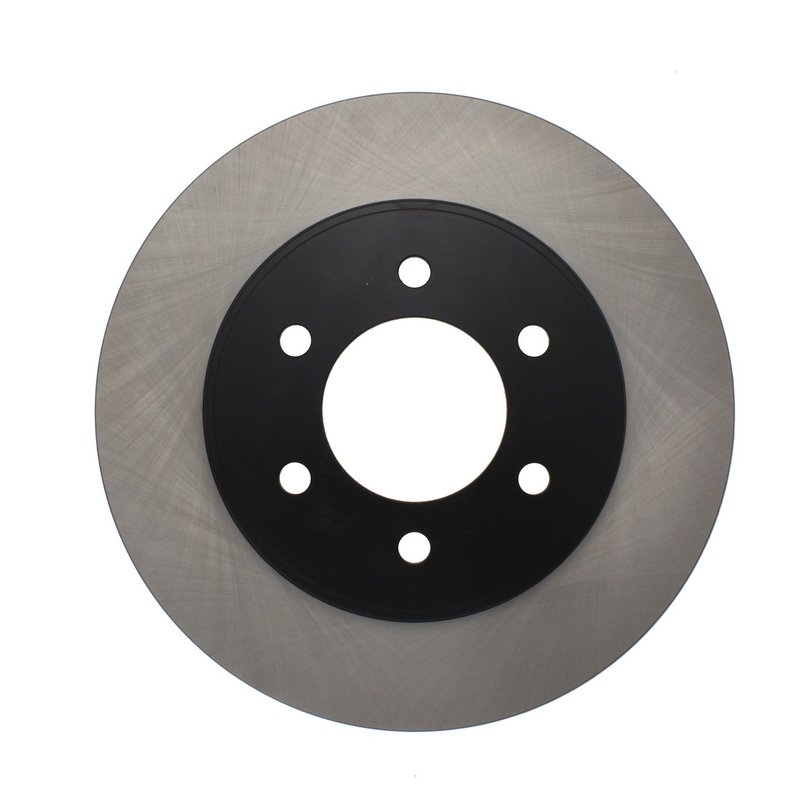

Centric 120.65100 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.65100

The Centric Premium Disc Brake Rotor 120.65100 is engineered for reliable braking performance on Ford F-150 and Lincoln Mark LT models. Designed as a vented, floating rotor, it offers consistent heat dissipation and durability for demanding driving conditions.

• Compatible with Ford F-150 and Lincoln Mark LT
• Vented disc brake rotor for improved cooling
• Floating mounting type with 6 bolt holes
• Coated hat finish to resist corrosion
• Nominal thickness of 30 mm and discard thickness of 28.5 mm
• Outside diameter of 330 mm (12.992 inches)
• Center hole diameter of 90.2 mm (3.551 inches)
• Smooth surface type for consistent pad contact

Product Line Details: Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications. This product line emphasizes precision manufacturing, balanced vented designs, and protective coatings to enhance rotor lifespan and braking consistency. The 120.65100 rotor benefits from these features, providing a reliable replacement option for Ford F-150 and Lincoln Mark LT vehicles requiring vented, floating rotors.

Technical Specifications and Features

This disc brake rotor features a vented design that improves heat dissipation during braking, reducing the risk of brake fade. The floating mounting type allows slight movement to accommodate thermal expansion, which helps maintain consistent braking performance. The rotor has a coated hat finish to protect against rust and corrosion, extending service life. With a nominal thickness of 30 mm and a discard thickness of 28.5 mm, it ensures safe replacement intervals. The rotor measures 330 mm in outside diameter and includes 6 bolt holes arranged on a 135 mm bolt circle diameter, matching the hub and wheel specifications of compatible vehicles.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford F-150 and Lincoln Mark LT
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking consistency under heavy load or towing conditions
• Prevents premature rotor corrosion with coated hat finish
• Supports safe braking performance by maintaining proper rotor thickness

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (28.5 mm) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Use proper torque specifications on the 6 mounting bolts
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. The 120.65100 rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
