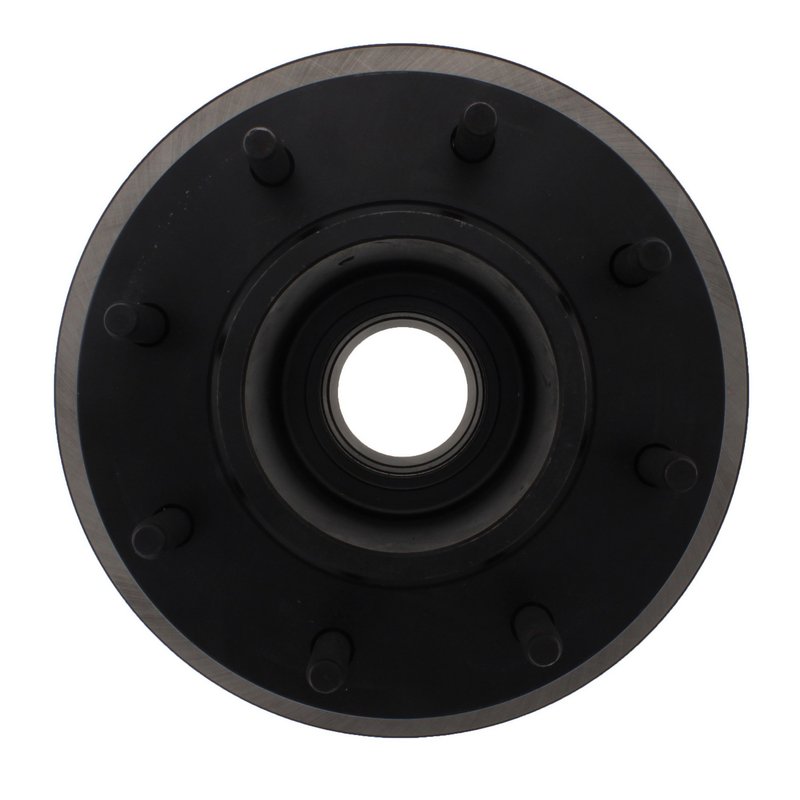

Centric 120.65117 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford F-350 Super Duty

The Centric Premium Disc Brake Rotor 120.65117 is engineered to meet the braking demands of the Ford F-350 Super Duty. Designed with precision, this vented rotor ensures consistent performance and durability under heavy-duty conditions.

• Compatible with Ford F-350 Super Duty models
• Part number: 120.65117 for accurate identification
• Vented disc design for improved heat dissipation
• Coated hat finish to resist corrosion
• Includes ABS tone ring for sensor compatibility
• 8 bolt holes with 14mm stud thread diameter
• Nominal thickness of 38.0 mm and discard thickness of 36.4 mm
• Overall diameter of 347 mm (13.661 inches)

Product Line: Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors with enhanced durability and performance for heavy-duty vehicles. This product line features rotors with vented designs and coated hats to reduce corrosion and improve heat management. The inclusion of ABS tone rings ensures compatibility with modern braking systems, making it suitable for demanding applications such as the Ford F-350 Super Duty.

Detailed Product Description

This Centric Premium Disc Brake Rotor 120.65117 is a vented rotor designed to optimize heat dissipation during braking, reducing the risk of brake fade. The rotor features a smooth surface type for consistent pad contact and braking efficiency. Its coated hat finish provides protection against rust and corrosion, extending the rotor's service life. The rotor measures 347 mm in outside diameter with an overall height of 213 mm, fitting precisely on the Ford F-350 Super Duty. The 8-bolt hole pattern with a 200 mm bolt circle diameter and 14 mm stud thread diameter ensures secure mounting. Additionally, the rotor includes an ABS tone ring, maintaining proper function of the vehicle's anti-lock braking system.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Ford F-350 Super Duty
• Improves braking performance by reducing heat buildup
• Restores ABS sensor functionality with included tone ring
• Prevents corrosion-related rotor damage with coated hat finish
• Eliminates brake noise and vibration caused by uneven rotor surfaces

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 36.4 mm before installation. Clean the hub surface thoroughly to prevent rotor runout. Verify the 8-bolt hole pattern and stud thread diameter (14 mm) match your vehicle specifications. The included ABS tone ring must be properly aligned for accurate sensor readings. Use proper torque specifications when mounting the rotor to avoid warping.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 120.65117 rotor undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship.
