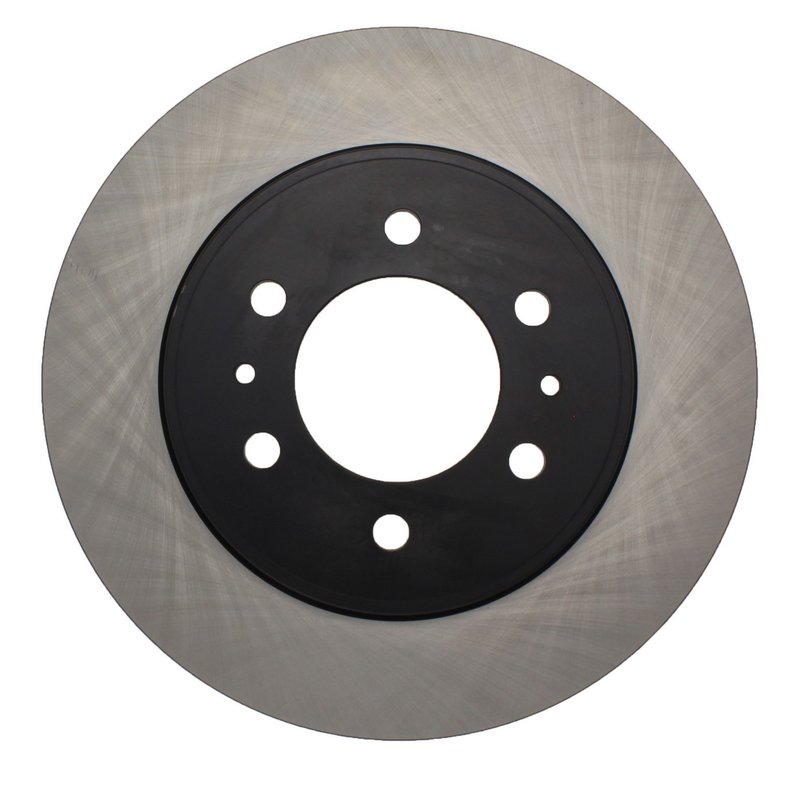

Centric 120.65130 Disc Brake Rotor - Front

Centric Premium Disc Brake Rotor for Ford F-150

Centric Premium Disc Brake Rotor 120.65130 is a front vented rotor built for the 2009 Ford F-150 with a 6-lug configuration. It combines a smooth braking surface with a coated hat and Centric’s electrocoated finish for corrosion resistance in demanding road conditions.

For drivers searching for a 2009 Ford F-150 front brake rotor, this Centric Premium Disc Brake Rotors part number 120.65130 is engineered to match the listed fitment and dimensional requirements. It is also cross-referenced to Raybestos Brakes 680754 and 680754R for the same application.

Key Features

• Part number 120.65130 from Centric Premium Disc Brake Rotors
• Fits 2009 Ford F-150, front
• Vented rotor design with straight vane style
• Smooth surface type for consistent pad contact
• Electrocoated finish for long-lasting corrosion protection
• Coated hat finish for added resistance to rust at the hub area
• 6 bolt holes, 135 mm bolt circle, 90.1 mm center hole
• Outside diameter: 330 mm; nominal thickness: 30 mm

Product Details

Centric Premium Disc Brake Rotors are built around an electrocoating finish rather than a basic phosphate coating. That matters on a front brake rotor because heat, moisture, and road exposure can quickly reduce the effectiveness of lighter protective finishes. The coated surface helps the rotor resist corrosion after installation, while the vented construction supports heat management during repeated braking.

This rotor is specified for the 2009 Ford F-150 front axle with a 6-lug setup and floating disc mounting. The dimensions, including 330 mm outside diameter and 30 mm nominal thickness, align with the listed application for accurate brake service and replacement.

Common Problems This Rotor Can Address

• Rust buildup on the rotor hat or braking surface
• Brake pulsation caused by worn or out-of-spec rotors
• Reduced braking consistency from heat-related wear
• Noisy braking from uneven rotor surfaces
• Front brake service needs on a 2009 Ford F-150

Installation Notes and Tips

Verify the vehicle’s 6-lug front brake configuration before installation. Confirm rotor dimensions, hub bore, and bolt circle against the existing part to ensure proper fit on the 2009 Ford F-150. Clean the hub mounting surface before installing the rotor to help reduce runout and support even pad contact.

After installation, follow the brake pad bedding procedure recommended for the pads being used. This helps establish consistent friction transfer and supports smooth braking performance.

Quality Assurance

Centric Premium Disc Brake Rotors use an electrocoated finish designed to withstand extended salt-water exposure without rusting, offering stronger corrosion protection than phosphate-coated alternatives. The 120.65130 rotor is built to the listed OE-style dimensions for the 2009 Ford F-150 front application.
