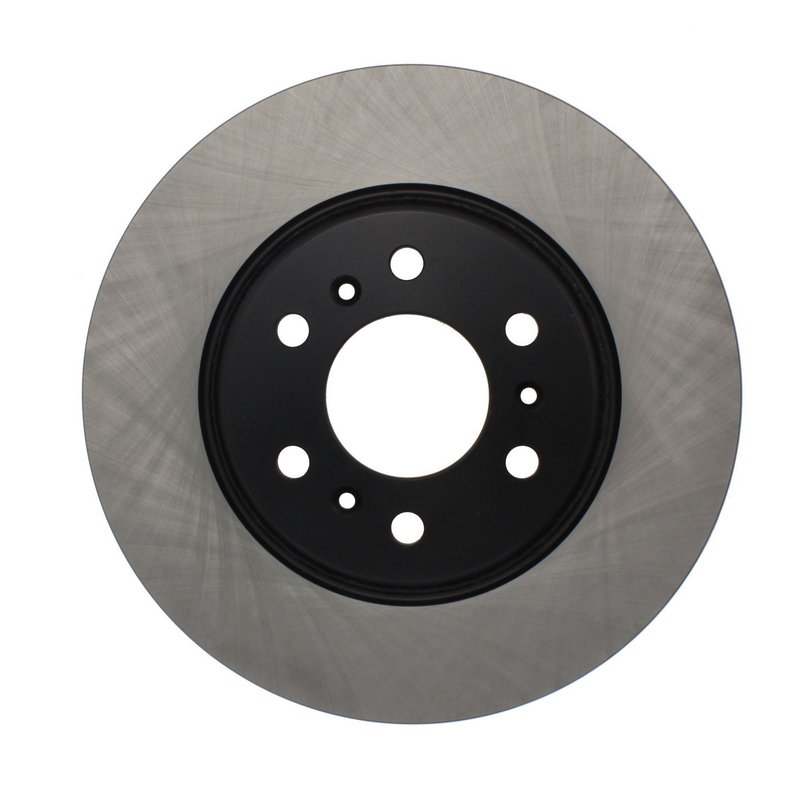

Centric 120.66061 Disc Brake Rotor - Front

Centric Premium Front Brake Rotor

Centric Premium Disc Brake Rotor 120.66061 is a front vented rotor built for direct replacement on select Chevrolet, Pontiac, Buick, and Saturn applications. It uses an electrocoated finish for corrosion resistance and a smooth braking surface for consistent pad contact.

Key Features

• Centric Premium Disc Brake Rotors line
• Part number 120.66061
• Front position rotor for confirmed applications
• Vented rotor design with pillar vane style
• Electrocoated finish on the hat for corrosion protection
• Smooth surface type for even brake pad engagement
• 6-bolt pattern with 114.3 mm bolt circle
• 297 mm outside diameter and 70.8 mm center hole diameter
• Nominal thickness: 32.2 mm; discard thickness: 30.7 mm

Product Details

Centric Premium Disc Brake Rotors are engineered with an electrocoating finish that helps protect the rotor from rust after installation. Unlike basic phosphate coatings that mainly protect during storage, the coated surface is built to hold up in wet, salty conditions and maintain appearance and function over time. This rotor measures 297 mm in outside diameter, 52.2 mm in overall height, and uses a floating mounting type with a 6-lug pattern. It is a direct-fit front rotor for 2006-2009 Chevrolet Uplander, 2006-2009 Pontiac Montana, 2006-2007 Buick Terraza, and 2006-2007 Saturn Relay. This part cross-references Raybestos Brakes 580371 and Carlson 41212 for the same application.

What It Helps Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Rust buildup on exposed rotor surfaces
• Reduced braking consistency from rotor wear
• Noise or vibration related to rotor condition
• Front brake service needs on listed vehicles

Installation Notes

Verify rotor diameter, center hole size, bolt pattern, and thickness before installation. Clean the hub mounting surface and inspect pads, calipers, and hardware condition during brake service. Confirm fitment for the front axle on the specific vehicle before ordering. Fits 2006-2009 Chevrolet Uplander, front. Fits 2006-2009 Pontiac Montana, front. Fits 2006-2007 Buick Terraza, front. Fits 2006-2007 Saturn Relay, front.

Quality Assurance

Centric Premium Disc Brake Rotors use an electrocoated finish for long-lasting corrosion protection and are built to meet the dimensional requirements listed for the confirmed applications. Part number 120.66061 is matched to the specified front vehicle fitments and interchange references.
