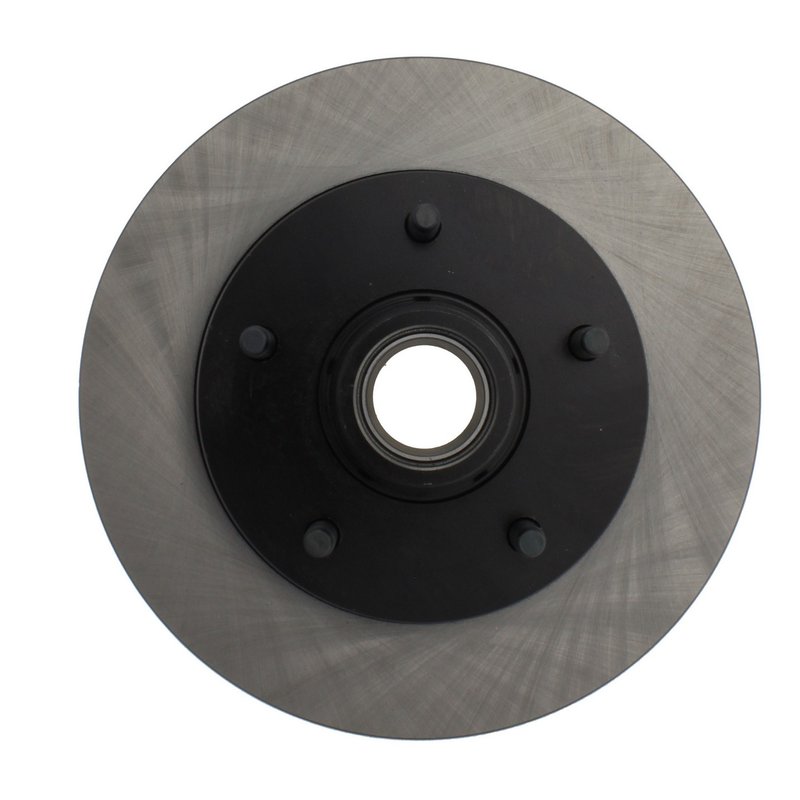

Centric 120.67028 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.67028

The Centric Premium Disc Brake Rotor 120.67028 is engineered for reliable braking performance on Dodge Ram 1500 models. Designed to meet OEM specifications, this vented rotor ensures consistent heat dissipation and smooth braking under various driving conditions.

• Compatible with Dodge Ram 1500
• Part number: 120.67028
• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• Includes ABS tone ring for sensor compatibility
• 5 bolt holes with 0.500 inch stud thread diameter
• Nominal thickness of 1.283 inches (32.6 mm)
• Outside diameter of 11.614 inches (295 mm)
• Overall height of 4.508 inches (114.5 mm)

Detailed Product Features and Specifications

This Centric Premium Disc Brake Rotor features a vented design that improves heat dissipation, reducing the risk of brake fade during heavy use. The rotor has a nominal thickness of 1.283 inches (32.6 mm) and a discard thickness of 1.215 inches (30.86 mm), ensuring a long service life before replacement is necessary. The smooth surface type promotes even pad wear and quiet braking. The rotor’s hat is coated to resist corrosion, extending its durability in harsh environments.

With an outside diameter of 11.614 inches (295 mm) and an overall height of 4.508 inches (114.5 mm), this rotor fits precisely on the Dodge Ram 1500’s hub assembly. It includes a 5-bolt hole pattern with a 0.500 inch stud thread diameter and a mounting bolt hole circle diameter of 139.7 mm, matching OEM specifications. The rotor also comes equipped with an ABS tone ring, ensuring compatibility with the vehicle’s anti-lock braking system.

About Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line is designed to provide a balance of performance and durability for a wide range of vehicles. This product line focuses on meeting or exceeding OEM standards, offering rotors with features such as vented designs for improved cooling, coated hats for corrosion resistance, and precise fitment for reliable installation. The 120.67028 rotor is part of this line, delivering consistent braking performance for Dodge Ram 1500 owners.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for better heat management
• Resolving noise issues due to uneven rotor surfaces
• Ensuring ABS sensor functionality with included tone ring
• Addressing corrosion-related rotor degradation

Installation Notes and Tips

When installing the Centric Premium Disc Brake Rotor 120.67028, ensure the hub surface is clean and free of debris to promote proper rotor seating. Verify the rotor thickness before installation to confirm it meets nominal specifications. Use the correct torque settings on the 5 mounting bolts to avoid rotor warping. The included ABS tone ring should be handled carefully to maintain sensor accuracy. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards and OEM specifications. While specific warranty details for part number 120.67028 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Users should consult product documentation or Centric directly for warranty terms related to this rotor.
