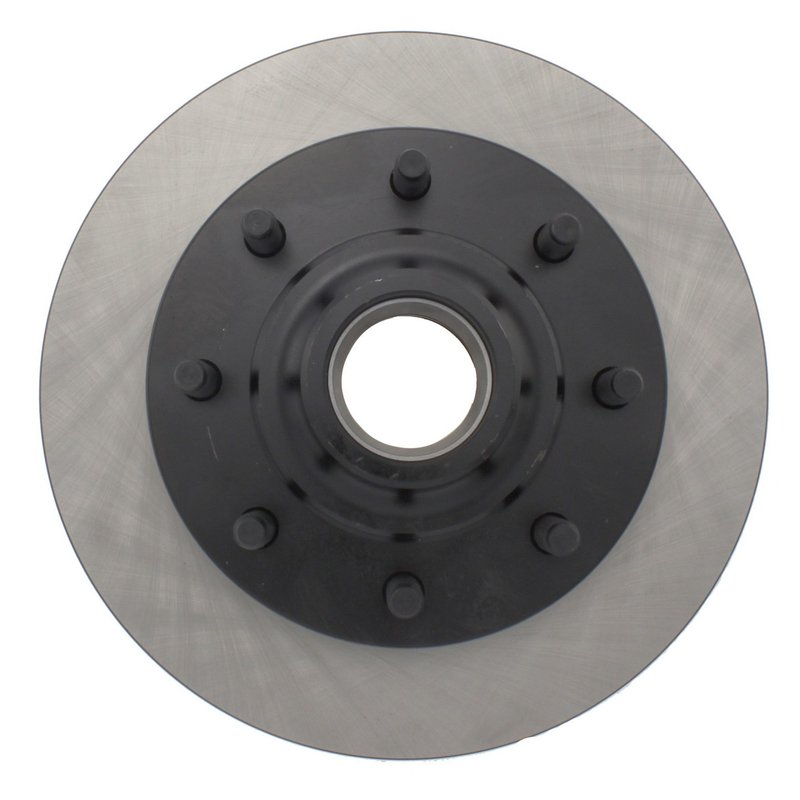

Centric 120.67030 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.67030

The Centric Premium Disc Brake Rotor 120.67030 is engineered for reliable braking performance on Dodge Ram 2500 trucks. Designed to meet or exceed OEM specifications, this vented rotor ensures consistent heat dissipation and durability under demanding conditions.

• Compatible with Dodge Ram 2500 models
• Part number 120.67030 for precise identification
• Vented disc brake rotor design for improved cooling
• Coated hat finish to resist corrosion
• Includes ABS tone ring for sensor compatibility
• Eight bolt holes with 0.563 inch stud thread diameter
• Nominal thickness of 1.287 inches (32.7 mm) and discard thickness of 1.201 inches (30.51 mm)
• Overall diameter of 12.512 inches (317.8 mm)

Features and Specifications

This Centric Premium Disc Brake Rotor features a vented design that enhances heat dissipation, reducing the risk of brake fade during heavy use. The rotor has a smooth surface type for consistent pad contact and braking efficiency. The coated hat finish provides corrosion resistance, extending the rotor's service life. It includes an ABS tone ring, ensuring compatibility with the vehicle's anti-lock braking system. The rotor measures 12.512 inches in outside diameter with an overall height of 5.177 inches (131.5 mm), and it mounts using eight bolt holes with a 6.5-inch bolt hole circle diameter.

About Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line is designed to offer a balance of performance and durability for a wide range of vehicles. These rotors are manufactured to meet strict quality standards and provide reliable braking under various driving conditions. The 120.67030 rotor is part of this line, delivering consistent stopping power and fitment accuracy for Dodge Ram 2500 trucks.

Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Restores braking performance affected by rotor corrosion or scoring
• Compatible upgrade for vehicles requiring ABS tone ring functionality
• Addresses overheating issues with vented rotor design
• Ensures proper fitment for Dodge Ram 2500 brake systems

Installation Notes and Tips

When installing the Centric Premium Disc Brake Rotor 120.67030, ensure the mounting surface is clean and free of debris. Verify the rotor thickness is within nominal specifications before installation. Use proper torque settings on the eight mounting bolts to avoid rotor distortion. Confirm ABS sensor alignment with the included tone ring for optimal system performance.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. While specific warranty details for part number 120.67030 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
