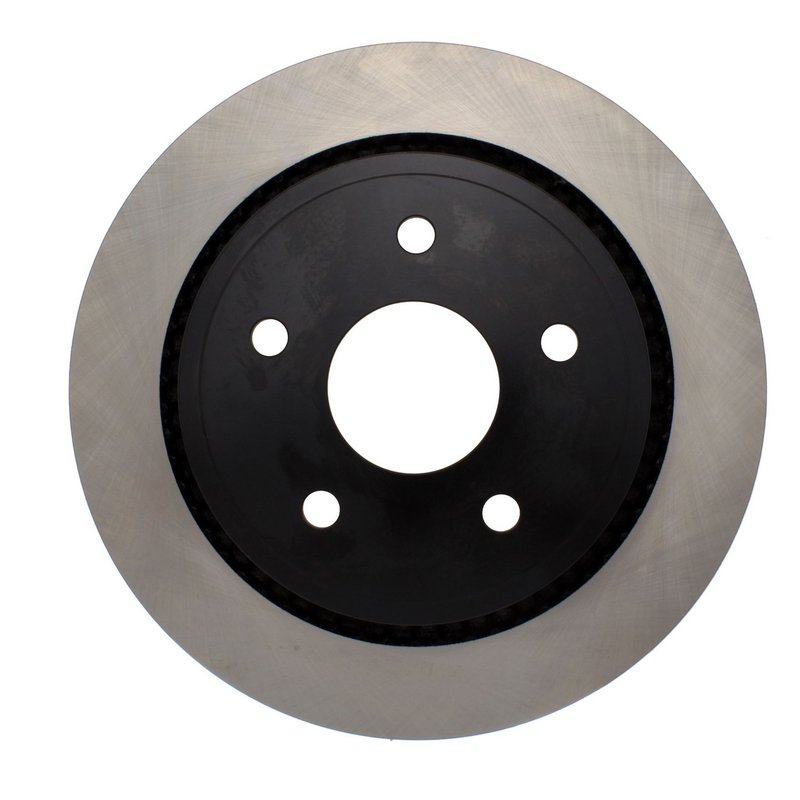

Centric 120.67054 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Chrysler, Dodge, and Ram Vehicles

The Centric Premium Disc Brake Rotor 120.67054 is engineered to provide consistent braking performance for select Chrysler, Dodge, and Ram models. Designed with precision, this vented rotor ensures effective heat dissipation and durability for vehicles like the Ram 1500, Dodge Durango, and Chrysler Aspen.

• Vented disc brake rotor with smooth surface finish
• Coated hat finish for corrosion resistance
• 5 bolt hole configuration with 140 mm bolt circle diameter
• Nominal thickness of 22 mm and discard thickness of 20.4 mm
• Outside diameter of 352 mm (13.858 inches) and overall height of 72 mm
• Compatible with Chrysler, Dodge, and Ram models including Ram 1500 and Dodge Dakota

About Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing processes to ensure reliable braking performance and long service life. The 120.67054 rotor features a vented design to improve heat dissipation, reducing the risk of brake fade during demanding driving conditions.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 22 mm and a discard thickness of 20.4 mm, ensuring safe replacement intervals. The rotor’s outside diameter measures 352 mm (13.858 inches), with an overall height of 72 mm. It includes a coated hat finish to resist corrosion and a smooth surface type for consistent pad contact. The rotor is vented, which enhances cooling efficiency compared to solid rotors. It has a 5-bolt hole pattern with a 140 mm bolt circle diameter, compatible with specific Chrysler, Dodge, and Ram models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ram 1500 and Dodge Durango
• Improves braking performance by restoring proper rotor thickness and surface
• Addresses brake noise and vibration caused by uneven rotor wear
• Prevents brake fade through enhanced heat dissipation with vented design
• Corrosion resistance extends rotor life in harsh environments

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 20.4 mm before installation. Clean the rotor surface to remove any protective coatings or contaminants. Verify the 5-bolt hole pattern and 140 mm bolt circle diameter match your vehicle’s hub. Use proper torque specifications when mounting to avoid rotor warping. This rotor does not include bearings or an ABS tone ring, so verify compatibility with your vehicle’s braking system.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards and OEM specifications. The 120.67054 rotor undergoes rigorous testing to ensure durability and performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
