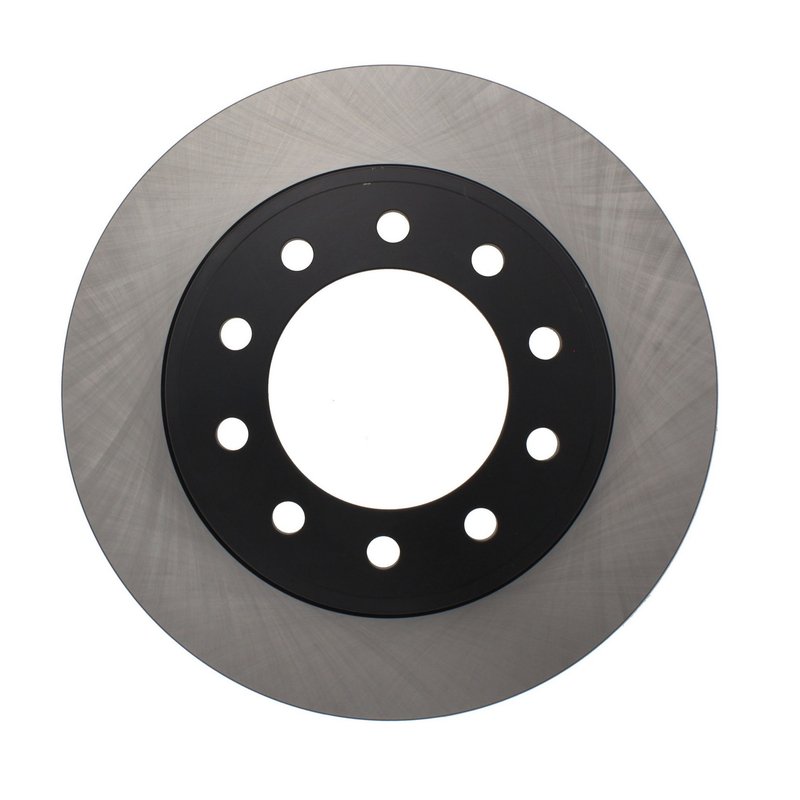

Centric 120.67070 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.67070

The Centric Premium Disc Brake Rotor 120.67070 is engineered for reliable braking performance in a variety of vehicle applications. Designed as a vented, floating rotor with a coated hat finish, this rotor offers durability and consistent heat dissipation for vehicles requiring a 10-bolt hole pattern.

• Part Number: 120.67070
• Brand Line: Centric Premium Disc Brake Rotors
• Vented disc brake rotor for improved cooling
• Coated hat finish to resist corrosion
• 10 bolt holes with a 170 mm bolt circle diameter
• Nominal thickness of 39.0 mm and discard thickness of 37.4 mm
• Overall diameter of 390.3 mm (15.366 inches)
• Center hole diameter of 125 mm (4.921 inches)
• Smooth surface type for consistent pad contact
• Floating disc mounting design

Detailed Product Description

The Centric Premium Disc Brake Rotors line is designed to meet or exceed OEM specifications, providing a balance of performance and durability. The 120.67070 rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. Its floating disc mounting allows for slight movement between the rotor and hub, which helps maintain even pad contact and reduces stress on the braking system.

This rotor has a nominal thickness of 39.0 mm and a discard thickness of 37.4 mm, ensuring a long service life before replacement is necessary. The coated hat finish protects against rust and corrosion, extending the rotor's usable life. With 10 bolt holes arranged on a 170 mm bolt circle diameter, this rotor is compatible with vehicles requiring this specific mounting pattern. The smooth surface type ensures consistent braking performance and pad wear.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat management
• Addressing rotor corrosion and surface degradation
• Resolving uneven brake pad wear due to rotor thickness variations
• Ensuring compatibility with vehicles requiring a 10-bolt hole pattern and 170 mm bolt circle diameter

Installation Notes and Tips

When installing the Centric Premium Disc Brake Rotor 120.67070, ensure the rotor thickness is above the discard thickness of 37.4 mm to maintain safe braking performance. The floating disc mounting requires proper alignment with the hub to allow for slight movement. Clean the rotor surface before installation to remove any protective coatings or contaminants. Verify the 10-bolt hole pattern and 170 mm bolt circle diameter match the vehicle specifications. This rotor does not include bearings or ABS tone rings, so those components must be sourced separately if required.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The 120.67070 rotor undergoes rigorous testing to comply with OEM specifications. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
