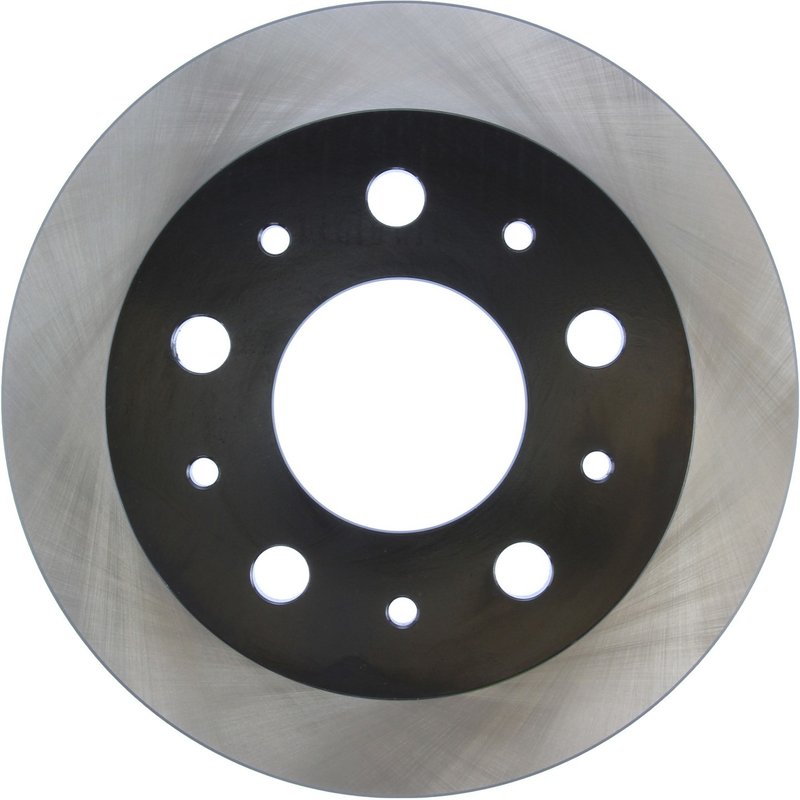

Centric 120.67077 Disc Brake Rotor - Rear

Overview of Centric Premium Disc Brake Rotor 120.67077

The Centric Premium Disc Brake Rotor 120.67077 is engineered for reliable braking performance on Ram ProMaster 1500, 2500, 3500, and ProMaster Rapid models. Designed as a solid rotor with a smooth surface and coated hat finish, it meets precise specifications to ensure consistent stopping power and durability.

• Compatible with Ram ProMaster 1500, 2500, 3500, and ProMaster Rapid
• Part number 120.67077 for exact fitment
• Solid disc brake rotor with smooth surface for consistent pad contact
• Coated hat finish to resist corrosion and extend service life
• 5 bolt holes with 130 mm bolt circle diameter for secure mounting
• Nominal thickness of 16.0 mm and discard thickness of 14.2 mm
• Overall diameter of 279.9 mm (11.02 inches) and height of 82.1 mm

Centric Premium Disc Brake Rotors Product Line

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications for fit, form, and function. This product line emphasizes precision manufacturing and quality materials, providing rotors that maintain consistent thickness and surface finish. The 120.67077 rotor benefits from this approach, offering a solid rotor design with a coated hat to reduce corrosion and improve longevity on Ram ProMaster vehicles.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 16.0 mm (0.630 inches) and a discard thickness of 14.2 mm (0.559 inches), ensuring safe replacement intervals. The rotor’s outside diameter measures 279.9 mm (11.02 inches), with an overall height of 82.1 mm (3.232 inches). It includes 5 bolt holes arranged on a 130 mm (5.118 inches) bolt circle diameter, compatible with the Ram ProMaster’s hub assembly. The rotor is solid type with a smooth braking surface, designed for consistent pad wear and braking performance. The coated hat finish helps protect against rust and corrosion, extending the rotor’s service life. This rotor does not include an ABS tone ring or bearings.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ram ProMaster 1500, 2500, 3500, and ProMaster Rapid
• Addresses brake pulsation caused by uneven rotor thickness
• Restores braking efficiency and reduces stopping distances
• Prevents corrosion-related rotor damage with coated hat finish
• Ensures proper fitment and alignment with 5 bolt holes and correct bolt circle diameter

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 14.2 mm
• Clean hub surface to ensure proper rotor seating and prevent runout
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Check for ABS sensor compatibility as this rotor does not include a tone ring

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards, ensuring consistent dimensions and material integrity. While specific warranty details for part number 120.67077 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Users should consult product documentation or Centric directly for warranty terms related to this rotor.
