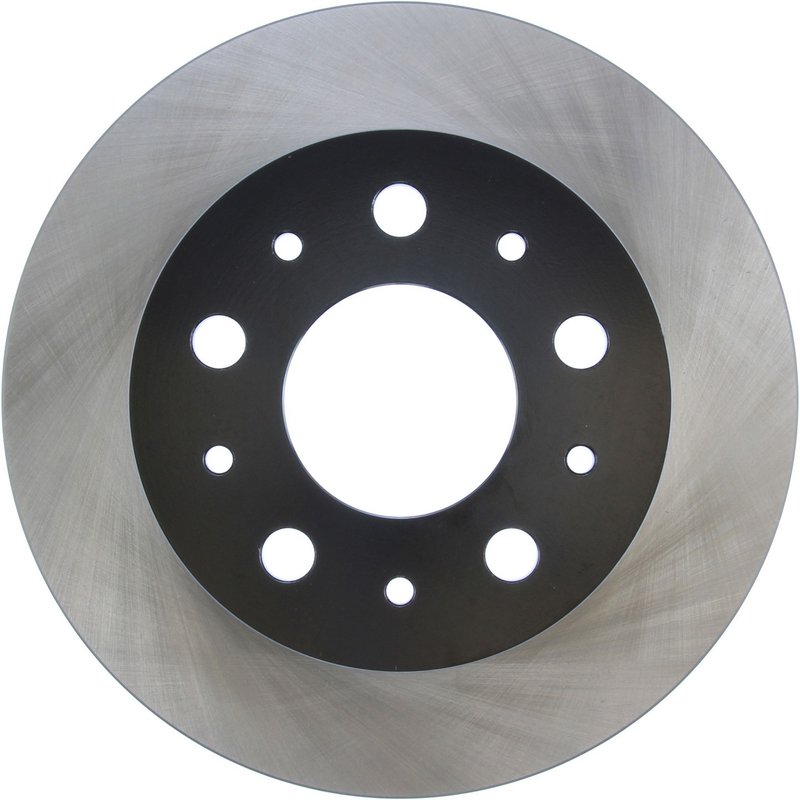

Centric 120.67079 Disc Brake Rotor - Rear
| Brand | Centric 120.67079 |
|---|---|
| Position | Rear |
| 130.0 | |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| Center Hole Diameter | 3.110 |
| Center Hole Diameter | 79.000 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 0.783 |
| Discard Thickness | 19.9 |
| Discard Thickness | 19.900 |
| Hat Finish | Coated |
| Hat ID [cntrc] in | 6.630 |
| Hat ID [cntrc] mm | 168.400 |
| Height | 80.2 |
| Hub Hole/Whl Reg mm | 79.0 |
| Misc Holes [cntrc] | 5 |
| Mounting Bolt Hole Circle Diameter | 5.118 |
| Mounting Bolt Hole Circle Diameter | 130.000 |
| Mounting Type | Floating |
| Nominal Thickness | 0.866 |
| Nominal Thickness | 22.0 |
| Nominal Thickness | 22.000 |
| OEM Vane Count [cntrc] | 93 |
| Outside Diameter | 11.811 |
| Outside Diameter | 300.0 |
| Outside Diameter | 300.000 |
| Overall Height | 3.157 |
| Overall Height | 80.200 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.693 |
| Stud/Lug Hole Diameter | 17.600 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Pillar |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] kgs | 8.600 |
| Weight [cntrc] lbs | 18.950 |
| Product line | Centric Premium Disc Brake Rotors |
| Fits | Ram and Fiat · 22 vehicles |
Corrosion-resistant finish. Electrocoating helps protect the rotor from rust after installation.
Vented design. Promotes airflow to help manage heat during braking.
Smooth surface. Provides consistent contact for dependable braking performance.
Cross-references MAHLE 72119, Mopar 68195534AC and Raybestos Brakes 781138 for the same application. See all 23.
Centric Premium Rear Brake Rotor
Centric Premium Disc Brake Rotor 120.67079 is a rear vented rotor built for Ram ProMaster applications that need consistent braking performance and corrosion protection. It uses an electrocoated finish on the hat and rotor surfaces to help resist rust after installation, especially in wet or salted-road conditions.
Compatible with 2014-2020 Ram ProMaster 1500, ProMaster 2500, and ProMaster 3500 rear brake applications, this rotor is also listed for the 2017 Ram ProMaster Rapid rear position. The Centric Premium Disc Brake Rotors line focuses on OE-style fitment with finish protection that goes beyond basic storage coatings.
Key Features
- Part number: 120.67079
- Rear disc brake rotor for vented rear disc applications
- Outside diameter: 300.0 mm (11.811 in)
- Nominal thickness: 22.0 mm (0.866 in)
- Discard thickness: 19.9 mm (0.783 in)
- Overall height: 80.2 mm (3.157 in)
- Center hole diameter: 79.0 mm (3.110 in)
- 5-bolt hole pattern with 130.0 mm bolt circle
- Coated hat finish and smooth surface type
- Pillar vane style with floating mounting type
Product Details
Centric Premium Disc Brake Rotors are engineered with an electrocoating finish that helps protect the rotor from corrosion after service. Unlike basic phosphate coatings that mainly protect during shipping and storage, the e-coat finish is designed to hold up under heat and moisture exposure. For Ram ProMaster 1500, Ram ProMaster 2500, and Ram ProMaster 3500 rear brake service, 120.67079 provides the dimensions and vented construction needed for proper replacement fitment.
This rotor cross-references Raybestos Brakes 781138 and 781138R for the same application.
What It Helps Address
- Rear brake pulsation from worn or uneven rotor surfaces
- Corrosion on exposed rotor areas after installation
- Brake noise caused by rotor surface irregularity
- Reduced braking consistency from rotor wear beyond discard thickness
- Fitment issues when replacing a vented rear rotor on Ram ProMaster models
Installation Notes
Verify rotor dimensions, hub bore, bolt pattern, and vented rear configuration before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Always inspect pads, caliper hardware, and wheel bearings during rotor replacement, and confirm the rotor is within service limits before reuse or replacement.
Fits 2014-2017 Ram ProMaster 1500, rear; Fits 2014-2017 Ram ProMaster 2500, rear; Fits 2014-2017 Ram ProMaster 3500, rear; Fits 2018-2020 Ram ProMaster 1500, rear; Fits 2018-2020 Ram ProMaster 2500, rear; Fits 2018-2020 Ram ProMaster 3500, rear; Fits 2017 Ram ProMaster Rapid, rear.
Quality Assurance
Centric Premium Disc Brake Rotors are built with corrosion-resistant electrocoating and OE-style dimensional specifications for service replacement use. Part number 120.67079 is listed with confirmed vehicle fitment for Ram ProMaster rear brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Ram | ProMaster 1500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2020 | Ram | ProMaster 2500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2020 | Ram | ProMaster 3500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2019 | Ram | ProMaster 1500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2019 | Ram | ProMaster 2500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2019 | Ram | ProMaster 3500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2018 | Ram | ProMaster 1500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2018 | Ram | ProMaster 2500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2018 | Ram | ProMaster 3500 | Rear | Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2017 | Ram | ProMaster 1500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2017 | Ram | ProMaster 2500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2017 | Ram | ProMaster 3500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2017 | Ram | ProMaster Rapid | Rear | Vented Front Disc; Centric Premium Disc Brake Rotors |
| 2016 | Ram | ProMaster 1500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2016 | Ram | ProMaster 2500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2016 | Ram | ProMaster 3500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2015 | Ram | ProMaster 1500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2015 | Ram | ProMaster 2500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2015 | Ram | ProMaster 3500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2014 | Ram | ProMaster 1500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2014 | Ram | ProMaster 2500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
| 2014 | Ram | ProMaster 3500 | Rear | Heavy Duty Brakes; Vented Rear Disc; Centric Premium Disc Brake Rotors |
