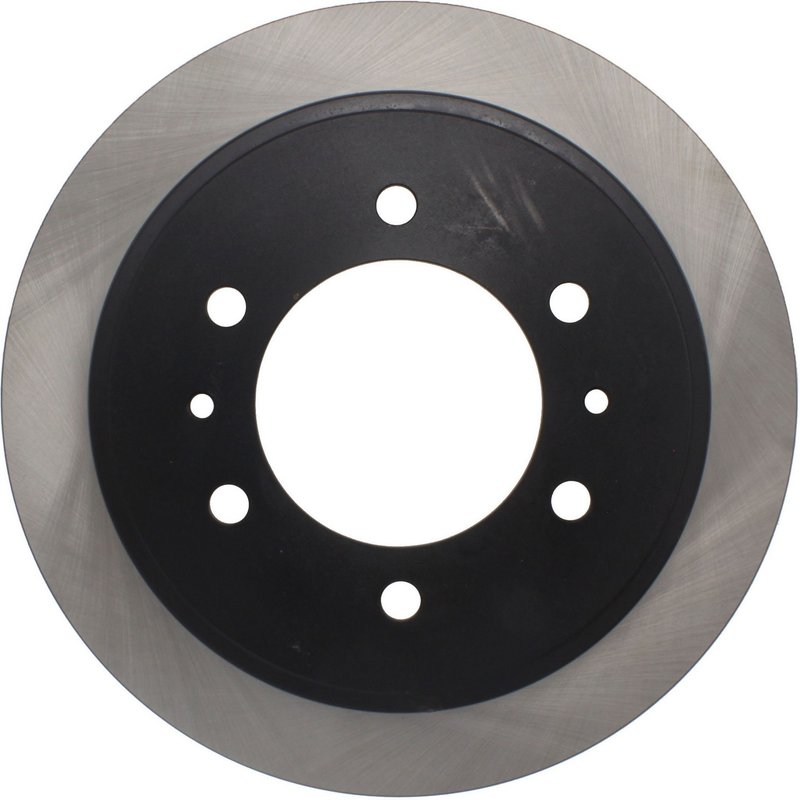

Centric 120.69002 Disc Brake Rotor - Rear

Overview of Centric Premium Disc Brake Rotor 120.69002

The Centric Premium Disc Brake Rotor 120.69002 is engineered for reliable braking performance on Hummer H3 and H3T models. Designed as a solid, smooth-surface rotor, it provides consistent stopping power and durability for your vehicle's braking system.

• Compatible with Hummer H3 and H3T models
• Part number 120.69002 for precise identification
• Solid disc brake rotor with smooth surface finish
• Nominal thickness of 12.000 mm and discard thickness of 10.500 mm
• Overall diameter of 312.000 mm and 6 bolt holes for mounting
• Floating mounting type for improved rotor alignment
• Weight approximately 6.5 kg

Product Line Details: Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications. This product line emphasizes precise manufacturing tolerances and quality materials to ensure consistent braking performance. The 120.69002 rotor maintains these standards with its solid construction and smooth surface, suitable for the braking demands of Hummer H3 and H3T vehicles.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 12.000 mm and a discard thickness of 10.500 mm, indicating the minimum thickness before replacement is necessary. The rotor has an outside diameter of 312.000 mm and an overall height of 68.000 mm. It includes 6 bolt holes with a mounting bolt hole circle diameter of 139.700 mm, ensuring proper fitment on compatible hubs. The center hole diameter measures 101.000 mm, and the rotor is designed with a floating mounting type to allow slight movement for better alignment and reduced stress on components. The smooth surface type supports consistent pad contact and braking efficiency.

Applications and Problem Solving

• Replacement for worn or warped rotors on Hummer H3 and H3T
• Addresses brake pulsation caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking performance
• Eliminates noise and vibration related to damaged rotors
• Supports consistent braking response under normal driving conditions

Installation Notes and Tips

When installing the Centric Premium Disc Brake Rotor 120.69002, ensure the rotor surface is clean and free of contaminants. Verify the rotor thickness before installation to confirm it meets nominal specifications. Use the correct torque settings for the 6 mounting bolts to avoid rotor distortion. Since this rotor does not include bearings or an ABS tone ring, reuse existing components if applicable. Proper bedding of brake pads after installation is recommended to optimize braking performance.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards, ensuring durability and reliable performance. The 120.69002 rotor undergoes rigorous testing to comply with OEM fit and function requirements. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
