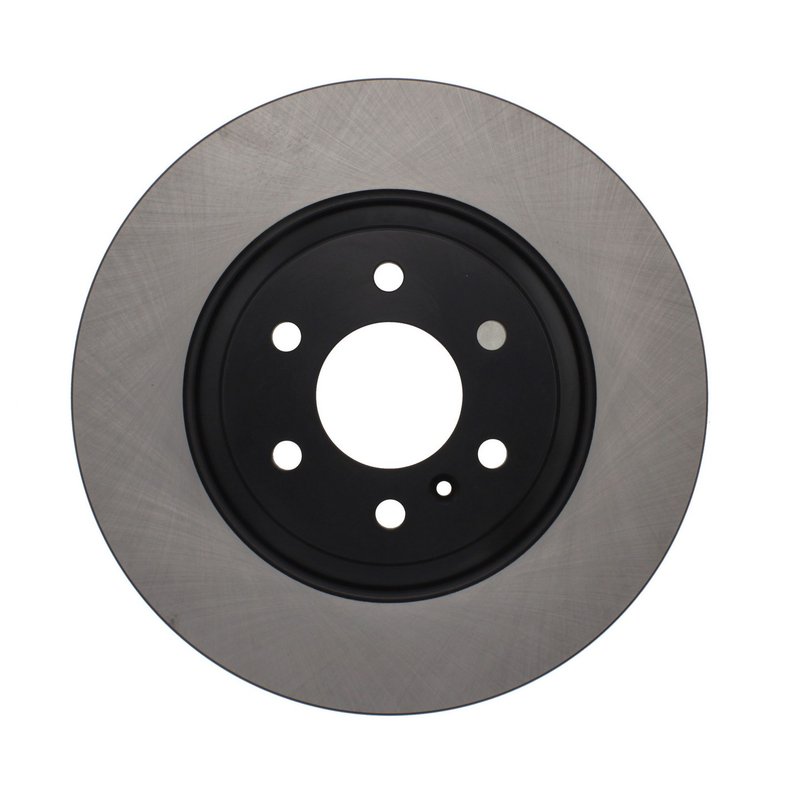

Centric 120.69004 Disc Brake Rotor - Front

Overview of Centric Premium Disc Brake Rotor 120.69004

The Centric Premium Disc Brake Rotor 120.69004 is engineered for reliable braking performance and durability. Designed as a vented disc brake rotor with a smooth surface, it provides consistent heat dissipation and stable stopping power for various vehicle applications.

• Vented rotor design for improved heat dissipation
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.209 inches (30.700 mm)
• Overall height of 2.051 inches (52.100 mm)
• Outside diameter measuring 12.571 inches (319.300 mm)
• Floating disc mounting with 6 stud/lug holes (0.563 inches diameter)
• Center hole diameter of 2.783 inches (70.700 mm)
• Weight approximately 22.15 lbs (10.07 kgs)
• ABS tone ring and bearings not included

Details on Centric Premium Disc Brake Rotors Line

The Centric Premium Disc Brake Rotors line focuses on delivering rotors that meet or exceed OEM specifications. This product line emphasizes precision manufacturing and material quality to ensure consistent braking performance and rotor longevity. The 120.69004 rotor exemplifies these standards with its vented design and exacting dimensional tolerances.

Technical Description and Specifications

This disc brake rotor features a vented construction that enhances airflow to reduce heat buildup during braking, which helps prevent brake fade. The smooth surface finish supports even pad contact and wear. With a nominal thickness of 1.260 inches (32.000 mm) and a discard thickness of 1.209 inches (30.700 mm), this rotor maintains safe operational limits. The overall height of 2.051 inches (52.100 mm) and outside diameter of 12.571 inches (319.300 mm) are designed to fit specific vehicle brake assemblies requiring these dimensions. The rotor mounts using a floating disc mounting system with six lug holes sized at 0.563 inches (14.300 mm) diameter on a 4.520 inch (114.800 mm) bolt circle diameter. Note that this rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat management
• Addressing rotor thickness below discard limits to restore braking safety
• Resolving uneven brake pad wear due to rotor surface imperfections
• Ensuring proper fitment for vehicles requiring 6-lug, 12.571 inch diameter rotors

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern compatibility with your vehicle before installation
• Ensure the rotor surface is clean and free of contaminants prior to mounting
• Use proper torque specifications on lug nuts to avoid rotor warping
• Check brake pads for wear and replace if necessary when installing new rotors
• Bleed brake system after installation to maintain optimal brake performance

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet stringent quality standards, ensuring durability and consistent braking performance. While specific warranty details for part number 120.69004 should be confirmed with the supplier, Centric typically offers limited warranties covering defects in materials and workmanship.
