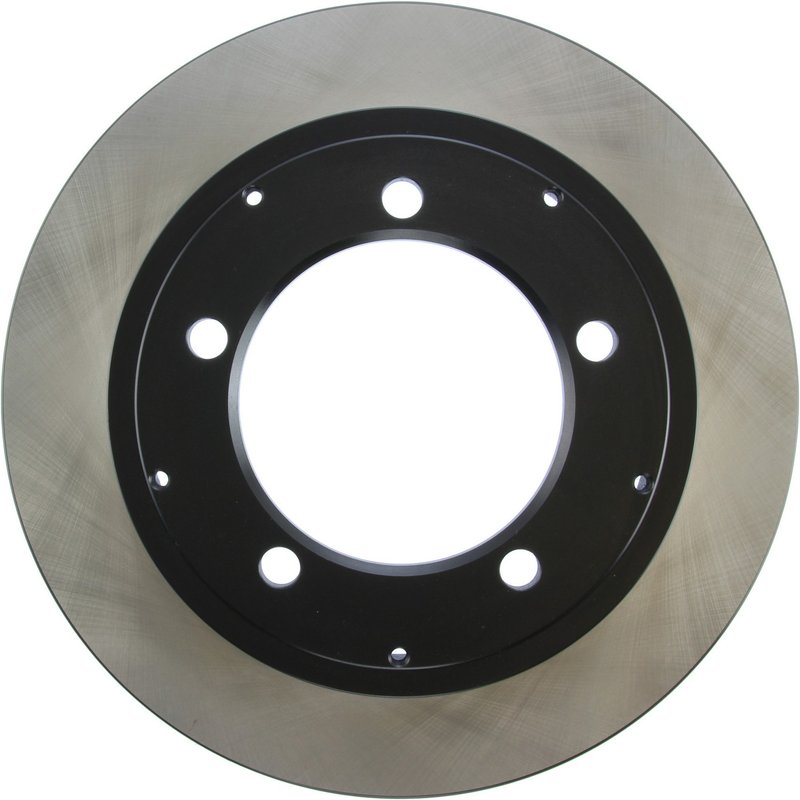

Centric 120.80008 Disc Brake Rotor - Front or Rear

Centric Premium Disc Brake Rotor 120.80008

Centric Premium Disc Brake Rotors are built for drivers who want consistent braking performance and corrosion resistance in everyday service. Part number 120.80008 uses an electrocoated finish to help protect the rotor surface after installation, especially in wet and salted-road conditions.

This rotor is a vented, smooth-surface, behind-the-hub design with a 14.748-inch outside diameter, 1.344-inch nominal thickness, and 1.225-inch discard thickness. It also features a 5-bolt pattern, 171.5 mm bolt circle, 137.2 mm center hole diameter, and straight vane construction. Notes indicate a hat-shaped rotor tapped for an ABS ring.

Centric Premium Rotor Line Details

The Centric Premium Disc Brake Rotors line focuses on corrosion protection and stable rotor finish quality. The electrocoating process is applied to help resist rust far beyond basic phosphate coatings, which are typically limited to storage protection. For vehicles that see frequent moisture exposure, this matters after the rotor is installed and exposed to heat, water, and road debris.

• Part number 120.80008
• Electrocoated finish for corrosion resistance
• Vented rotor with smooth surface
• Straight vane design
• Behind-the-hub mounting type
• 5-bolt, 171.5 mm bolt circle
• 14.748 in. outside diameter
• 137.2 mm center hole diameter
• Hat-shaped rotor tapped for ABS ring

What This Rotor Helps Address

• Brake pulsation caused by worn or heat-affected rotors
• Rust buildup on exposed rotor surfaces
• Reduced braking consistency in wet or salty conditions
• Rotor replacement needs on vehicles using a vented, behind-the-hub disc brake setup
• Fitment needs for applications cross-referencing 120.80008

Installation Notes and Tips

Verify rotor dimensions, hub diameter, bolt circle, and ABS ring requirements before installation. This rotor is not listed with bearings or ABS tone ring included. For proper brake service, inspect pads, caliper condition, and hub mounting surfaces at the same time. Fits applications cross-referencing 120.80008, including some Anchor 3159/3169/8512 and ATP 101840 references.

Compatible With select vehicle applications using the listed dimensions and mounting style. Fitment data was not provided in the source file, so vehicle-specific confirmation should be matched by part number and brake measurements before ordering. Part number 120.80008 is commonly searched for Centric Premium Disc Brake Rotor replacement needs.

Quality Assurance

Centric’s premium rotor finish is engineered for long-lasting corrosion protection, with electrocoating intended to withstand extended salt-water exposure better than basic phosphate coatings. The rotor is built to support dependable service in demanding road conditions while maintaining a clean, smooth braking surface.
