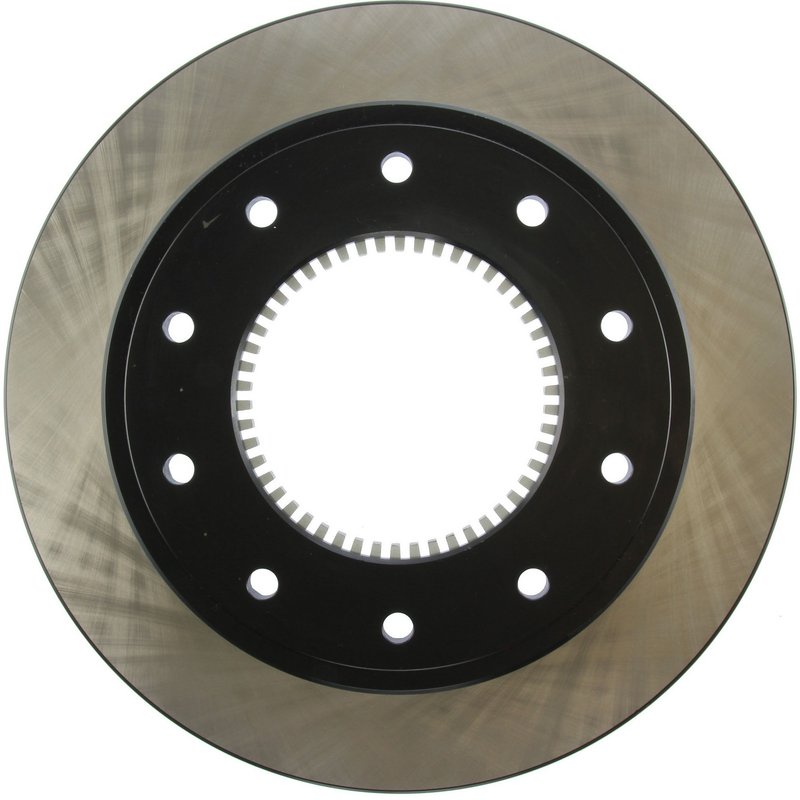

Centric 120.80017 Disc Brake Rotor - Rear

Centric Premium Disc Brake Rotor Overview

The Centric Premium Disc Brake Rotor, part number 120.80017, is built for drivers who need consistent braking performance and corrosion resistance in demanding conditions. Its vented, smooth-surface design and electrocoated finish make it a practical choice for brake service on vehicles that use a 390 mm rotor with a 10-bolt pattern.

Compatible With select applications such as the Toyota Land Cruiser and Lexus LX 570, this rotor is engineered around the dimensions and mounting details listed below. The Centric Premium Disc Brake Rotors line focuses on durable replacement rotors with protection that lasts beyond storage and shipping.

Key Features

• Part number 120.80017
• Electrocoated finish for long-lasting corrosion protection
• Vented rotor design with straight vanes
• Smooth surface type for brake pad contact
• Outside diameter: 390 mm (15.354 in.)
• Nominal thickness: 39.05 mm (1.537 in.)
• Discard thickness: 37.4 mm (1.472 in.)
• 10 bolt holes and 197.8 mm bolt circle diameter
• Center hole diameter: 137.2 mm
• ABS tone ring included
• Behind-the-hub disc mounting with floating / DIH mounting type

Detailed Description

Centric Premium Disc Brake Rotors are designed with an electrostatic coating that helps resist rust after installation, unlike phosphate finishes that are mainly effective during storage and transport. This rotor uses a vented, straight-vane construction with a hat-shaped, drum-in-hat layout, making it suitable for vehicles that require a large rear rotor assembly with integrated ABS tone ring support. The 390 mm outside diameter, 110.9 mm overall height, and 137.2 mm center hole diameter are important fitment points for brake replacement on the Toyota Land Cruiser and Lexus LX 570.

This part cross-references Carlson 41223 for the same application.

What This Rotor Helps Address

• Brake pulsation caused by worn or heat-affected rotors
• Rust buildup on exposed rotor surfaces
• Reduced braking consistency from rotor wear beyond discard thickness
• Noise or vibration related to uneven rotor surfaces
• Replacement needs for a 390 mm vented rear rotor assembly

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt pattern, and overall height before installation. This rotor uses a behind-the-hub mounting style and a drum-in-hat configuration, so confirm the parking brake and hub dimensions match the vehicle specification. Check the rotor thickness against service limits and inspect pads, calipers, and hub surfaces during brake service. Fits 2008-2021 Toyota Land Cruiser, rear. Fits 2008-2021 Lexus LX 570, rear.

Quality Assurance

Centric Premium Disc Brake Rotors use an electrocoating finish designed to withstand extended salt-water exposure without rusting, providing corrosion protection beyond what basic phosphate coatings typically offer. Part number 120.80017 is built to the dimensional and mounting specifications listed for the confirmed applications.
