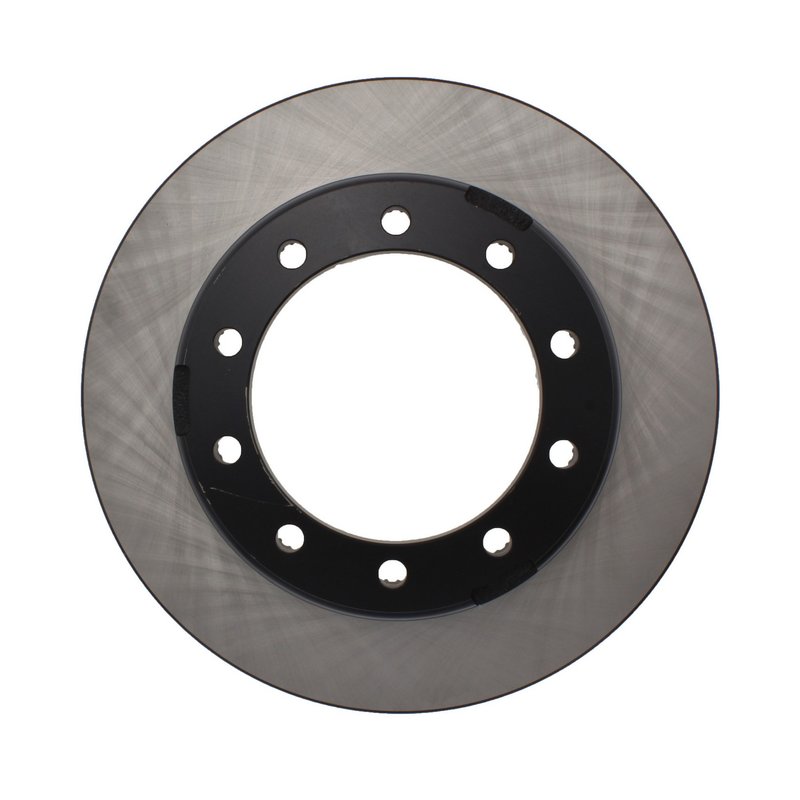

Centric 120.83013 Disc Brake Rotor - Front or Rear

Reliable Centric Premium Disc Brake Rotor for Precise Stopping

The Centric Premium Disc Brake Rotor 120.83013 offers dependable braking performance with a vented design and smooth surface finish. Engineered for vehicles requiring a 10-bolt mounting pattern and ABS tone ring compatibility, this rotor supports consistent heat dissipation and reliable ABS sensor operation.

• Vented disc brake rotor with smooth surface for effective heat management
• Nominal thickness of 36.6 mm and discard thickness of 33.53 mm for durability
• 10 mounting bolt holes with a 184.2 mm bolt circle diameter
• Includes ABS tone ring for seamless integration with ABS systems
• Hat-shaped rotor design with mounting behind the hub
• Outside diameter of 381 mm and center hole diameter of 152.2 mm

About Centric Premium Disc Brake Rotors

The Centric Premium Disc Brake Rotors line is designed to meet or exceed OEM specifications, providing reliable braking performance for a variety of vehicle applications. This product line features rotors with precise machining, vented designs for improved cooling, and ABS tone rings where required. The 120.83013 rotor exemplifies these qualities, making it suitable for vehicles that demand consistent stopping power and ABS compatibility.

Technical Details and Specifications

This disc brake rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade. The smooth surface finish ensures even pad contact and wear. With a nominal thickness of 36.6 mm and a discard thickness of 33.53 mm, the rotor maintains structural integrity over its service life. The rotor mounts behind the hub using 10 bolt holes arranged on a 184.2 mm bolt circle diameter, with each mounting bolt hole measuring approximately 14.9 mm in diameter. The overall height is 113 mm, and the rotor includes a cast-in ABS tone ring to support anti-lock braking systems. The outside diameter measures 381 mm, and the center hole diameter is 152.2 mm.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading to a rotor compatible with ABS-equipped vehicles
• Resolving brake noise or uneven pad wear due to rotor surface issues
• Addressing overheating problems with vented rotor design
• Ensuring proper fitment for vehicles requiring a 10-bolt mounting pattern

Installation Notes and Tips

Ensure the rotor is mounted behind the hub as specified. Verify the 10-bolt mounting pattern and bolt circle diameter of 184.2 mm for compatibility. Clean the rotor surface before installation to remove any protective coatings. Confirm ABS tone ring alignment with the vehicle’s ABS sensor to maintain proper function. Use a torque wrench to tighten mounting bolts to manufacturer specifications.

Quality Assurance and Warranty

Centric Premium Disc Brake Rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The 120.83013 rotor includes a cast-in ABS tone ring and is engineered for consistent thickness and heat dissipation. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
