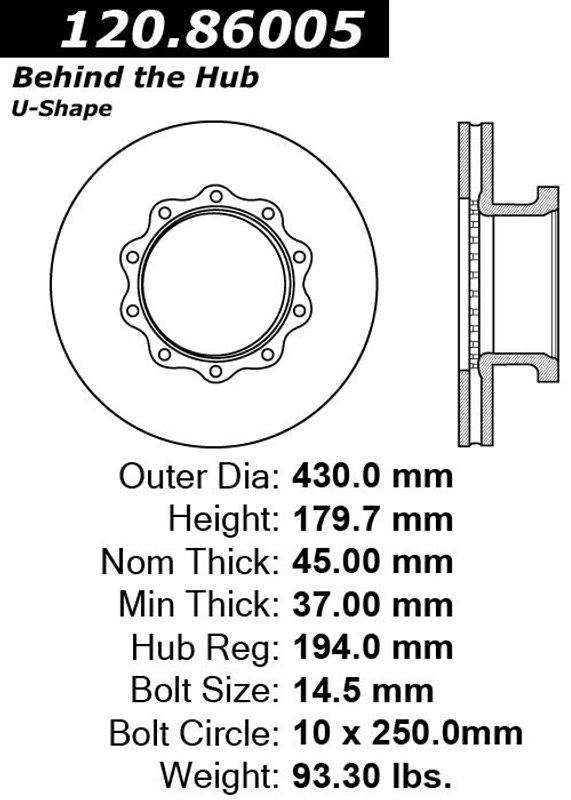

Centric 120.86005 Disc Brake Rotor - Rear
| Brand | Centric |
| Part Number | 120.86005 |
| Discard Thickness | 1.614 |
| Discard Thickness | 41.0 |
| Discard Thickness | 41.000 |
| Nominal Thickness | 1.772 |
| Nominal Thickness | 45.0 |
| Nominal Thickness | 45.000 |
| 143 | 250.0 |
| Bolt Hole Quantity | 10 |
| Overall Height | 179.832 |
| Overall Height | 7.080 |
| Outside Diameter | 17.100 |
| Outside Diameter | 434.34 |
| Outside Diameter | 434.340 |
| Mounting Bolt Hole Quantity | 10 |
| Height | 179.8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 |
| Bearings Included | No |
| Center Hole Diameter | 194.000 |
| Center Hole Diameter | 7.638 |
| Mounting Bolt Hole Circle Diameter | 249.940 |
| Mounting Bolt Hole Circle Diameter | 9.840 |
| Mounting Bolt Hole Diameter | 0.625 |
| Disc Mounting [cntrc] | Behind the hub |
| Hub Hole/Whl Reg mm | 194.1 |
| Misc Holes [cntrc] | 0 |
| Mounting Type | Behind the hub |
| Notes [cntrc] | U shaped |
This part fits 0 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
1137986121.860051531114573218Q14474130856050F56050P611457621672641145776604AMR2213NATR434180194BWK021959E125-91-010E12591010II37986K021959M44D76604SSR926
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
