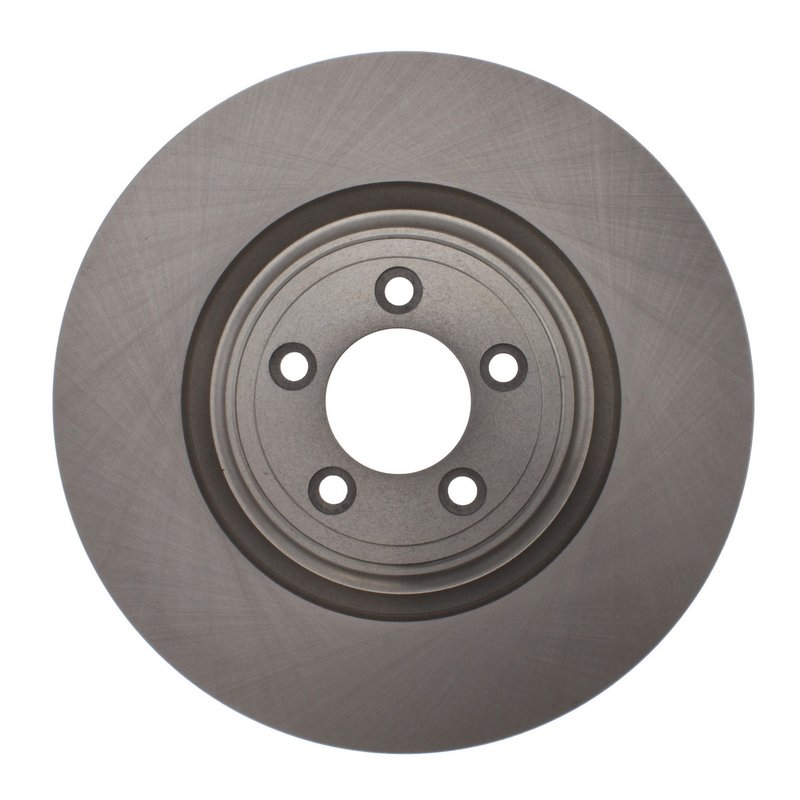

Centric 121.20024 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.20024

The Centric C-TEK Standard Disc Brake Rotor 121.20024 is engineered for reliable braking performance on select Jaguar models. Designed to meet OEM specifications, this vented rotor provides consistent stopping power and durability for vehicles like the Jaguar F-Type, XJ, and XK.

• Compatible with Jaguar F-Type, S-Type, Super V8, XF, XJ, XJR, XK, and XKR models
• Part number 121.20024 ensures precise fitment and quality
• Vented disc design for improved heat dissipation
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.181 inches (30.000 mm)
• Overall height of 1.906 inches (48.400 mm) and outside diameter of 13.976 inches (355.000 mm)
• Floating disc mounting with straight vane style for efficient cooling
• Solid smooth surface type without ABS tone ring included
• Five stud/lug holes with a diameter of 0.551 inches (14.000 mm) and mounting bolt hole circle diameter of 4.252 inches (108.000 mm)
• Weight approximately 26.6 lbs (12.09 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to provide dependable, direct replacement rotors that meet or exceed OEM standards. This product line focuses on delivering rotors with precise dimensions and quality materials to ensure proper fit and function. The 121.20024 rotor exemplifies this approach by offering a vented design that supports heat management and consistent braking performance for Jaguar vehicles.

Detailed Product Description

This Centric disc brake rotor features a vented design with straight vanes that promote effective heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness of 1.260 inches (32.000 mm) and discard thickness of 1.181 inches (30.000 mm) provide a clear service life indicator to maintain safety standards. The smooth surface type ensures even pad contact and wear. With a floating disc mounting and five lug holes, this rotor is engineered for secure installation on compatible Jaguar models. The overall height and outside diameter are optimized for proper alignment and performance within the braking system.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Jaguar F-Type and XJ models
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking consistency for Jaguar XF and XK vehicles
• Restores proper rotor thickness to prevent brake fade and overheating
• Supports safe braking performance on high-performance Jaguar Super V8 and XKR models

Installation Notes and Tips

• Verify rotor dimensions and part number 121.20024 before installation
• Ensure hub surface is clean and free of debris for proper rotor seating
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check brake pads for wear and replace if necessary during rotor installation
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 121.20024 should be confirmed with the supplier, Centric typically offers coverage against defects in materials and workmanship. This rotor is produced to OEM specifications, providing confidence in fitment and function for Jaguar vehicles.
