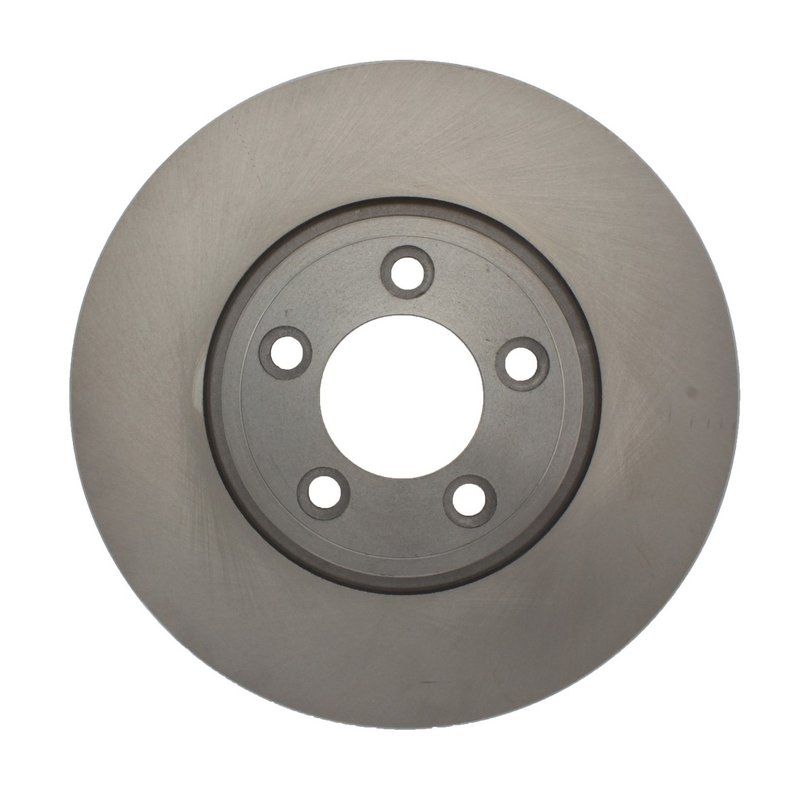

Centric 121.20029 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.20029

The Centric C-TEK Standard Disc Brake Rotor 121.20029 is engineered for reliable braking performance on Jaguar S-Type vehicles. Designed to meet OEM specifications, this vented rotor ensures consistent heat dissipation and smooth braking response.

• Compatible with Jaguar S-Type models
• Part number 121.20029 for precise identification
• Vented disc brake rotor with smooth surface finish
• Nominal thickness of 1.173 inches (29.8 mm) and discard thickness of 1.102 inches (28.0 mm)
• Overall height of 1.819 inches (46.2 mm) and outside diameter of 12.012 inches (305.1 mm)
• Floating disc mounting with straight vane style for effective cooling
• Five stud/lug holes with 0.555 inch (14.1 mm) diameter and 4.252 inch (108 mm) bolt circle diameter

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors manufactured to meet or exceed OEM standards. This product line focuses on providing reliable, direct replacement rotors with precise fitment and consistent performance. The 121.20029 rotor maintains the original equipment specifications for the Jaguar S-Type, including vented design and floating disc mounting, ensuring proper heat management and braking stability.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to optimize airflow and heat dissipation during braking. The rotor’s nominal thickness is 1.173 inches (29.8 mm), with a discard thickness of 1.102 inches (28.0 mm), indicating the minimum thickness before replacement is necessary. The overall height measures 1.819 inches (46.2 mm), and the outside diameter is 12.012 inches (305.1 mm), matching the Jaguar S-Type’s original rotor dimensions. The rotor includes five stud/lug holes with a diameter of 0.555 inches (14.1 mm) arranged on a 4.252 inch (108 mm) bolt circle diameter. The center hole diameter is 2.795 inches (71 mm). This rotor does not include an ABS tone ring or bearings and features a smooth surface type for consistent pad contact.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Jaguar S-Type vehicles
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during extended use
• Restores proper rotor thickness to maintain braking efficiency
• Eliminates noise and vibration related to damaged or undersized rotors

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the discard thickness of 1.102 inches (28.0 mm). Clean the rotor surface and hub mounting area to prevent uneven contact. Use proper torque specifications for the five lug nuts on the 4.252 inch (108 mm) bolt circle. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s existing components. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Disc Brake Rotors to meet OEM quality standards, ensuring durability and consistent performance. While specific warranty details for part number 121.20029 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
