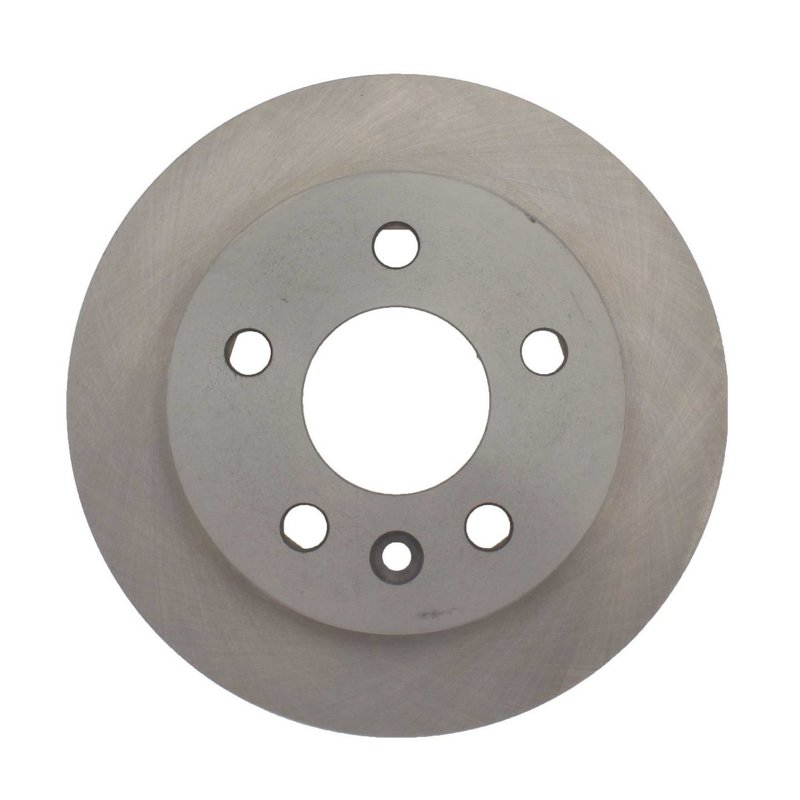

Centric 121.33024 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.33024

The Centric C-TEK Standard Disc Brake Rotor 121.33024 is engineered for reliable braking performance on Volkswagen Vanagon models. Designed as a solid, smooth-surface rotor, it meets precise specifications to ensure consistent stopping power and durability.

• Compatible with Volkswagen Vanagon vehicles
• Part number 121.33024 for exact fitment
• Solid disc brake rotor with smooth surface finish
• Nominal thickness of 0.630 inches (16.000 mm)
• Discard thickness at 0.512 inches (13.000 mm)
• Overall height of 2.264 inches (57.500 mm)
• Outside diameter measuring 10.157 inches (258.000 mm)
• Floating disc mounting design with 5 lug holes
• Weight approximately 12.5 lbs (5.68 kgs)

Detailed Product Specifications

This Centric disc brake rotor features a solid construction with a smooth surface type, optimized for consistent brake pad contact and heat dissipation. The rotor’s nominal thickness is 0.630 inches (16.000 mm), with a discard thickness of 0.512 inches (13.000 mm), indicating when replacement is necessary to maintain safe braking performance. The overall height is 2.264 inches (57.500 mm), and the outside diameter is 10.157 inches (258.000 mm), ensuring proper fitment on Volkswagen Vanagon brake assemblies. The rotor includes a floating disc mounting design and five stud/lug holes with a diameter of 0.616 inches (15.650 mm) arranged on a 4.409 inch (112.000 mm) bolt circle diameter. This rotor does not include an ABS tone ring or bearings.

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers rotors designed to meet or exceed OEM specifications for standard braking applications. This product line focuses on providing reliable, direct replacement rotors with consistent dimensions and quality materials. The 121.33024 rotor is part of this line, delivering dependable performance for Volkswagen Vanagon vehicles requiring solid rotors with smooth surfaces.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Resolving uneven brake pad wear due to rotor surface issues
• Improving braking consistency on Volkswagen Vanagon models
• Restoring proper rotor dimensions for safe brake operation

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets nominal specifications
• Clean rotor surface to remove any protective coatings or debris
• Check compatibility with existing brake pads and hardware
• Torque lug nuts to manufacturer specifications for secure mounting
• Inspect related brake components during installation for wear or damage

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards, ensuring dimensional accuracy and material integrity. While specific warranty details for part number 121.33024 should be confirmed with the supplier, Centric generally provides coverage against defects in materials and workmanship under normal use conditions.
