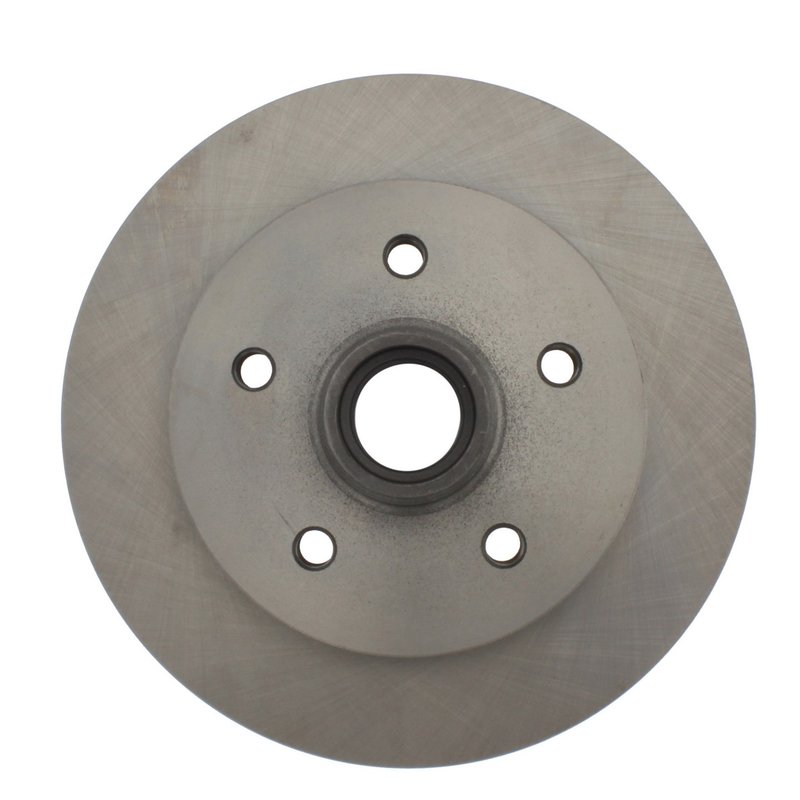

Centric 121.33027 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Disc Brake Rotor 121.33027

The Centric C-TEK Standard Disc Brake Rotor 121.33027 is engineered for reliable braking performance on Volkswagen Vanagon models. Designed as a solid rotor with a smooth surface, this part ensures consistent stopping power and durability for your vehicle's braking system.

• Compatible with Volkswagen Vanagon
• Part number: 121.33027
• Solid disc brake rotor with smooth surface
• Outside diameter: 10.157 inches (258 mm)
• Nominal thickness: 0.630 inches (16 mm)
• Discard thickness: 0.512 inches (13 mm)
• Overall height: 3.760 inches (95.5 mm)
• 5 lug holes with 1.5 mm bolt thread pitch
• Center hole diameter: 2.441 inches (62 mm)
• Weight: 17.28 lbs (7.85 kgs)
• Does not include ABS tone ring or bearings

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for standard braking applications. These rotors are designed to meet or exceed OEM specifications, providing dependable performance for vehicles like the Volkswagen Vanagon. The solid rotor design and smooth surface finish help maintain consistent brake pad contact and reduce noise, making them suitable for everyday driving conditions.

Technical Specifications and Features

This disc brake rotor features a solid construction with a smooth surface type, optimized for Volkswagen Vanagon brake systems. The rotor measures 10.157 inches (258 mm) in outside diameter and has a nominal thickness of 0.630 inches (16 mm), with a discard thickness of 0.512 inches (13 mm) indicating when replacement is necessary. The overall height is 3.760 inches (95.5 mm), and it mounts using five lug holes with a 1.5 mm bolt thread pitch and a 4.409 inch (112 mm) bolt hole circle diameter. The center hole diameter is 2.441 inches (62 mm). This rotor does not include an ABS tone ring or bearings, so those components must be sourced separately if required.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volkswagen Vanagon
• Resolves brake pulsation and vibration issues
• Addresses reduced braking efficiency due to rotor wear
• Eliminates noise caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coatings or debris
• Check compatibility with existing hub and bearing components
• Torque lug nuts to manufacturer specifications for Volkswagen Vanagon
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. It is recommended to verify warranty terms with the supplier or manufacturer documentation.
