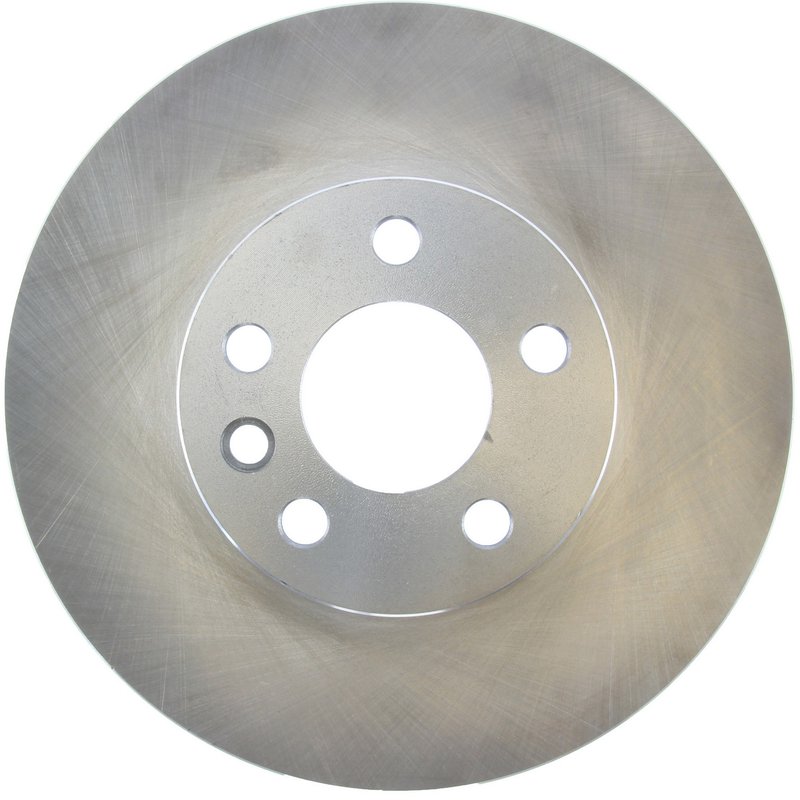

Centric 121.33075 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Volkswagen Sharan

The Centric C-TEK Standard Disc Brake Rotor 121.33075 is engineered to meet the braking demands of Volkswagen Sharan vehicles. Designed with precision, this vented rotor ensures consistent performance and durability under various driving conditions.

• Compatible with Volkswagen Sharan models
• Part Number: 121.33075 for accurate fitment
• Vented disc design for improved heat dissipation
• Nominal thickness of 1.024 inches (26.000 mm)
• Outside diameter of 11.811 inches (300.000 mm)
• Overall height of 2.205 inches (56.000 mm)
• Floating disc mounting for enhanced rotor stability
• Smooth surface type for consistent pad contact
• Five stud/lug holes with 0.650 inch (16.500 mm) diameter

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric offers a balance of quality and value for standard braking applications. These rotors are manufactured to meet or exceed OEM specifications, providing reliable stopping power and consistent performance. The 121.33075 rotor features a vented design with straight vanes to optimize cooling and reduce brake fade, making it suitable for everyday driving conditions on Volkswagen Sharan vehicles.

Technical Specifications and Features

This Centric rotor has a nominal thickness of 1.024 inches (26.000 mm) and a discard thickness of 0.866 inches (22.000 mm), ensuring a clear service life indicator for replacement. The rotor’s outside diameter measures 11.811 inches (300.000 mm), with an overall height of 2.205 inches (56.000 mm). It includes a floating disc mounting system and a smooth surface type to maintain consistent brake pad contact. The rotor is vented with straight vanes to enhance heat dissipation during braking. It features five stud/lug holes with a diameter of 0.650 inches (16.500 mm) and a mounting bolt hole circle diameter of 4.409 inches (112.000 mm). The center hole diameter is 2.677 inches (68.000 mm), and the rotor weighs approximately 19 lbs (8.64 kgs).

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volkswagen Sharan
• Addresses brake fade caused by overheating during extended use
• Resolves vibration or pulsation issues from uneven rotor surfaces
• Improves braking consistency and pedal feel
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness of 0.866 inches (22.000 mm) to maintain safety standards. Use proper torque specifications for the five lug nuts to avoid rotor warping. This rotor does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle’s braking system. It is recommended to replace brake pads simultaneously for optimal performance.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Disc Brake Rotors to meet or exceed OEM standards, ensuring reliable performance and durability. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
