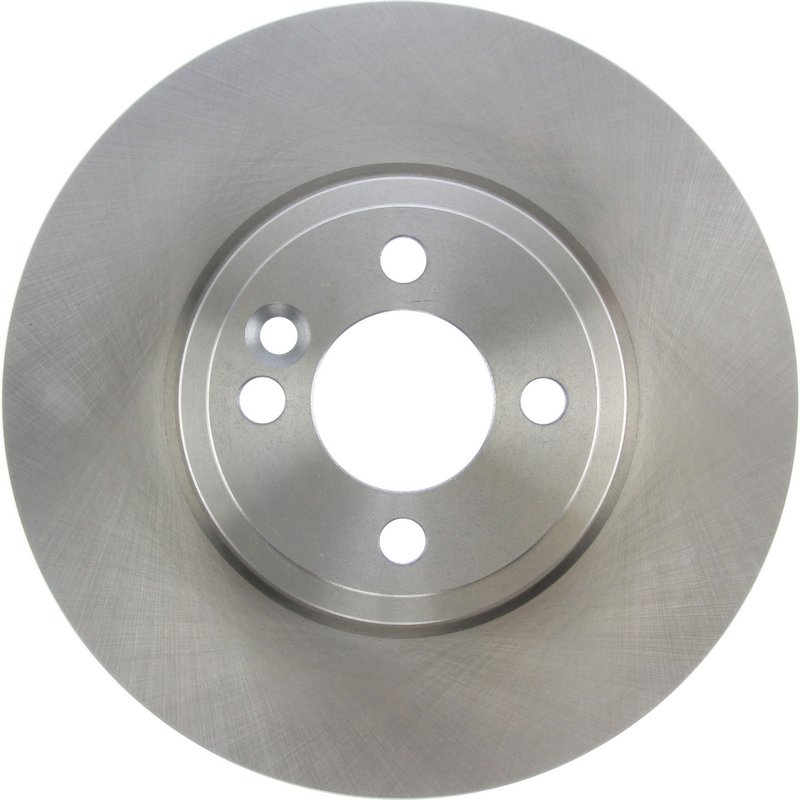

Centric 121.34101 Disc Brake Rotor - Front
| Brand | Centric 121.34101 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.524 |
| Center Hole Diameter | 64.100 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 0.803 |
| Discard Thickness | 20.400 |
| Hat ID [cntrc] in | 5.528 |
| Hat ID [cntrc] mm | 140.400 |
| Misc Holes [cntrc] | 1 |
| Mounting Bolt Hole Circle Diameter | 3.937 |
| Mounting Bolt Hole Circle Diameter | 100.000 |
| Nominal Thickness | 0.862 |
| Nominal Thickness | 21.900 |
| Outside Diameter | 11.575 |
| Outside Diameter | 294.000 |
| Overall Height | 1.760 |
| Overall Height | 44.700 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.638 |
| Stud/Lug Hole Diameter | 16.200 |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 7.050 |
| Weight [cntrc] lbs | 15.500 |
| Product line | C-TEK Standard Disc Brake Rotors |
| Fits | Mini · 23 vehicles |
Vented design. Helps move heat away for more consistent braking performance.
Smooth surface. Provides a clean contact area for dependable pad engagement.
Standard disc rotor. A value-focused replacement for a wide range of applications.
Cross-references Nissens 850078, Parts Authority PRT5927 and Raybestos Brakes 980605R for the same application. See all 9.
Centric C-TEK Front Brake Rotor
The Centric C-TEK Standard Disc Brake Rotor, part number 121.34101, is a front replacement rotor for select Mini Cooper applications. It combines a smooth surface, vented construction, and OE-style dimensions to support consistent braking performance and service life.
Built for 2008-2015 Mini Cooper front brake applications, this rotor matches key fitment details including a 294 mm outside diameter, 4-lug bolt pattern, and straight vane design. The C-TEK Standard Disc Brake Rotors line focuses on practical value for everyday driving while maintaining the dimensional accuracy needed for proper brake service.
Key Features
- Part number 121.34101 for select Mini Cooper front brake applications
- Vented rotor design with straight vanes for heat management
- Smooth surface finish for standard brake service
- 294.000 mm outside diameter and 11.575 in overall diameter
- 4-lug pattern with 100.000 mm bolt circle diameter
- Floating disc mounting and 64.100 mm center hole diameter
- Fits front positions on 2008-2015 Mini Cooper models listed below
Product Line Details
Centric’s C-TEK Standard Disc Brake Rotors line is positioned as a practical OE-style replacement option for drivers who want dependable fit and everyday braking performance. For Mini Cooper front rotor service, this line emphasizes correct dimensions, stable operation, and value across a wide range of applications.
Detailed Description
This Centric brake rotor is engineered with a nominal thickness of 21.900 mm and a discard thickness of 20.400 mm, helping technicians evaluate rotor wear during service. The vented, straight-vane design supports airflow through the rotor, while the smooth surface provides a conventional braking contact area for standard pad replacement work. The rotor also measures 44.700 mm in overall height and uses a floating disc mounting style.
Fits 2014-2015 Mini Cooper, front. Fits 2011 Mini Cooper, front. Fits 2009-2010 Mini Cooper, front. Fits 2008 Mini Cooper, front. This part cross-references Raybestos Brakes 980605R for the same application.
Common Brake Service Issues
- Front brake pulsation caused by rotor wear or thickness variation
- Brake noise related to uneven rotor surfaces
- Reduced braking consistency from overheated or worn front rotors
- Service failures tied to incorrect rotor dimensions or bolt pattern
- Brake vibration during stops on Mini Cooper front axle applications
Installation Notes and Tips
Verify rotor diameter, center hole diameter, bolt circle, and caliper clearance before installation. This rotor is for front use only and does not include bearings or an ABS tone ring. Always inspect pads, calipers, and hub surfaces during brake service, and confirm the vehicle matches the listed Mini Cooper fitment by year and brake configuration.
Quality Assurance
Centric markets the C-TEK Standard Disc Brake Rotors line for dependable performance, service life, and value across everyday brake applications. Part number 121.34101 is built to match the listed fitment and dimensional requirements for the specified Mini Cooper front rotor applications.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Mini | Cooper | Roadster S | Convertible | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2015 | Mini | Cooper | Coupe S | Coupe | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | S | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | S Clubman | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | Roadster S | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | John Cooper Works Clubman | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | Coupe S | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2014 | Mini | Cooper | Coupe John Cooper Works | — | Front | 294mm Front Disc; 4 Lug; Single Piston Front Calipers; C-TEK Standard Disc Brake Rotors |
| 2011 | Mini | Cooper | S | — | Front | 294mm Standard Front Disc; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2010 | Mini | Cooper | S | — | Front | 294mm Standard Disc; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2010 | Mini | Cooper | S Clubman | — | Front | 294mm Standard Disc; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2010 | Mini | Cooper | Clubman | — | Front | 294mm Standard Disc; JCW Brakes; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2010 | Mini | Cooper | Base | — | Front | 294mm Standard Disc; JCW Brakes; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2009 | Mini | Cooper | S | — | Front | 294mm Standard Disc; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2009 | Mini | Cooper | S Clubman | — | Front | 294mm Standard Disc; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2009 | Mini | Cooper | Clubman | — | Front | 294mm Standard Disc; JCW Brakes; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2009 | Mini | Cooper | Base | — | Front | 294mm Standard Disc; JCW Brakes; Single Piston Front Caliper; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | S | Hatchback | Front | 294mm Standard Disc; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | S | Convertible | Front | 294mm Standard Disc; JCW Brakes; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | S Clubman | Wagon | Front | 294mm Standard Disc; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | Clubman | Wagon | Front | 294mm Standard Disc; JCW Brakes; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | Base | Hatchback | Front | 294mm Standard Disc; JCW Brakes; C-TEK Standard Disc Brake Rotors |
| 2008 | Mini | Cooper | Base | Convertible | Front | 294mm Standard Disc; JCW Brakes; C-TEK Standard Disc Brake Rotors |
