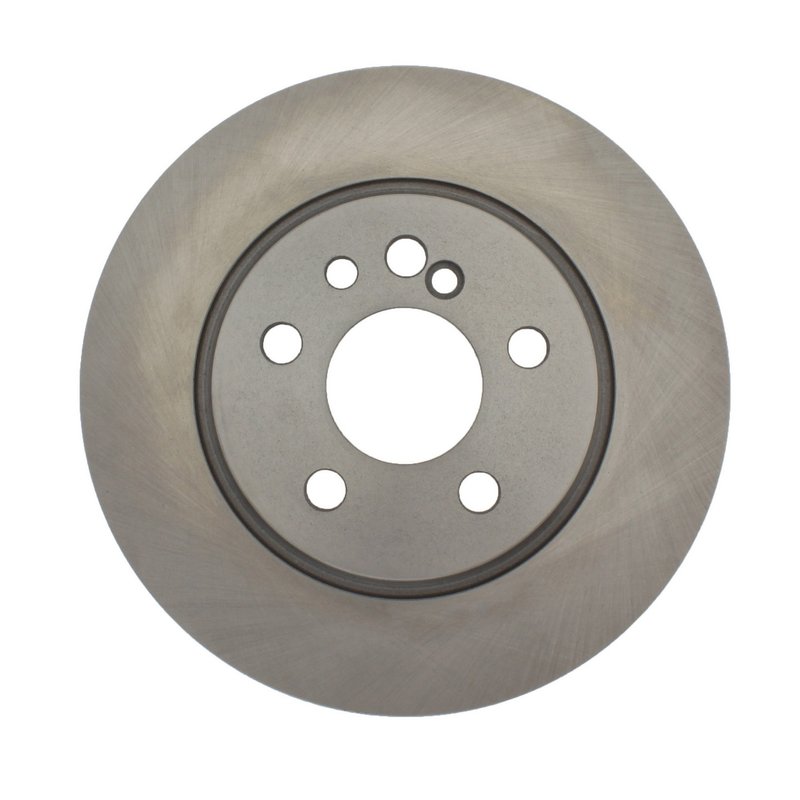

Centric 121.35024 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Mercedes-Benz Models

The Centric C-TEK Standard Disc Brake Rotor 121.35024 is engineered to meet the braking demands of select Mercedes-Benz vehicles. Designed for durability and consistent performance, this vented rotor provides effective heat dissipation and smooth braking for models like the 400SE, 500SEL, and S600.

• Compatible with Mercedes-Benz 400SE, 400SEL, 500SEC, 500SEL, 600SEC, 600SEL, CL500, CL600, S420, S500, and S600
• Part number 121.35024 ensures precise fitment and quality
• Vented rotor design with straight vane style for improved cooling
• Nominal thickness of 0.866 inches (22.000 mm) and discard thickness of 0.764 inches (19.400 mm)
• Overall height of 2.362 inches (60.000 mm) and outside diameter of 11.811 inches (300.000 mm)
• Five lug holes with a 4.409 inch (112.000 mm) bolt circle diameter
• Center hole diameter of 2.638 inches (67.000 mm) for accurate mounting
• Solid smooth surface type for consistent pad contact
• Floating disc mounting with two miscellaneous holes for secure installation
• Weight approximately 16.27 lbs (7.4 kgs)

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to provide dependable braking performance with a focus on OEM specifications. These rotors feature vented construction to enhance heat dissipation and reduce brake fade during extended use. The smooth surface finish ensures even pad wear and quiet operation, making them suitable for daily driving and highway conditions. The 121.35024 rotor is part of this line, offering a balance of quality and value for Mercedes-Benz vehicles requiring precise replacement parts.

Technical Details and Specifications

This disc brake rotor features a vented design with straight vanes that promote airflow and cooling, helping maintain braking efficiency under stress. The nominal thickness of 0.866 inches (22.000 mm) and discard thickness of 0.764 inches (19.400 mm) provide clear service limits for maintenance. The rotor’s overall height is 2.362 inches (60.000 mm), and it measures 11.811 inches (300.000 mm) in outside diameter, matching factory dimensions for proper fitment. The five lug holes with a 4.409 inch (112.000 mm) bolt circle diameter and a center hole diameter of 2.638 inches (67.000 mm) ensure compatibility with the specified Mercedes-Benz models. This rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking performance due to rotor thickness below discard limits
• Eliminating noise and vibration from uneven rotor surfaces
• Improving heat dissipation to prevent brake fade on Mercedes-Benz 400SE and S600 models
• Restoring proper rotor dimensions for safe and reliable braking

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is within nominal specifications and above discard thickness limits. Use proper torque specifications for lug nuts to avoid rotor warping. This rotor is designed for floating disc mounting and requires alignment with the two miscellaneous holes for secure fitment. Bearings and ABS tone rings are not included and should be reused or replaced separately as needed.

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. Each rotor undergoes quality inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official warranty policy for complete information.
