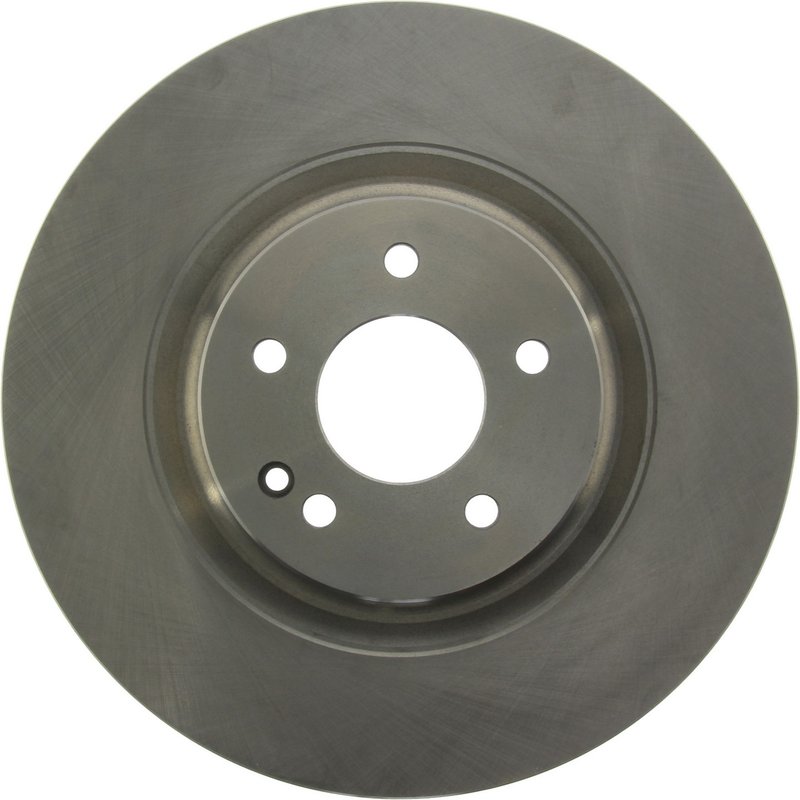

Centric 121.35046 Disc Brake Rotor - Front or Rear

Overview of Centric C-TEK Standard Disc Brake Rotor 121.35046

The Centric C-TEK Standard Disc Brake Rotor 121.35046 is engineered for reliable braking performance on Mercedes-Benz SL500 and SL600 models. Designed as a vented rotor with a smooth surface, it offers consistent heat dissipation and durability for these specific vehicles.

• Compatible with Mercedes-Benz SL500 and SL600
• Part number: 121.35046
• Vented disc brake rotor with curved vane style for improved cooling
• Nominal thickness of 1.260 inches (32.000 mm) and discard thickness of 1.181 inches (30.000 mm)
• Overall height of 2.028 inches (51.500 mm) and outside diameter of 13.150 inches (334.000 mm)
• Floating disc mounting with 5 lug holes, 0.524 inch (13.300 mm) diameter each
• Center hole diameter of 2.638 inches (67.000 mm) and mounting bolt hole circle diameter of 4.409 inches (112.000 mm)
• Weight approximately 25.21 lbs (11.46 kgs)
• ABS tone ring not included; bearings not included

Product Line Details: C-TEK Standard Disc Brake Rotors

The C-TEK Standard Disc Brake Rotors line by Centric focuses on providing direct replacement rotors that meet or exceed OEM specifications. This product line emphasizes precise fitment and consistent braking performance, making it suitable for routine maintenance and brake system repairs on vehicles like the Mercedes-Benz SL500 and SL600. The 121.35046 rotor maintains the original equipment’s vented design and smooth surface to ensure proper heat management and rotor longevity.

Technical Description and Specifications

This disc brake rotor features a vented design with curved vanes that enhance airflow and cooling during braking, reducing the risk of brake fade. The rotor’s nominal thickness is 1.260 inches (32.000 mm), with a discard thickness of 1.181 inches (30.000 mm), indicating when replacement is necessary to maintain safe braking. The overall height measures 2.028 inches (51.500 mm), and the outside diameter is 13.150 inches (334.000 mm), matching the original equipment dimensions for the Mercedes-Benz SL500 and SL600. The rotor mounts using a floating disc mounting system with five lug holes, each 0.524 inches (13.300 mm) in diameter, and a mounting bolt hole circle diameter of 4.409 inches (112.000 mm). The center hole diameter is 2.638 inches (67.000 mm). This rotor does not include an ABS tone ring or bearings, so those components must be sourced separately if required.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation or noise
• Restores proper braking performance on Mercedes-Benz SL500 and SL600
• Addresses rotor thickness below discard limits to maintain safety
• Improves heat dissipation to reduce brake fade during extended use
• Suitable for routine brake system maintenance and repairs

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets minimum specifications
• Clean rotor surface and hub mounting area to prevent uneven wear or vibration
• Use proper torque specifications for lug nuts to avoid rotor distortion
• Check compatibility with existing brake pads and hardware
• ABS tone ring and bearings are not included; confirm if replacement is necessary

Quality Assurance and Warranty

Centric’s C-TEK Standard Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 121.35046 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult the product documentation or Centric directly for warranty terms related to this rotor.
