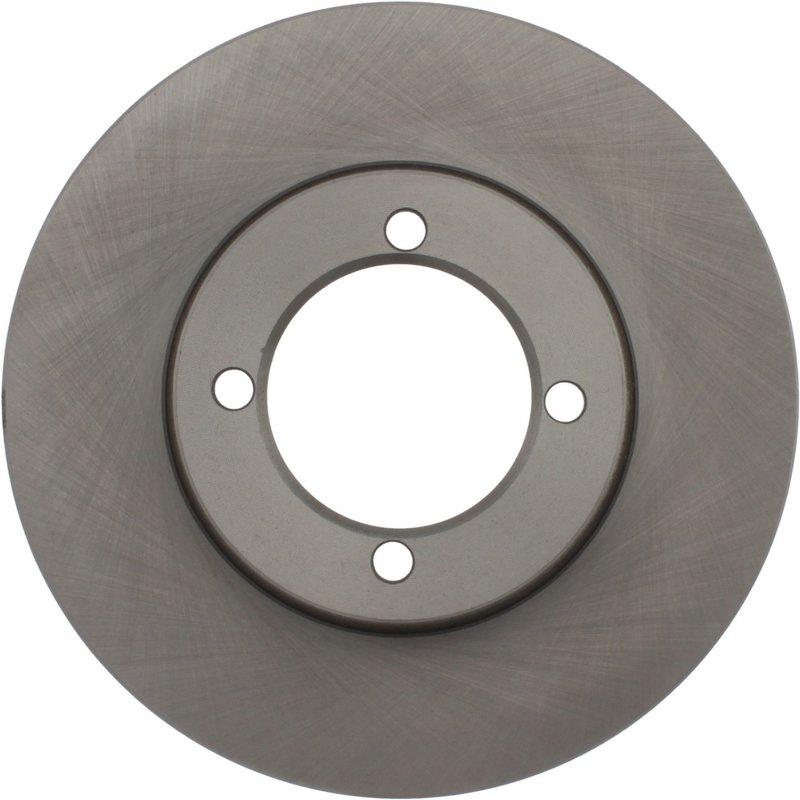

Centric 121.36000 Disc Brake Rotor - Front

Reliable Centric C-TEK Standard Disc Brake Rotor Overview

The Centric C-TEK Standard Disc Brake Rotor 121.36000 offers a solid, smooth-surfaced braking solution designed for precise fitment and dependable performance. Engineered for vehicles requiring a 4-bolt mounting pattern and a solid rotor design, this part supports consistent braking response and durability.

• Solid disc brake rotor with smooth surface finish
• Outside diameter of 238 mm (9.370 inches)
• Nominal thickness of 10.900 mm (0.429 inches) with discard thickness at 8.000 mm (0.315 inches)
• Overall height of 55.500 mm (2.185 inches)
• 4 mounting bolt holes with 92 mm (3.622 inches) bolt circle diameter
• Center hole diameter of 73 mm (2.874 inches)
• Weight approximately 8.29 lbs (3.77 kgs)
• Disc mounted behind the hub, no ABS tone ring included

About the C-TEK Standard Disc Brake Rotors Line

The C-TEK Standard Disc Brake Rotors line by Centric is designed to provide reliable, OEM-quality replacement rotors that meet or exceed factory specifications. This product line focuses on solid rotors with smooth surfaces, suitable for vehicles that require straightforward, dependable braking components without additional features like venting or ABS tone rings. The 121.36000 rotor fits within this line, offering consistent thickness and precise dimensions for proper fitment and performance.

Detailed Product Description and Specifications

This Centric disc brake rotor features a solid construction with a smooth surface type, ideal for vehicles that do not require vented rotors or ABS tone rings. The rotor’s outside diameter measures 238 mm (9.370 inches), with a nominal thickness of 10.900 mm (0.429 inches) and a discard thickness of 8.000 mm (0.315 inches), ensuring a clear service limit for safe operation. The overall height is 55.500 mm (2.185 inches), and it mounts behind the hub using four bolt holes arranged on a 92 mm (3.622 inches) bolt circle diameter. The center hole diameter is 73 mm (2.874 inches), matching specific vehicle hub dimensions. Weighing approximately 8.29 lbs (3.77 kgs), this rotor balances durability and ease of installation.

Common Applications and Problem Solving

• Replacement for worn or warped disc brake rotors
• Restores braking performance on vehicles with solid rotor requirements
• Addresses brake pulsation caused by uneven rotor thickness
• Suitable for vehicles needing a 4-bolt mounting pattern with 92 mm bolt circle diameter
• Ideal for models without ABS tone ring requirements

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (8.000 mm) before installation
• Clean mounting surfaces and hub to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check compatibility with vehicle make and model based on bolt pattern and rotor dimensions
• Replace brake pads when installing new rotors for optimal braking performance

Quality Assurance and Warranty

Centric C-TEK Standard Disc Brake Rotors are manufactured to meet strict quality standards, ensuring consistent thickness and dimensional accuracy. While specific warranty details for part number 121.36000 are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
