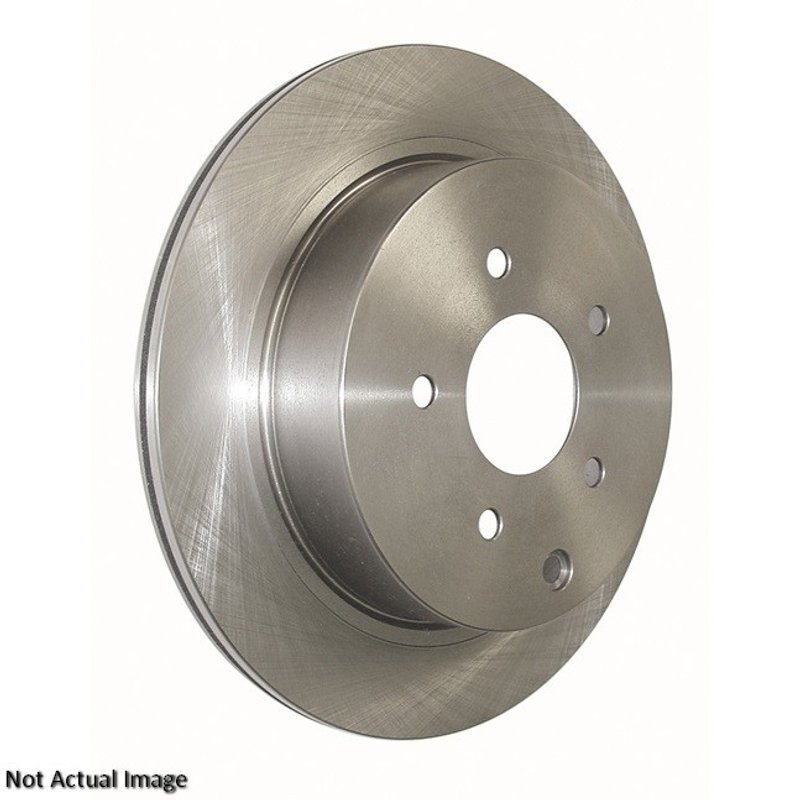

Centric 121.39062 Disc Brake Rotor - Front

Front Brake Rotor for Volvo XC40

Centric C-TEK Standard Disc Brake Rotor 121.39062 is a front vented rotor built for 2019-2023 Volvo XC40 applications with a 296 mm front disc specification. It is engineered for dependable braking performance, consistent service life, and practical value in everyday driving.

Key Features

• Centric C-TEK Standard Disc Brake Rotors line
• Part number 121.39062
• Front position rotor for Volvo XC40
• 296 mm outside diameter
• Vented rotor design with straight vanes
• Smooth surface type
• 5-lug pattern with 108 mm bolt circle diameter
• Floating disc mounting design
• No ABS tone ring included

Product Details

This Centric brake rotor is built with a nominal thickness of 25.000 mm and a discard thickness of 22.000 mm, giving it the dimensions needed for proper front brake service on the Volvo XC40. The rotor uses a vented construction with straight vane styling to support heat management during repeated stops, while the smooth friction surface helps provide consistent pad contact. The 63.600 mm center hole diameter, 138.900 mm hat ID, and 48.300 mm overall height are important fitment details for matching the original brake setup. If you are searching for a front brake rotor for 2019-2023 Volvo XC40, part number 121.39062 is the correct reference to compare against your vehicle’s brake specifications.

The C-TEK Standard Disc Brake Rotors product line focuses on practical replacement parts for a wide range of applications, combining service life and value in a straightforward OE-style format. This part cross-references Walker Exhaust 45993 for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation caused by worn or uneven front rotors
• Reduced braking consistency from rotor wear beyond discard thickness
• Noise or vibration related to damaged rotor surfaces
• Heat buildup during repeated stops with an aging vented rotor
• Front brake service needs on a Volvo XC40 with a 296 mm disc setup

Installation Notes and Tips

Verify rotor diameter, center hole, bolt circle, and hat height before installation. This rotor is listed for the front position on 2019, 2020, 2021, 2022, and 2023 Volvo XC40 models, including 2020-2021 vehicles with the noted chassis breakpoints. Inspect pads, calipers, and hub surfaces during service, and confirm the rotor surface is clean before bedding in new pads. Part number 121.39062 should be matched to the vehicle’s brake specification before installation.

Quality Assurance

Centric positions the C-TEK Standard Disc Brake Rotors line as a value-focused replacement option with attention to performance and service life. This rotor is built to the listed dimensional specifications for the confirmed Volvo XC40 fitment.
